Category
Diodes - Rectifiers - Single
Manufacturer
Electro-Films (EFI) / Vishay
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

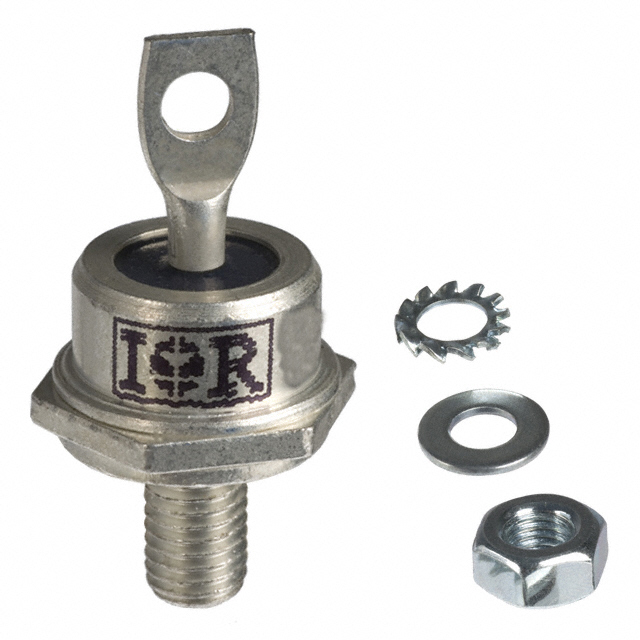

| Part Number: | VS-1N1190 |
| Description: | DIODE GEN PURP 600V 35A DO203AB |
| Lead Free Status / RoHS Status: | |
| Package / Case | DO-203AB, DO-5, Stud |
| Series | - |
| Mounting Type | Chassis, Stud Mount |
| Supplier Device Package | DO-203AB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 110A |
| Other Names | *1N1190 1N1190 1N1190-ND |
| Meta Part Number | VS-1N1190-ND |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Packaging | Bulk |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Standard |
| Capacitance @ Vr, F | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Manufacturer Standard Lead Time | 17 Weeks |
| Base Part Number | 1N1190 |
| Detailed Description | Diode Standard 600V 35A Chassis, Stud Mount DO-203AB |
| Current - Average Rectified (Io) | 35A |
| Operating Temperature - Junction | -65°C ~ 190°C |
| Current - Reverse Leakage @ Vr | 10mA @ 600V |
Data sheet: Work in prgress, stay tuned!
