Category
PMIC - Power Distribution Switches, Load Drivers
Manufacturer
STMicroelectronics
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

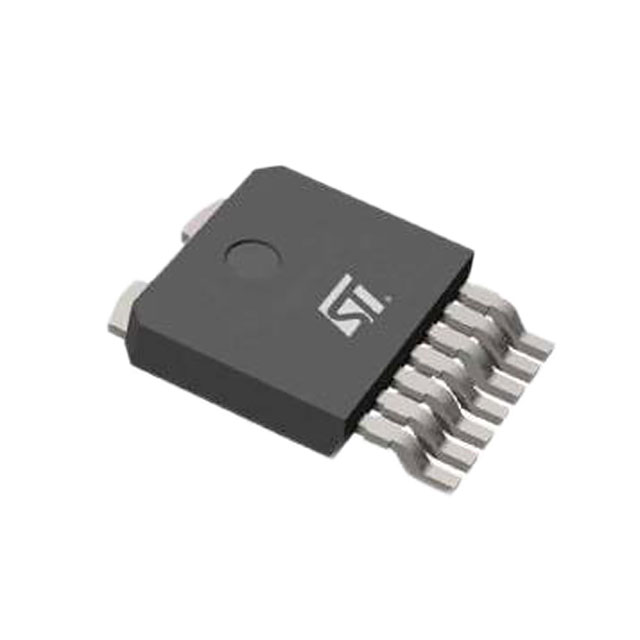

| Part Number: | VN7004CHTR |
| Description: | IC PWR SWITCH N-CHAN OCTAPAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Meta Part Number | 497-16865-2-ND |
| Current - Output (Max) | 80A |
| Features | - |
| Output Type | N-Channel |
| Rds On (Typ) | 4 mOhm |
| Supplier Device Package | OctaPAK 7+1 |
| Other Names | 497-16865-2 |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Package / Case | OctaPAK (7 leads + Tab) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | Automotive, AEC-Q100 |
| Ratio - Input:Output | 1:1 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Switch Type | General Purpose |
| Output Configuration | High Side |
| Packaging | Tape & Reel (TR) |
| Number of Outputs | 1 |
| Interface | On/Off |
| Voltage - Load | 4 V ~ 28 V |
| Input Type | Non-Inverting |
Data sheet: Work in prgress, stay tuned!
