Category
Thyristors - SCRs - Modules
Manufacturer
IXYS / Littelfuse
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

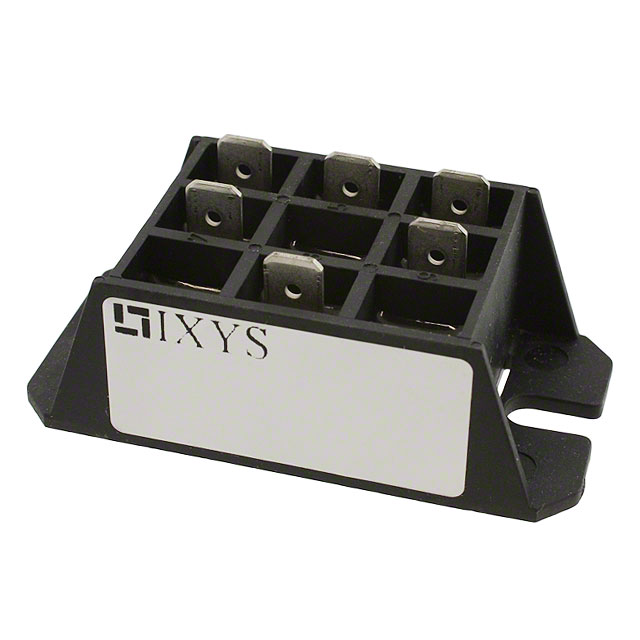

| Part Number: | VHF28-12IO5 |
| Description: | RECT BRIDGE 1PH 1200V FO-F-A |
| Lead Free Status / RoHS Status: | |
| Mounting Type | Chassis Mount |
| Voltage - Gate Trigger (Vgt) (Max) | 1V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Gate Trigger (Igt) (Max) | 65mA |
| Base Part Number | VHF28 |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300A, 330A |
| Meta Part Number | VHF28-12IO5-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Bulk |
| Series | - |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes |
| Other Names | VHF 28 - 12 IO5 VHF2812IO5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Hold (Ih) (Max) | 100mA |
| Voltage - Off State | 1.2kV |
| Package / Case | FO-F-A |
| Current - On State (It (AV)) (Max) | 28A |
| Detailed Description | SCR Module 1.2kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount FO-F-A |
| Manufacturer Standard Lead Time | 32 Weeks |
Data sheet: Work in prgress, stay tuned!
