Category
Embedded - Microcontrollers
Manufacturer
Renesas Electronics Corporation
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

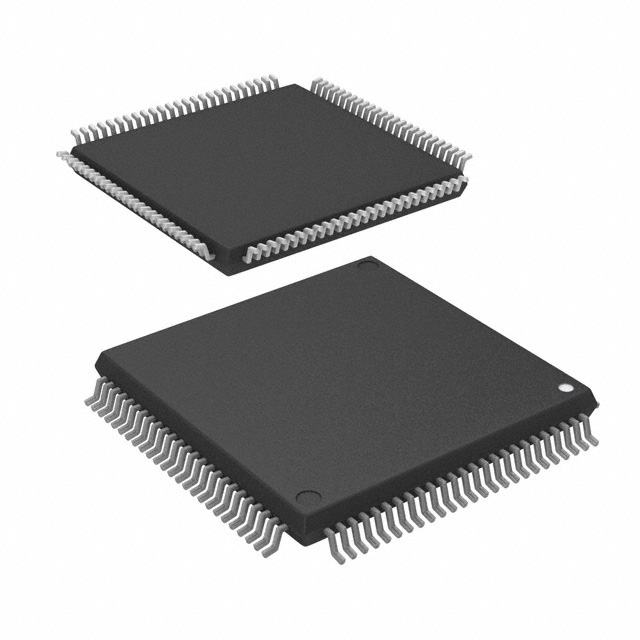

| Part Number: | UPD78F1166AGC-UEU-AX |
| Description: | IC MCU 16BIT 256KB FLASH 100LQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description | 78K/0R 78K0R/Kx3 Microcontroller IC 16-Bit 20MHz 256KB (256K x 8) FLASH |
| Connectivity | 3-Wire SIO, I²C, LINbus, UART/USART |
| RAM Size | 12K x 8 |
| Program Memory Size | 256KB (256K x 8) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| EEPROM Size | - |
| Series | 78K0R/Kx3 |
| Package / Case | 100-LQFP |
| Core Processor | 78K/0R |
| Program Memory Type | FLASH |
| Number of I/O | 83 |
| Speed | 20MHz |
| Packaging | Tray |
| Oscillator Type | Internal |
| Meta Part Number | UPD78F1166AGC-UEU-AX-ND |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 5.5 V |
| Data Converters | A/D 16x10b; D/A 2x8b |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Data sheet: Work in prgress, stay tuned!
