Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Taiwan Semiconductor
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

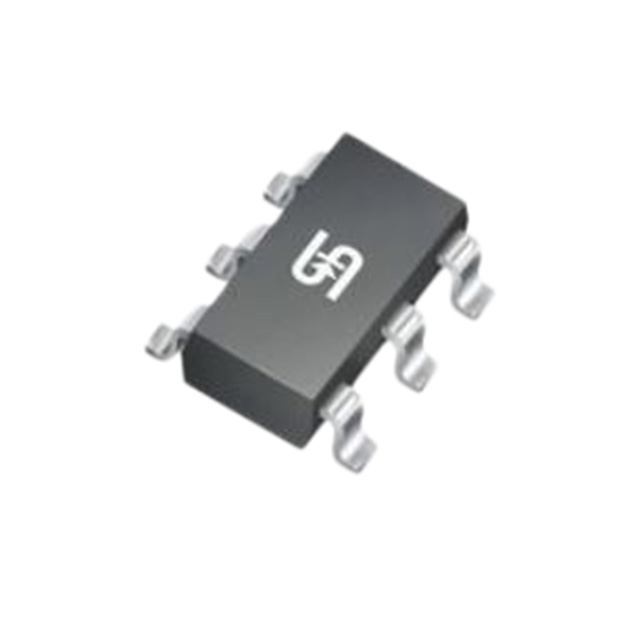

| Part Number: | TSM4800N15CX6 RFG |
| Description: | MOSFET N-CH 150V 1.4A SOT26 |
| Lead Free Status / RoHS Status: | |
| Detailed Description | N-Channel 150V 1.4A (Tc) 2.1W (Tc) Surface Mount SOT-26 |
| FET Type | N-Channel |
| Packaging | Cut Tape (CT) |
| Meta Part Number | TSM4800N15CX6RFGCT-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 10V |
| Package / Case | SOT-23-6 |
| Rds On (Max) @ Id, Vgs | 480 mOhm @ 1.1A, 10V |
| Series | - |
| Other Names | TSM4800N15CX6 RFGCT TSM4800N15CX6 RFGCT-ND TSM4800N15CX6RFGCT |
| Vgs (Max) | ±20V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Input Capacitance (Ciss) (Max) @ Vds | 332pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Tc) |
| Supplier Device Package | SOT-26 |
| Drain to Source Voltage (Vdss) | 150V |
| FET Feature | - |
| Manufacturer Standard Lead Time | 14 Weeks |
| Technology | MOSFET (Metal Oxide) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Power Dissipation (Max) | 2.1W (Tc) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Data sheet: Work in prgress, stay tuned!
