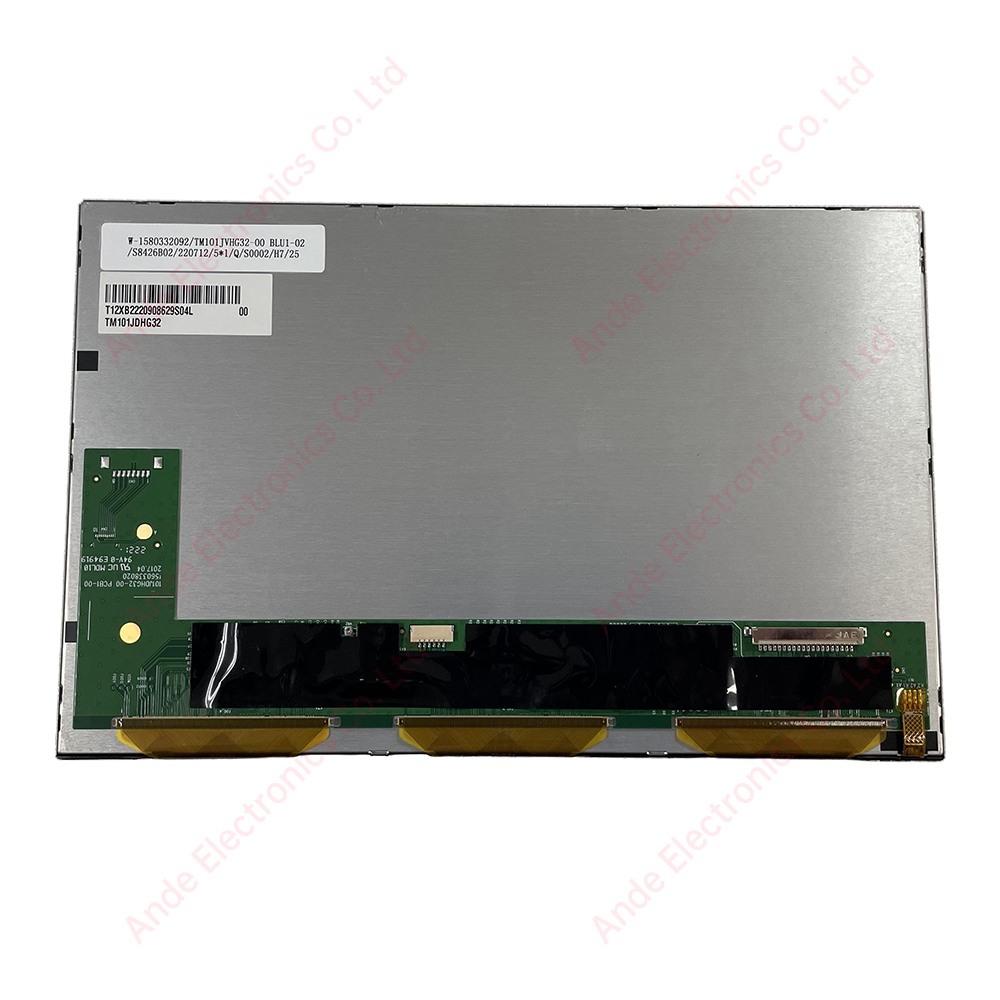

TM101JDHG32

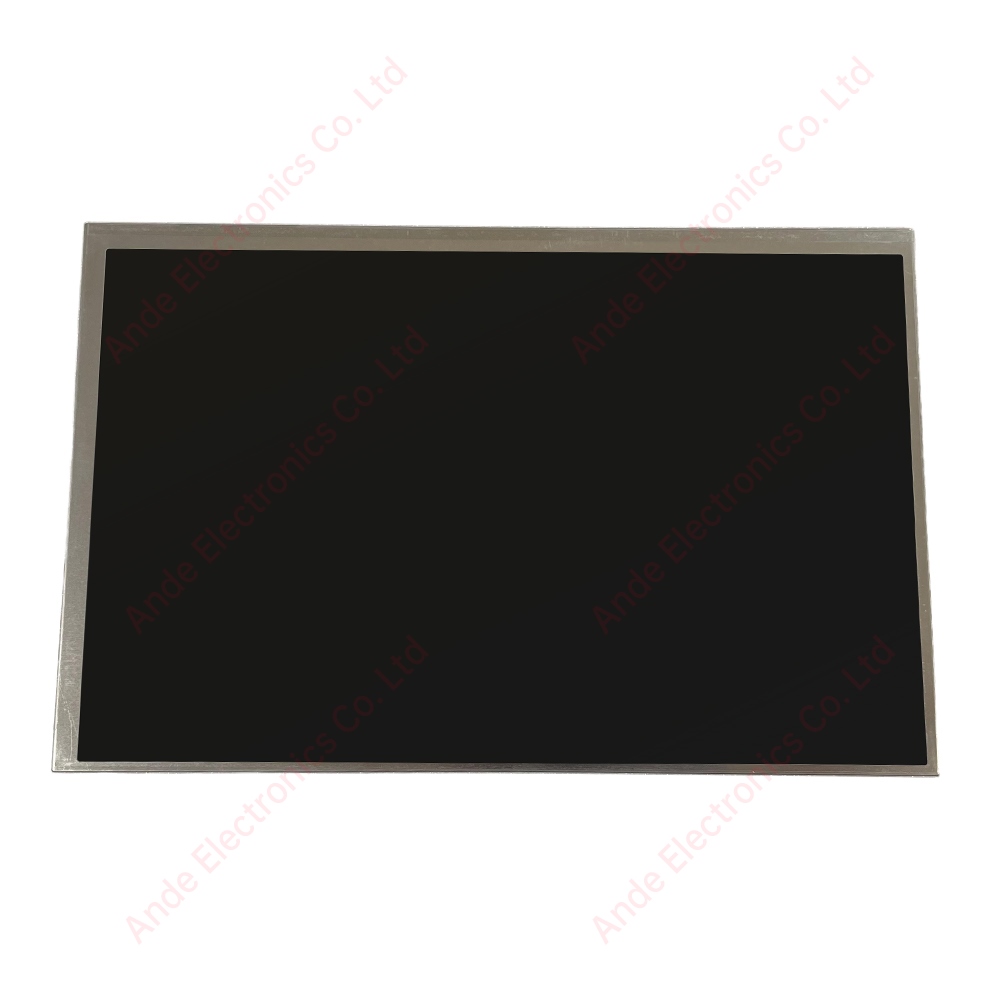

TM101JDHG32
TM101JDHG32
TM101JDHG32
TM101JDHG32
  • Tianma TM101JDHG32
  • Tianma TM101JDHG32
  • Tianma TM101JDHG32
  • Tianma TM101JDHG32
  • Tianma TM101JDHG32
TM101JDHG32
Size
10.1"
Resolution
1280×800
CR
700:1
Brightness
1000
Interface
LVDS
Max Ratings
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Certification
ISO14001:2015 Certification ISO 45001:2018 Certification ISO 9001:2015 Certification
Delivery
Delivery
Payment
Payment

{{title}}
Price not available? Fill in the information below to send a quick RFQ, and we will respond promptly
{{ isClicked ? 'Submitted' : 'Submit RFQ' }}

TM101JDHG32 10.1-Inch Industrial TFT LCD Display Module

The TM101JDHG32 display module offers sharp visuals in a compact 10.1-inch format, delivering 1280x800 resolution for crisp images. Its industrial-grade design ensures stable performance across a wide temperature range, making it ideal for embedded systems, control panels, kiosks, and medical devices. With LVDS interface support and standardized mounting dimensions, integration is straightforward for a variety of industrial and commercial applications.

Specifications
Data Sheet
Advantages
Solutions

1.Decades of Experience

Supplying LCD displays since 1998, ANDE Electronics has built extensive expertise and a reliable network of manufacturers, ensuring high-quality components and solutions.

2.Wide Inventory

We stock LCD displays ranging from 1.3’’ to 65’’, ready for immediate delivery to meet both small-scale and large-scale project needs.

3.Hard-to-Find LCD Stock

Discontinued modules are often difficult to source. ANDE Electronics provides access to hard-to-find LCD stock, helping clients complete projects without delays.

4.Solution Support

Our team assists with LCD screen selection and integration, offering guidance to make sure the right display fits your project requirements.

5.Technical Services

We offer enhancements and add-ons such as touch screen overlays, driver boards, and highlighted features.

6.LCD Touch Sreen Customization

ANDE Electronics provides custom touch solutions, allowing clients to upgrade standard LCD modules with touch functionality tailored to specific applications.

Solutions overview / Healthcare / Manufacturering / New energy / Enterprise

Medical display solutions (12.1"/15"/17"/19"/21.5")

Panel size: 12.1 inches, 15.0 inches, 17.0 inches, 19.0 inches, 21.5 inches

Resolution: 800*600, 640*480, 1024*768

Brightness: 350nit, 400nit, 500nit, 600nit, 700nit

Supported colors: 262K/16.7M 262K/16.2M

Working temperature: -30 ~70°C -20 ~70°C 0 ~ 50 °C

Touch mode: Resistive screen

Interface: LVDS (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Industrial 10.4"/12.1"/15" financial/industrial control monitor

Panel size: 10.4 inches, 12.1 inches, 15 inches

Resolution: 640*480, 1280*800, 1024*768

Brightness: 350nit, 400nit, 550nit, 1000nit, 1500nit

Supported colors: 262K/16.2M

Working temperature: -30 ~ 80 °C -30 ~ 70 °C -20 ~ 70 °C

Touch mode: Resistive screen Capacitive screen

Interface: LVDS, TTL (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Product Overview

  • The Tianma TM101JDHG32 is a 10.1-inch WXGA industrial TFT LCD module developed for applications requiring high brightness, wide viewing angles, compact dimensions, and reliable long-term operation.
  • With a native resolution of 1280 × 800 pixels and LVDS 1-channel 6/8-bit interface, the display provides detailed image presentation and stable digital signal transmission for industrial controllers, embedded computers, and professional equipment.
  • The module uses SFT technology and a high-brightness white LED backlight rated for approximately 50,000 hours, making it particularly suitable for outdoor high-brightness equipment, industrial control systems, medical imaging devices, and embedded display solutions.

Key Features

10.1-Inch Industrial TFT LCD Module
  • Compact industrial display designed for embedded systems, industrial equipment, medical devices, and outdoor terminals.
1280 × 800 WXGA Resolution
  • Provides detailed image presentation and a 16:10 widescreen format for modern industrial interfaces.
1000 cd/m² High Brightness
  • Provides excellent visibility in bright indoor and outdoor environments and supports sunlight-readable display applications.
SFT Wide Viewing Angle Technology
  • Provides approximately 85° viewing angles in four directions for consistent image visibility from different viewing positions.
LVDS Digital Interface
  • Supports reliable digital signal transmission and straightforward integration with industrial controllers and embedded computing platforms.
262K / 16.7M Color Support
  • Supports 6-bit and 8-bit color configurations for flexible system integration.
White LED Backlight
  • Provides stable illumination with a typical backlight lifetime of approximately 50,000 hours.
Integrated LED Driver
  • The backlight driver is integrated into the module to simplify system-level integration.
Wide Temperature Operation
  • Supports operation from -20°C to +70°C for demanding industrial environments.
Hard-Coated Surface
  • Provides improved surface durability for professional equipment and industrial applications.
Compact Mechanical Design
  • With an approximately 229.8 × 149.0 × 9.11 mm module size, the display is suitable for space-constrained equipment.
Industrial and Outdoor Display Capability
  • Designed for high-brightness applications including industrial, medical imaging, and outdoor equipment.

Applications

10.1-Inch Industrial TFT LCD Module
  • Compact industrial display designed for embedded systems, industrial equipment, medical devices, and outdoor terminals.
1280 × 800 WXGA Resolution
  • Provides detailed image presentation and a 16:10 widescreen format for modern industrial interfaces.
1000 cd/m² High Brightness
  • Provides excellent visibility in bright indoor and outdoor environments and supports sunlight-readable display applications.
SFT Wide Viewing Angle Technology
  • Provides approximately 85° viewing angles in four directions for consistent image visibility from different viewing positions.
LVDS Digital Interface
  • Supports reliable digital signal transmission and straightforward integration with industrial controllers and embedded computing platforms.
262K / 16.7M Color Support
  • Supports 6-bit and 8-bit color configurations for flexible system integration.
White LED Backlight
  • Provides stable illumination with a typical backlight lifetime of approximately 50,000 hours.
Integrated LED Driver
  • The backlight driver is integrated into the module to simplify system-level integration.
Wide Temperature Operation
  • Supports operation from -20°C to +70°C for demanding industrial environments.
Hard-Coated Surface
  • Provides improved surface durability for professional equipment and industrial applications.
Compact Mechanical Design
  • With an approximately 229.8 × 149.0 × 9.11 mm module size, the display is suitable for space-constrained equipment.
Industrial and Outdoor Display Capability
  • Designed for high-brightness applications including industrial, medical imaging, and outdoor equipment.

Why Choose Andesource

  • Professional supplier of industrial LCD displays and embedded modules
  • Original Tianma LCD module sourcing
  • Global sourcing and supply chain support
  • Engineering and integration assistance
  • Technical documentation available
  • LCD replacement and cross-reference solutions
  • Flexible order quantities
  • Competitive pricing for OEMs and distributors
  • Fast international shipping
  • OEM and ODM customization support

FAQ

What is the TM101JDHG32 LCD module?
  • The Tianma TM101JDHG32 is a 10.1-inch industrial TFT LCD module featuring 1280 × 800 WXGA resolution, 1000 cd/m² typical brightness, SFT wide viewing technology, single-channel 6/8-bit LVDS connectivity, and a white LED backlight with an integrated driver.
Who manufactures the TM101JDHG32?
  • The TM101JDHG32 is manufactured by Tianma Microelectronics.
What is the screen size of the TM101JDHG32?
  • The module features a 10.1-inch diagonal display area.
What resolution does the TM101JDHG32 support?
  • The display supports a native resolution of 1280 × 800 pixels, commonly known as WXGA.
What is the aspect ratio of the TM101JDHG32?
  • The module uses a 16:10 aspect ratio.
What is the brightness of the TM101JDHG32?
  • The manufacturer specifies a typical luminance of 1000 cd/m².
Is the TM101JDHG32 a high-brightness LCD?
  • Yes. Tianma identifies the TM101JDHG32 as a high-brightness industrial display with 1000 cd/m² typical luminance.
Is the TM101JDHG32 sunlight readable?
  • Its high brightness supports evaluation for bright environments, but direct-sunlight readability depends on reflections, optical bonding, enclosure design, and installation conditions.
What is the contrast ratio of the TM101JDHG32?
  • The Tianma Final Specification V2.0 identifies a typical contrast ratio of 700:1. Tianma Europe's current product page lists 800:1, so the applicable specification revision should be confirmed.
Why do some TM101JDHG32 specifications show 800:1 contrast?
  • Different published technical references list 700:1 and 800:1. The 2018 manufacturer Final Specification V2.0 identifies 700:1, while Tianma Europe's product page lists 800:1.
What display technology does the TM101JDHG32 use?
  • The module uses amorphous silicon TFT active matrix technology with Tianma SFT wide viewing architecture.
What is SFT display technology?
  • SFT is Tianma's wide viewing angle TFT LCD technology.
Is the TM101JDHG32 a TN display?
  • The manufacturer identifies the display technology as SFT, normally black, rather than a conventional TN display.
Is the TM101JDHG32 an IPS display?
  • The manufacturer identifies the technology as SFT. Technical descriptions should retain that original designation.
What is the display mode of the TM101JDHG32?
  • The module uses a transmissive, normally black display configuration.
What are the viewing angles of the TM101JDHG32?
  • The typical viewing angles are 85° left, 85° right, 85° up, and 85° down.
Does the TM101JDHG32 have symmetrical viewing angles?
  • Yes. The manufacturer specifies typical 85-degree viewing angles in all four directions.
How many colors does the TM101JDHG32 support?
  • The module supports approximately 262,144 colors in 6-bit mode or 16.7 million colors in 8-bit mode.
Does the TM101JDHG32 support 8-bit RGB?
  • Yes. The original module supports an 8-bit RGB input configuration.
Does the TM101JDHG32 support 6-bit RGB?
  • Yes. The module supports a selectable 6-bit RGB input configuration.
How is the 6-bit or 8-bit mode selected?
  • The manufacturer specifies the SEL6/8 control input. A High level selects 6-bit mode, while a Low level selects 8-bit mode.
What interface does the TM101JDHG32 use?
  • The module uses a single-channel LVDS digital display interface.
Does the TM101JDHG32 use single-channel or dual-channel LVDS?
  • The original module uses single-channel LVDS.
Does the TM101JDHG32 support both 6-bit and 8-bit LVDS?
  • Yes. The original manufacturer specifies selectable 6-bit and 8-bit RGB LVDS configurations.
Does the TM101JDHG32 use TTL parallel RGB?
  • No. The original module uses LVDS rather than a native TTL parallel RGB interface.
Does the TM101JDHG32 support eDP?
  • The original display interface is LVDS rather than eDP.
Does the TM101JDHG32 have an HDMI interface?
  • The LCD module does not include a native HDMI input. HDMI-based equipment requires a compatible controller that generates the specified LVDS signals.
What LCD signal connector does the TM101JDHG32 use?
  • The manufacturer specifies a JAE FI-SE20P-HFE-E3000 connector.
How many pins does the TM101JDHG32 signal connector have?
  • The module uses a 20-pin LVDS signal connector.
What is the backlight connector of the TM101JDHG32?
  • The manufacturer specifies a JAE FI-S6P-HFE-E1500 backlight connector.
How many pins does the TM101JDHG32 backlight connector have?
  • The backlight connection
