TM101JDHG30
TM101JDHG30
TM101JDHG30
TM101JDHG30
TM101JDHG30
  • Tianma TM101JDHG30
  • Tianma TM101JDHG30
  • Tianma TM101JDHG30
  • Tianma TM101JDHG30
  • Tianma TM101JDHG30
TM101JDHG30
Size
10.1"
Resolution
1280×800
CR
800:1
Brightness
500
Interface
LVDS
Max Ratings
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
Certification
ISO14001:2015 Certification ISO 45001:2018 Certification ISO 9001:2015 Certification
Delivery
Delivery
Payment
Payment

{{title}}
Price not available? Fill in the information below to send a quick RFQ, and we will respond promptly
{{ isClicked ? 'Submitted' : 'Submit RFQ' }}

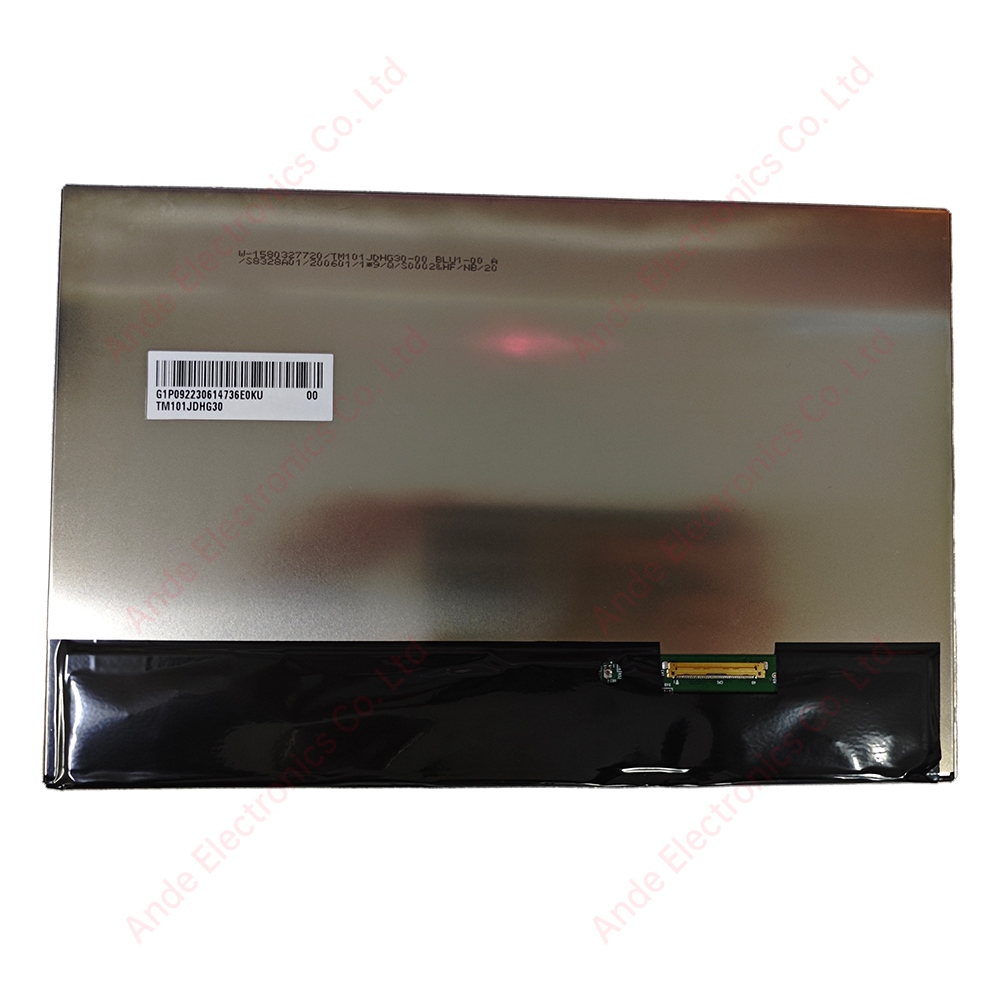

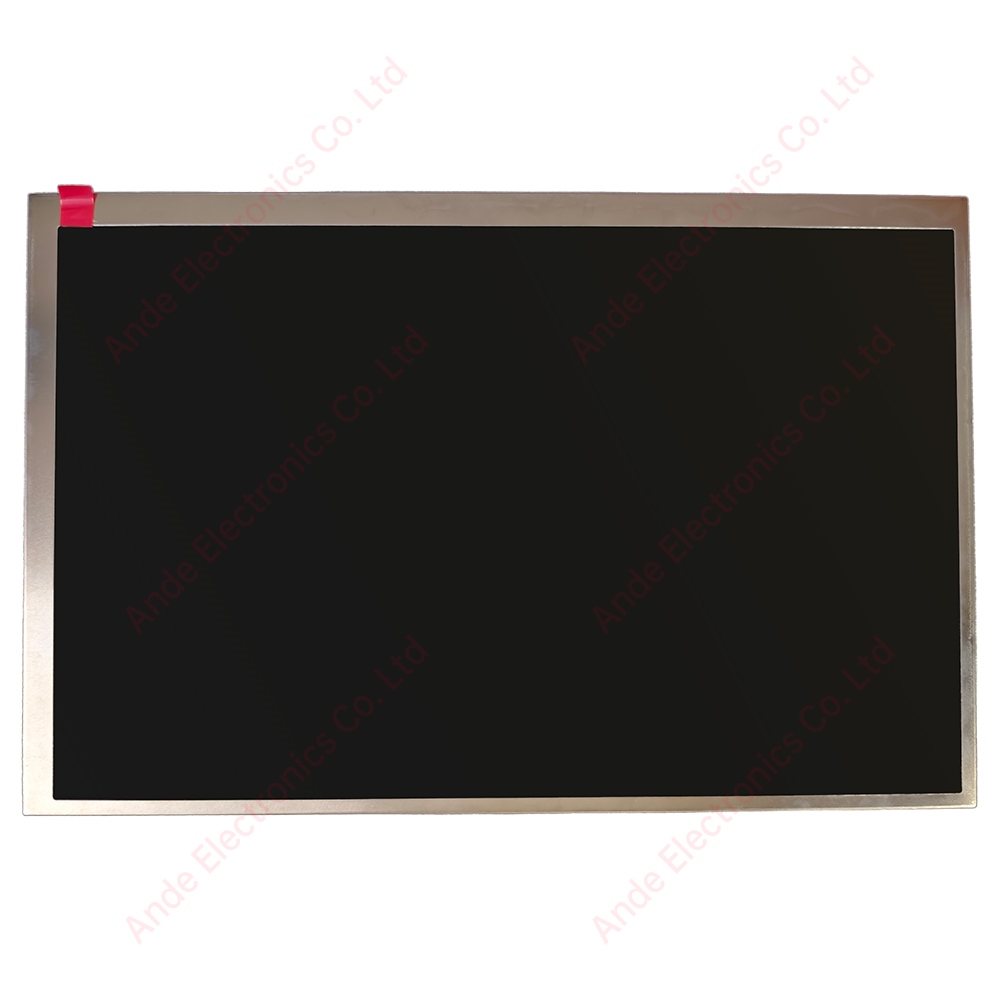

TM101JDHG30 10.1 Inch TFT LCD Display Module 1280x800

The TM101JDHG30 is a 10.1-inch TFT LCD module with 1280x800 resolution, providing clear visuals and wide viewing angles for industrial and embedded applications. With an LVDS interface and high brightness, it is ideal for industrial automation equipment, HMI panels, medical devices, and embedded systems requiring reliable display performance.

Specifications
Data Sheet
Advantages
Solutions

1.Decades of Experience

Supplying LCD displays since 1998, ANDE Electronics has built extensive expertise and a reliable network of manufacturers, ensuring high-quality components and solutions.

2.Wide Inventory

We stock LCD displays ranging from 1.3’’ to 65’’, ready for immediate delivery to meet both small-scale and large-scale project needs.

3.Hard-to-Find LCD Stock

Discontinued modules are often difficult to source. ANDE Electronics provides access to hard-to-find LCD stock, helping clients complete projects without delays.

4.Solution Support

Our team assists with LCD screen selection and integration, offering guidance to make sure the right display fits your project requirements.

5.Technical Services

We offer enhancements and add-ons such as touch screen overlays, driver boards, and highlighted features.

6.LCD Touch Sreen Customization

ANDE Electronics provides custom touch solutions, allowing clients to upgrade standard LCD modules with touch functionality tailored to specific applications.

Solutions overview / Healthcare / Manufacturering / New energy / Enterprise

Medical display solutions (12.1"/15"/17"/19"/21.5")

Panel size: 12.1 inches, 15.0 inches, 17.0 inches, 19.0 inches, 21.5 inches

Resolution: 800*600, 640*480, 1024*768

Brightness: 350nit, 400nit, 500nit, 600nit, 700nit

Supported colors: 262K/16.7M 262K/16.2M

Working temperature: -30 ~70°C -20 ~70°C 0 ~ 50 °C

Touch mode: Resistive screen

Interface: LVDS (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Industrial 10.4"/12.1"/15" financial/industrial control monitor

Panel size: 10.4 inches, 12.1 inches, 15 inches

Resolution: 640*480, 1280*800, 1024*768

Brightness: 350nit, 400nit, 550nit, 1000nit, 1500nit

Supported colors: 262K/16.2M

Working temperature: -30 ~ 80 °C -30 ~ 70 °C -20 ~ 70 °C

Touch mode: Resistive screen Capacitive screen

Interface: LVDS, TTL (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Product Overview

  • The Tianma TM101JDHG30 is a 10.1-inch color TFT LCD module developed for industrial and professional display applications requiring reliable performance, excellent readability, and long-term availability.
  • With a native resolution of 1280 × 800 pixels and a 16:10 widescreen format, the module provides clear image presentation for industrial PCs, HMI systems, medical devices, embedded computers, and control terminals.
  • The module adopts an LVDS digital interface, supporting stable high-speed signal transmission and easy integration with industrial controllers and display systems.
  • Featuring SFT Normally Black display technology, 500 cd/m² brightness, 800:1 contrast ratio, 262K/16.7M color support, hard coating surface treatment, and WLED backlight technology, the TM101JDHG30 provides dependable visual performance for demanding environments.

Key Features

10.1-Inch Industrial TFT LCD Module
  • Designed for industrial computers, HMI systems, medical equipment, and embedded applications.
1280 × 800 WXGA Resolution
  • Provides clear image quality with detailed graphics performance.
LVDS Digital Interface
  • Supports reliable high-speed signal transmission and easy integration with industrial systems.
SFT Wide Viewing Technology
  • Provides excellent viewing angle performance and stable image quality.
500 cd/m² High Brightness
  • Ensures clear visibility in industrial and professional environments.
800:1 Contrast Ratio
  • Improves image depth and enhances display readability.
262K / 16.7M Color Display
  • Provides smooth color reproduction for graphics and user interfaces.
WLED Backlight with Integrated LED Driver
  • Provides stable illumination performance and simplified system design.
Wide Viewing Angle Design
  • Maintains consistent image quality from different viewing directions.
Hard Coating Surface Treatment
  • Improves durability and reduces surface damage risk.
Wide Temperature Operation
  • Supports reliable operation from -20°C to +70°C.
Long Lifecycle Availability
  • Suitable for OEM projects requiring stable supply and replacement support.

Applications

Industrial Automation Equipment
  • Suitable for factory automation systems, machine interfaces, industrial controllers, and monitoring equipment.
Human Machine Interface (HMI)
  • Applicable to operator panels, industrial control terminals, and visualization systems.
Industrial PCs
  • Provides reliable display solutions for embedded computers and industrial terminals.
Medical Equipment
  • Suitable for healthcare devices, diagnostic systems, and professional medical instruments.
Measurement Instruments
  • Applicable to testing equipment, meters, and professional measurement systems.
Transportation Equipment
  • Suitable for vehicle information systems and transportation control displays.
Security Monitoring Systems
  • Provides stable display solutions for surveillance terminals and command centers.
IoT and Embedded Systems
  • Ideal for smart devices, embedded platforms, and customized electronic products.
OEM and ODM Display Projects
  • Supports customized LCD sourcing and system integration.

Why Choose Andesource

  • Professional supplier of industrial LCD displays and embedded modules
  • Original Tianma LCD module sourcing
  • Global sourcing and supply chain support
  • Engineering and integration assistance
  • Technical documentation available
  • LCD replacement and cross-reference solutions
  • Flexible order quantities
  • Competitive pricing for OEMs and distributors
  • Fast international shipping
  • OEM and ODM customization support

FAQ

What is the TM101JDHG30 LCD module?
  • The TM101JDHG30 is a 10.1-inch Tianma industrial TFT LCD module designed for industrial displays, HMI systems, embedded devices, and professional applications.
What resolution does the TM101JDHG30 support?
  • The module supports a 1280 × 800 WXGA resolution.
What interface does the TM101JDHG30 use?
  • The module uses an LVDS 1ch 6/8-bit interface for stable digital signal transmission.
What is the brightness of the TM101JDHG30?
  • The module provides 500 cd/m² typical brightness suitable for industrial and professional display environments.
What display technology does the TM101JDHG30 use?
  • The module uses SFT Normally Black TFT technology with wide viewing angle performance.
What are the advantages of the Tianma TM101JDHG30?
  • The module offers high brightness, wide viewing angle, LVDS connectivity, integrated LED driver, wide temperature operation, and industrial-grade reliability.
What applications is the TM101JDHG30 suitable for?
  • The module is suitable for industrial PCs, medical equipment, automation systems, HMI terminals, and embedded display applications.
Can Andesource provide replacement solutions for TM101JDHG30?
  • Yes. Andesource provides original Tianma LCD sourcing, replacement recommendations, technical documentation, engineering support, and worldwide shipping services.
Can Andesource support OEM and ODM display projects?
  • Yes. Andesource provides customized LCD sourcing solutions and technical assistance for OEM and ODM customers.
