| TYPE | DESCRIPTION |
| Part Number: | TK12P60W,RVQ |
| Description: | MOSFET N CH 600V 11.5A DPAK |
| Lead Free Status / RoHS Status: | |
| Packaging | Cut Tape (CT) |
| Rds On (Max) @ Id, Vgs | 340 mOhm @ 5.8A, 10V |
| Series | DTMOSIV |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |

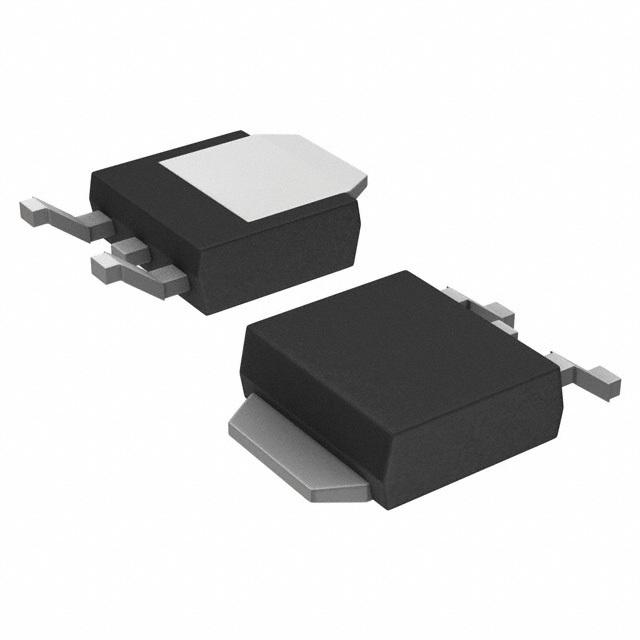

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| FET Type | N-Channel |
| Vgs(th) (Max) @ Id | 3.7V @ 600µA |
| Gate Charge (Qg) (Max) @ Vgs | 25nC @ 10V |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Power Dissipation (Max) | 100W (Tc) |
| Vgs (Max) | ±30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Continuous Drain (Id) @ 25°C | 11.5A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 890pF @ 300V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| FET Feature | Super Junction |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600V |
| Detailed Description | N-Channel 600V 11.5A (Ta) 100W (Tc) Surface Mount DPAK |
| Supplier Device Package | DPAK |
| Other Names | TK12P60WRVQCT |
| Meta Part Number | TK12P60WRVQCT-ND |
