Category
Embedded - Microcontrollers
Manufacturer
STMicroelectronics
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

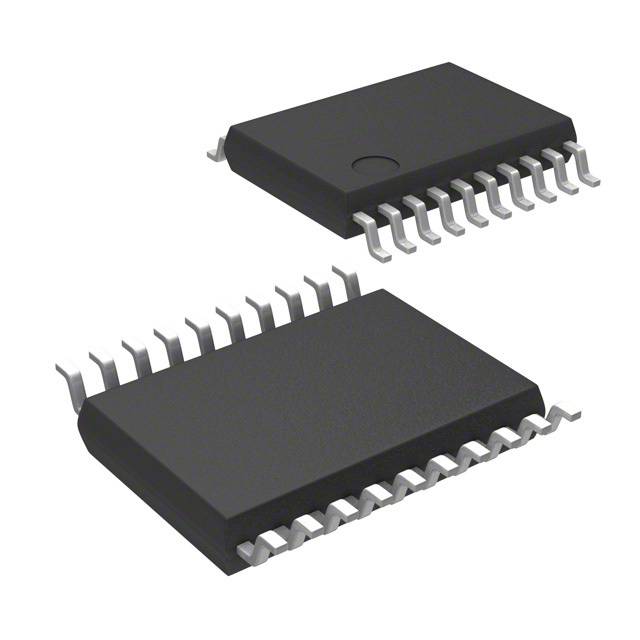

| Part Number: | STM8S103F3P6 |
| Description: | IC MCU 8BIT 8KB FLASH 20TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description | STM8 STM8S Microcontroller IC 8-Bit 16MHz 8KB (8K x 8) FLASH 20-TSSOP |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| EEPROM Size | 640 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95 V ~ 5.5 V |
| Other Names | 497-11579 "######"STM8S103F3P6-ND |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
| Data Converters | A/D 5x10b |
| Program Memory Size | 8KB (8K x 8) |
| Supplier Device Package | 20-TSSOP |
| Base Part Number | STM8S103 |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Core Size | 8-Bit |
| Package / Case | 20-TSSOP (0.173, 4.40mm Width) |
| RAM Size | 1K x 8 |
| Manufacturer Standard Lead Time | 35 Weeks |
| Speed | 16MHz |
| Series | STM8S |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Program Memory Type | FLASH |
| Number of I/O | 16 |
| Packaging | Tube |
| Meta Part Number | 497-11579-ND |
| Core Processor | STM8 |
| Oscillator Type | Internal |
Data sheet: Work in prgress, stay tuned!
