Category
Transistors - FETs, MOSFETs - Single
Manufacturer
STMicroelectronics
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

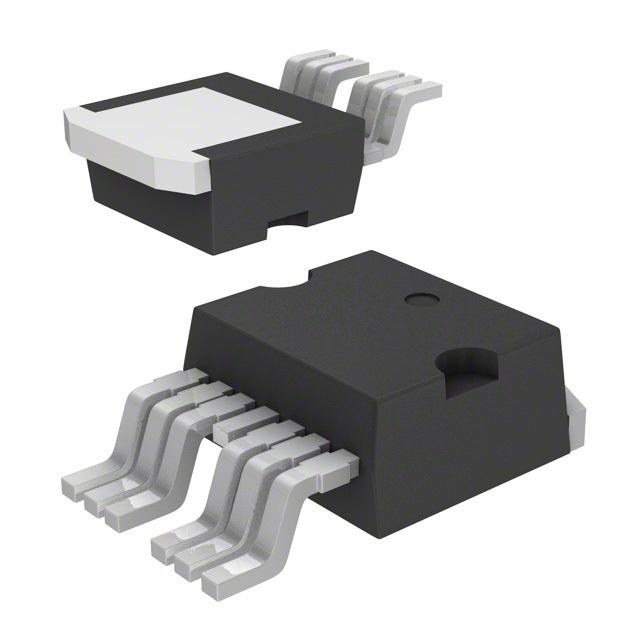

| Part Number: | STH240N10F7-6 |
| Description: | MOSFET N-CH 100V 180A H2PAK-6 |
| Lead Free Status / RoHS Status: | |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Meta Part Number | 497-15312-2-ND |
| Input Capacitance (Ciss) (Max) @ Vds | 11550pF @ 25V |
| Vgs (Max) | ±20V |
| Detailed Description | N-Channel 100V 180A (Tc) 300W (Tc) Surface Mount H2PAK-6 |
| Gate Charge (Qg) (Max) @ Vgs | 160nC @ 10V |
| Packaging | Tape & Reel (TR) |
| Other Names | 497-15312-2 |
| Series | STripFET™ F7 |
| Technology | MOSFET (Metal Oxide) |
| Power Dissipation (Max) | 300W (Tc) |
| Manufacturer Standard Lead Time | 38 Weeks |
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 100V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Current - Continuous Drain (Id) @ 25°C | 180A (Tc) |
| Supplier Device Package | H2PAK-6 |
| FET Type | N-Channel |
| Rds On (Max) @ Id, Vgs | 2.5 mOhm @ 60A, 10V |
Data sheet: Work in prgress, stay tuned!
