Category
Embedded - Microcontrollers
Manufacturer
Micrel / Microchip Technology
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

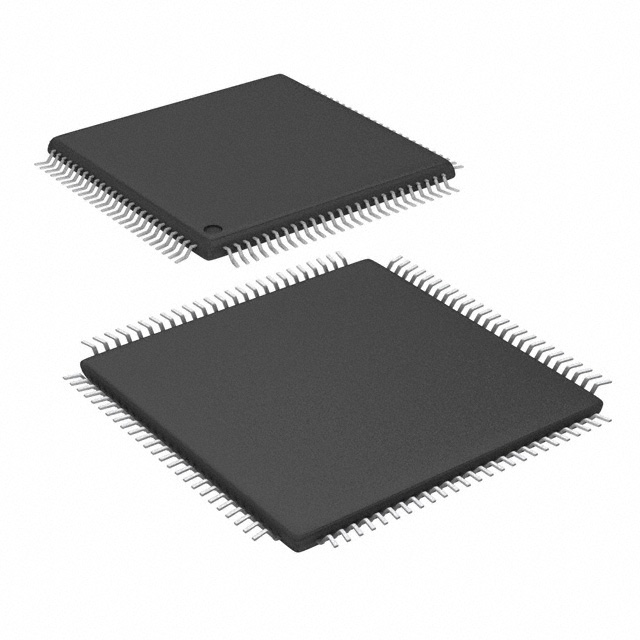

| Part Number: | PIC24EP512GU810-I/PT |
| Description: | IC MCU 16BIT 512KB FLASH 100TQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Meta Part Number | PIC24EP512GU810-I/PT-ND |
| Other Names | PIC24EP512GU810IPT |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of I/O | 83 |
| Program Memory Type | FLASH |
| Program Memory Size | 512KB (170K x 24) |
| Data Converters | A/D 32x10b/12b |
| Base Part Number | PIC24EP512GU810 |
| EEPROM Size | - |
| Manufacturer Standard Lead Time | 12 Weeks |
| Core Size | 16-Bit |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | PIC PIC® 24EP Microcontroller IC 16-Bit 60 MIPs 512KB (170K x 24) FLASH 100-TQFP (12x12) |
| Oscillator Type | Internal |
| Series | PIC® 24EP |
| Core Processor | PIC |
| RAM Size | 24K x 16 |
| Speed | 60 MIPs |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Package / Case | 100-TQFP |
| Packaging | Tray |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Supplier Device Package | 100-TQFP (12x12) |
Data sheet: Work in prgress, stay tuned!
