Category
Radar UAV Chip
Manufacturer
PEREGRI
RoHS
YES
Certification
Delivery
Payment

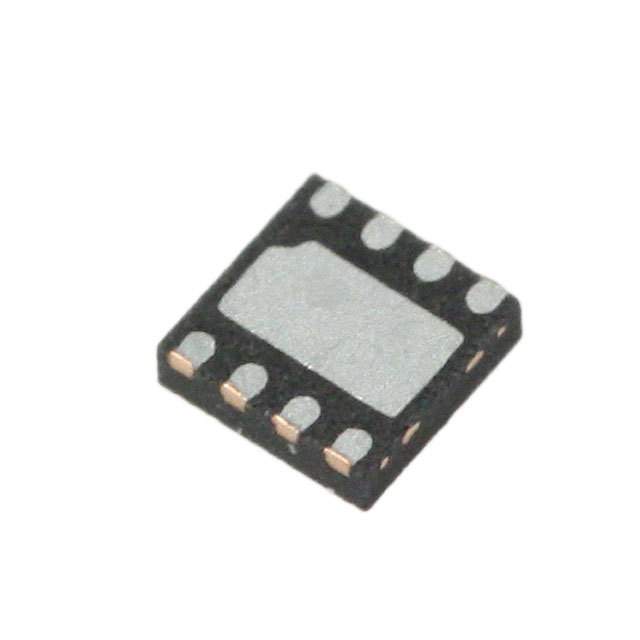

| Part Number | PE42430MLAB-Z |
| Manufacturer | Peregrine Semiconductor |
| Description | IC RF SWITCH SP3T 50 OHM 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Datasheets | PE42430 Specification |
| Voltage - Supply | - |
| Topology | Reflective |
| Test Frequency | 2.5GHz |
| Supplier Device Package | 8-DFN (1.5x1.5) |
| Series | UltraCMOS®, HaRP™ |
| RF Type | General Purpose |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFDFN Exposed Pad |
| P1dB | - |
| Other Names | 1046-1063-2 PE42430MLABZ |
| Operating Temperature | -40°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Isolation | 30dB |
| Insertion Loss | 0.55dB |
| Impedance | 50 Ohm |
| IIP3 | 66dBm |
| Frequency Range | 100MHz ~ 3GHz |
| Features | DC Blocked |
| Detailed Description | RF Switch IC General Purpose SP3T 3GHz 50 Ohm 8-DFN (1.5x1.5) |
| Circuit | SP3T |
Data sheet: Work in prgress, stay tuned!
