Category
Logic - Translators, Level Shifters
Manufacturer
Freescale / NXP Semiconductors
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

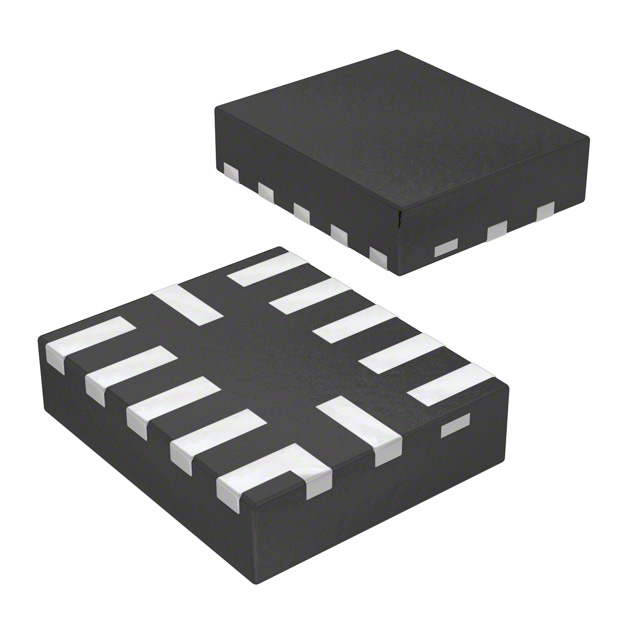

| Part Number: | NTS0104GU12,115 |
| Description: | IC TRNSLTR BIDIRECTIONAL 12XQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Output Type | Open Drain, Push-Pull |
| Meta Part Number | 568-8408-2-ND |
| Channels per Circuit | 4 |
| Supplier Device Package | 12-XQFN (2x1.7) |
| Voltage - VCCB | 2.3V ~ 5.5V |
| Series | - |
| Data Rate | 50Mbps |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Mounting Type | Surface Mount |
| Other Names | 568-8408-2 "######"935293698115 "######"NTS0104GU12115 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Signal | - |
| Number of Circuits | 1 |
| Detailed Description | Voltage Level Translator Bidirectional 1 Circuit 4 Channel 50Mbps 12-XQFN (2x1.7) |
| Input Signal | - |
| Voltage - VCCA | 1.65V ~ 3.6V |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-XFQFN |
| Features | Auto-Direction Sensing |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks |
| Base Part Number | NTS0104 |
Data sheet: Work in prgress, stay tuned!
