NL12880BC20-05
NL12880BC20-05
NL12880BC20-05
NL12880BC20-05
NL12880BC20-05
  • NLT NL12880BC20-05
  • NLT NL12880BC20-05
  • NLT NL12880BC20-05
  • NLT NL12880BC20-05
  • NLT NL12880BC20-05
NL12880BC20-05
Size
5.7"
Resolution
320×240
Max Ratings
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
Certification
ISO14001:2015 Certification ISO 45001:2018 Certification ISO 9001:2015 Certification
Delivery
Delivery
Payment
Payment

{{title}}
Price not available? Fill in the information below to send a quick RFQ, and we will respond promptly
{{ isClicked ? 'Submitted' : 'Submit RFQ' }}

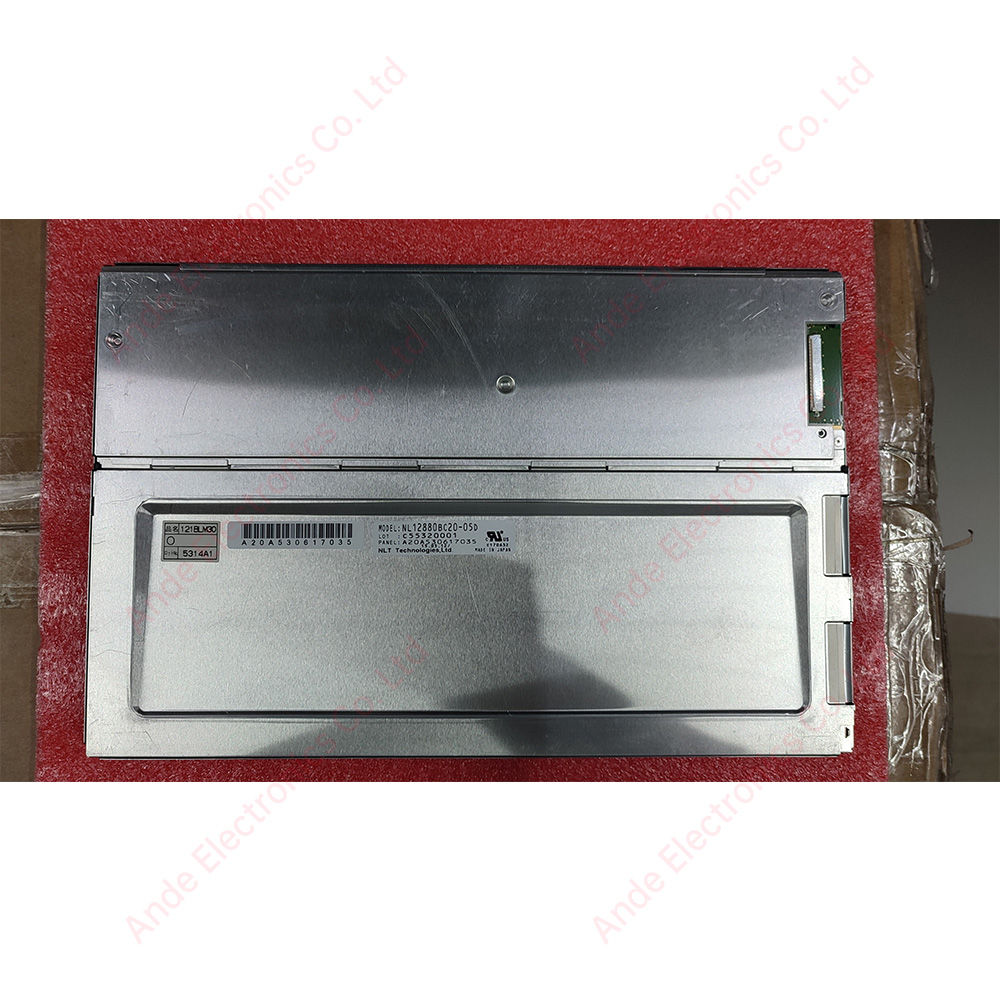

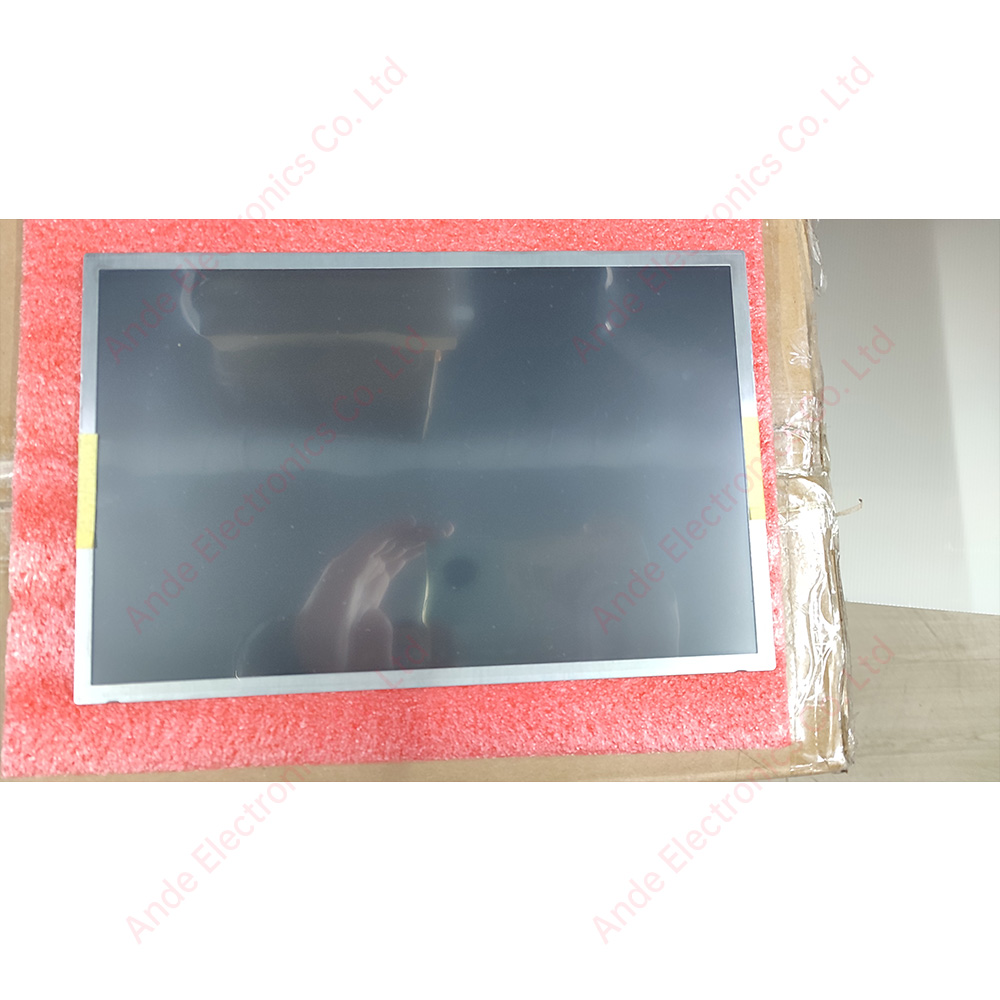

NL12880BC20-05 12.8 Inch Industrial TFT LCD Display Module

The NL12880BC20-05 is a high-quality 12.8-inch industrial TFT LCD display module. With an 1280x800 resolution and LVDS interface, it ensures reliable and clear display performance. Its robust design supports a wide operating temperature range, making it suitable for demanding industrial and embedded applications.

Specifications
Data Sheet
Advantages
Solutions

1.Decades of Experience

Supplying LCD displays since 1998, ANDE Electronics has built extensive expertise and a reliable network of manufacturers, ensuring high-quality components and solutions.

2.Wide Inventory

We stock LCD displays ranging from 1.3’’ to 65’’, ready for immediate delivery to meet both small-scale and large-scale project needs.

3.Hard-to-Find LCD Stock

Discontinued modules are often difficult to source. ANDE Electronics provides access to hard-to-find LCD stock, helping clients complete projects without delays.

4.Solution Support

Our team assists with LCD screen selection and integration, offering guidance to make sure the right display fits your project requirements.

5.Technical Services

We offer enhancements and add-ons such as touch screen overlays, driver boards, and highlighted features.

6.LCD Touch Sreen Customization

ANDE Electronics provides custom touch solutions, allowing clients to upgrade standard LCD modules with touch functionality tailored to specific applications.

Solutions overview / Healthcare / Manufacturering / New energy / Enterprise

Medical display solutions (12.1"/15"/17"/19"/21.5")

Panel size: 12.1 inches, 15.0 inches, 17.0 inches, 19.0 inches, 21.5 inches

Resolution: 800*600, 640*480, 1024*768

Brightness: 350nit, 400nit, 500nit, 600nit, 700nit

Supported colors: 262K/16.7M 262K/16.2M

Working temperature: -30 ~70°C -20 ~70°C 0 ~ 50 °C

Touch mode: Resistive screen

Interface: LVDS (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Industrial 10.4"/12.1"/15" financial/industrial control monitor

Panel size: 10.4 inches, 12.1 inches, 15 inches

Resolution: 640*480, 1280*800, 1024*768

Brightness: 350nit, 400nit, 550nit, 1000nit, 1500nit

Supported colors: 262K/16.2M

Working temperature: -30 ~ 80 °C -30 ~ 70 °C -20 ~ 70 °C

Touch mode: Resistive screen Capacitive screen

Interface: LVDS, TTL (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Product Overview

  • The Tianma NL12880BC20-05 is a 12.1-inch color TFT LCD module developed for industrial and professional display applications requiring high resolution, wide viewing angle, and reliable operation.
  • With a native resolution of 1280 × 800 pixels and LVDS digital interface, the display provides detailed image presentation and stable signal transmission for embedded systems and industrial controllers.
  • The module integrates SFT wide viewing angle technology, high contrast performance, LED backlight, and industrial-grade design, making it suitable for demanding applications such as industrial PCs, HMI systems, medical equipment, and automation terminals.

Key Features

12.1-Inch Industrial TFT LCD Module
  • Designed for industrial PCs, automation systems, medical equipment, and embedded display applications.
1280 × 800 WXGA Resolution
  • Provides detailed image quality for graphical interfaces, control systems, and professional visualization applications.
LVDS Digital Interface
  • Supports reliable high-speed signal transmission and easy integration with industrial controllers.
SFT Wide Viewing Angle Technology
  • Provides excellent visibility and stable image performance from multiple viewing directions.
450 cd/m² Brightness
  • Ensures clear image presentation for indoor industrial and professional environments.
1000:1 Contrast Ratio
  • Improves image depth and enhances display readability.
16.7M True Color Display
  • Supports accurate color reproduction for advanced graphical applications.
LED Backlight Technology
  • Provides stable illumination performance with long operating lifetime.
Long-Life LED Backlight
  • Supports continuous operation for industrial products requiring long service life.
Wide Operating Temperature Range
  • Suitable for industrial environments requiring reliable performance.
Reversible Scan Direction
  • Provides flexible installation options for different system designs.
Compact Industrial Design
  • Supports integration into space-limited industrial equipment.

Applications

Industrial Automation Equipment
  • Suitable for factory automation systems, PLC interfaces, machine control panels, and industrial terminals.
Industrial PCs
  • Provides reliable display solutions for panel PCs and embedded computers.
Medical Equipment Displays
  • Applicable to medical instruments, monitoring systems, and healthcare devices.
Human Machine Interface (HMI)
  • Ideal for operator panels, control terminals, and industrial visualization systems.
Measurement Equipment
  • Suitable for laboratory instruments, inspection systems, and testing equipment.
Transportation Equipment
  • Applicable to railway, marine, and vehicle display systems.
Security Monitoring Systems
  • Provides high-resolution display solutions for surveillance terminals.
Embedded Display Systems
  • Ideal for customized electronic products requiring industrial TFT displays.
OEM and ODM Display Projects
  • Supports customized LCD sourcing and system integration solutions.

Why Choose Andesource

  • Professional supplier of industrial LCD displays and embedded modules
  • Original Tianma LCD module sourcing
  • Global sourcing and supply chain support
  • Engineering and integration assistance
  • Technical documentation available
  • LCD replacement and cross-reference solutions
  • Flexible order quantities
  • Competitive pricing for OEMs and distributors
  • Fast international shipping
  • OEM and ODM customization support

FAQ

What is the NL12880BC20-05 LCD module?
  • The NL12880BC20-05 is a 12.1-inch Tianma industrial TFT LCD module designed for industrial equipment, automation systems, medical devices, and embedded display applications.
What resolution does the NL12880BC20-05 support?
  • The module supports a 1280 × 800 WXGA resolution.
What interface does the NL12880BC20-05 use?
  • The module uses an LVDS digital interface.
What is the brightness of the NL12880BC20-05?
  • The module provides approximately 450 cd/m² brightness.
What display technology does the NL12880BC20-05 use?
  • The module uses SFT (Super Fine TFT) technology for wide viewing angle performance.
What backlight technology does the NL12880BC20-05 use?
  • The module uses LED backlight technology.
What are the advantages of NL12880BC20-05?
  • The module offers WXGA resolution, wide viewing angle, high contrast ratio, LVDS interface, long LED lifetime, and industrial-grade reliability.
What applications is NL12880BC20-05 suitable for?
  • The module is suitable for industrial PCs, medical equipment, automation systems, HMI terminals, and embedded display applications.
Can Andesource provide replacement solutions for NL12880BC20-05?
  • Yes. Andesource provides original Tianma LCD sourcing, replacement recommendations, technical documentation, engineering support, and worldwide shipping services.
Can Andesource support OEM and ODM display projects?
  • Yes. Andesource provides customized LCD sourcing solutions and technical assistance for OEM and ODM customers.
