Category
PMIC - Motor Drivers, Controllers
Manufacturer
JRC Corporation / NJRC
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

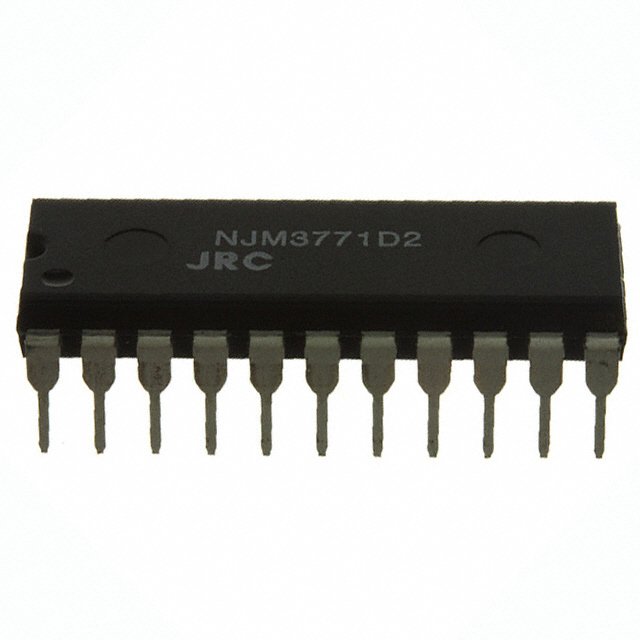

| Part Number: | NJM3771D2 |
| Description: | IC MOTOR DRIVER PAR 22DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface | Parallel |
| Packaging | Tube |
| Applications | General Purpose |
| Manufacturer Standard Lead Time | 12 Weeks |
| Voltage - Load | 10 V ~ 40 V |
| Output Configuration | Half Bridge (4) |
| Package / Case | 22-DIP (0.400, 10.16mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Motor Type - AC, DC | - |
| Technology | Bipolar |
| Motor Type - Stepper | Bipolar |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Step Resolution | 1, 1/2 |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Series | - |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Other Names | NJM#3771D2 "######"NJM#3771D2-ND "######"NJM3771D2# "######"NJM3771D2#-ND |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Meta Part Number | NJM3771D2-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Output | 650mA |
| Detailed Description | Bipolar Motor Driver Bipolar Parallel |
Data sheet: Work in prgress, stay tuned!
