Category
PMIC - Motor Drivers, Controllers
Manufacturer
JRC Corporation / NJRC
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

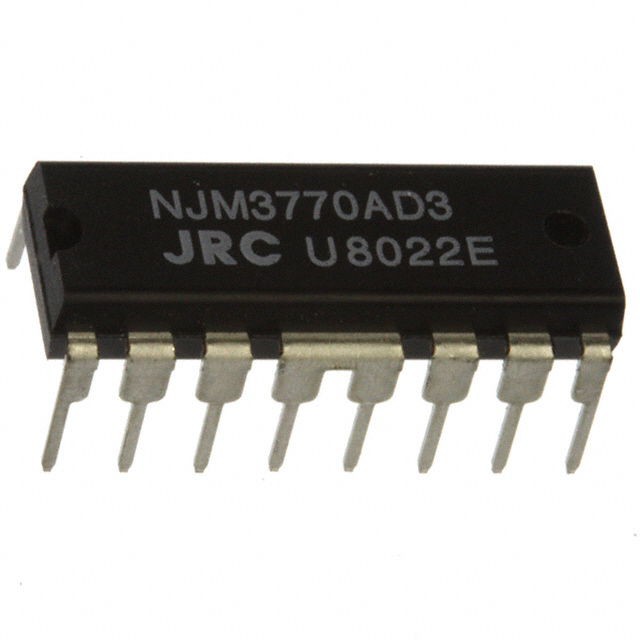

| Part Number: | NJM3770AD3 |
| Description: | IC MOTOR DRIVER PAR 16DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Mounting Type | Through Hole |
| Motor Type - Stepper | Bipolar |
| Packaging | Tube |
| Step Resolution | 1, 1/2 |
| Voltage - Load | 10 V ~ 40 V |
| Output Configuration | Half Bridge (2) |
| Detailed Description | Bipolar Motor Driver Bipolar Parallel 16-DIP Batwing |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Interface | Parallel |
| Series | - |
| Manufacturer Standard Lead Time | 12 Weeks |
| Motor Type - AC, DC | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Meta Part Number | NJM3770AD3-ND |
| Technology | Bipolar |
| Package / Case | 16-DIP (0.325, 8.25mm), 12 Leads + 2 Fins |
| Applications | General Purpose |
| Other Names | NJM#3770AD3 "######"NJM#3770AD3-ND "######"NJM3770AD3# "######"NJM3770AD3#-ND |
| Current - Output | 1.5A |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Supplier Device Package | 16-DIP Batwing |
Data sheet: Work in prgress, stay tuned!
