Category
PMIC - Voltage Regulators - Linear
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

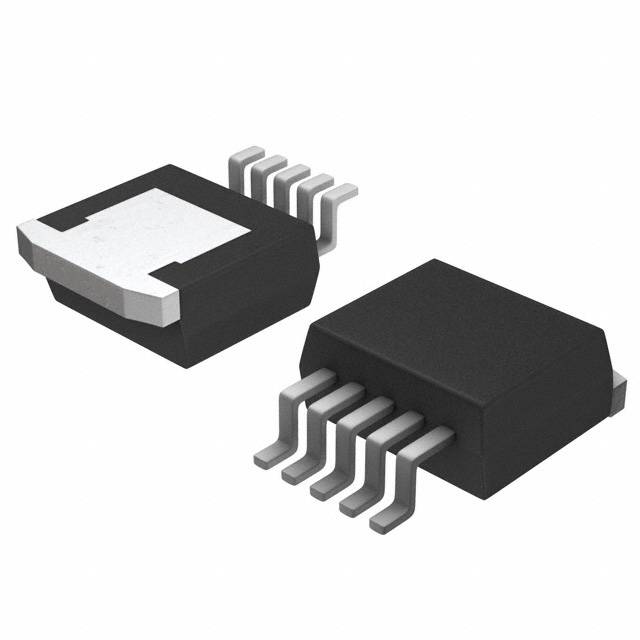

| Part Number: | NCV4274ADS50R4G |
| Description: | IC REG LINEAR 5V 400MA D2PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | Automotive, AEC-Q100 |
| Current - Output | 400mA |
| Voltage - Output (Min/Fixed) | 5V |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Other Names | NCV4274ADS50R4G-ND "######"NCV4274ADS50R4GOSTR |
| Packaging | Tape & Reel (TR) |
| Number of Regulators | 1 |
| PSRR | 60dB (100Hz) |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Max) | - |
| Base Part Number | NCV4274A |
| Mounting Type | Surface Mount |
| Control Features | - |
| Current - Supply (Max) | 35mA |
| Voltage Dropout (Max) | 0.5V @ 250mA |
| Output Configuration | Positive |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Meta Part Number | NCV4274ADS50R4GOSTR-ND |
| Supplier Device Package | D2PAK |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 5V 400mA D2PAK |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Quiescent (Iq) | 250µA |
| Output Type | Fixed |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
Data sheet: Work in prgress, stay tuned!
