Category
Radar UAV Chip
Manufacturer
MOTOROLA
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

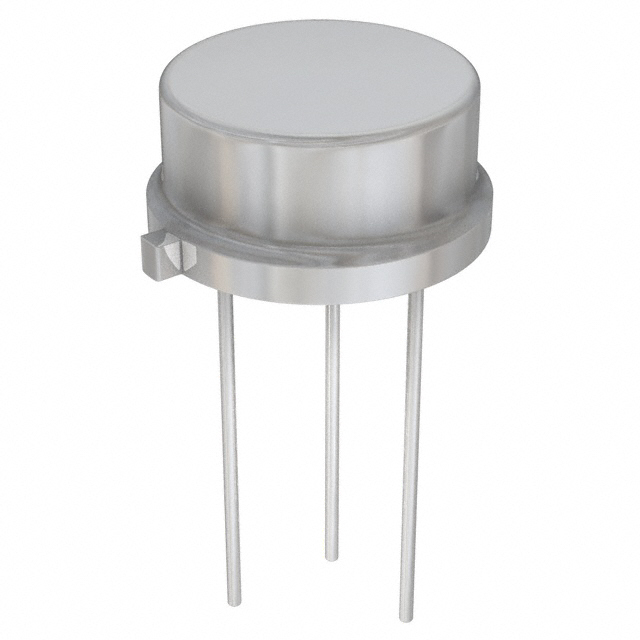

| Part Number: | MRF586 |
| Description: | TRANS RF BIPO 1W 200MA TO39 |
| Lead Free Status / RoHS Status: | |
| Noise Figure (dB Typ @ f) | - |
| Gain | 13.5dB |
| Packaging | Bulk |
| Detailed Description | RF Transistor NPN 17V 200mA 3GHz 1W Through Hole TO-39 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 50mA, 5V |
| Package / Case | TO-205AD, TO-39-3 Metal Can |
| Frequency - Transition | 3GHz |
| Voltage - Collector Emitter Breakdown (Max) | 17V |
| Operating Temperature | - |
| Meta Part Number | MRF586-ND |
| Supplier Device Package | TO-39 |
| Transistor Type | NPN |
| Power - Max | 1W |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Collector (Ic) (Max) | 200mA |
| Series | - |
| Mounting Type | Through Hole |
Data sheet: Work in prgress, stay tuned!
