Category
Radar UAV Chip
Manufacturer
MACOM
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

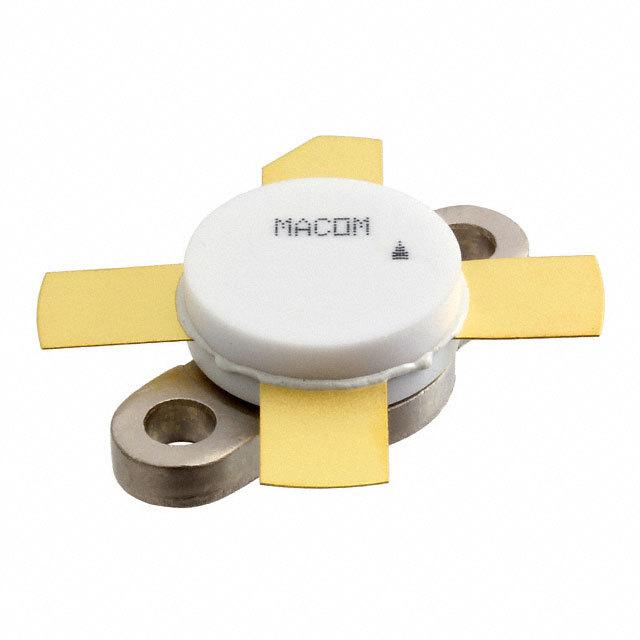

| Part Number: | MRF454 |
| Description: | TRANS RF NPN 25V 20A 211-11 |
| Lead Free Status / RoHS Status: | |
| Current - Collector (Ic) (Max) | 20A |
| Other Names | 1465-1190 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Package / Case | 211-11, Style 2 |
| Supplier Device Package | 211-11, Style 2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | - |
| Series | - |
| Transistor Type | NPN |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 5A, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 25V |
| Mounting Type | Chassis Mount |
| Meta Part Number | 1465-1190-ND |
| Frequency - Transition | - |
| Detailed Description | RF Transistor NPN 25V 20A 80W Chassis Mount 211-11, Style 2 |
| Gain | 12dB |
| Manufacturer Standard Lead Time | 20 Weeks |
| Packaging | Tray |
| Power - Max | 80W |
| Noise Figure (dB Typ @ f) | - |
Data sheet: Work in prgress, stay tuned!
