Category
Embedded - Microcontrollers
Manufacturer
Freescale / NXP Semiconductors
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

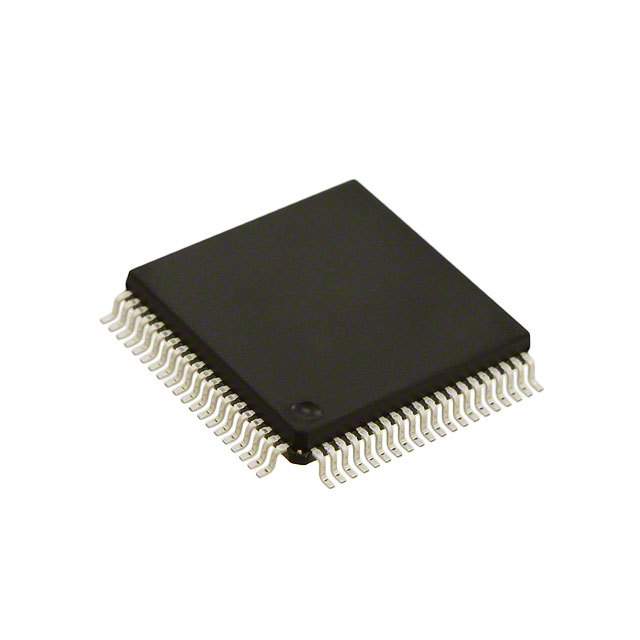

| Part Number: | MC9S12XET256MAA |
| Description: | IC MCU 16BIT 256KB FLASH 80QFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Speed | 50MHz |
| Base Part Number | MC9S12XET256 |
| Number of I/O | 59 |
| Data Converters | A/D 12x12b |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Series | HCS12X |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Core Processor | HCS12X |
| Package / Case | 80-QFP |
| Oscillator Type | External |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | HCS12X HCS12X Microcontroller IC 16-Bit 50MHz 256KB (256K x 8) FLASH 80-QFP (14x14) |
| Voltage - Supply (Vcc/Vdd) | 1.72 V ~ 5.5 V |
| Meta Part Number | MC9S12XET256MAA-ND |
| Peripherals | LVD, POR, PWM, WDT |
| Supplier Device Package | 80-QFP (14x14) |
| Program Memory Size | 256KB (256K x 8) |
| Core Size | 16-Bit |
| RAM Size | 16K x 8 |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI |
| Packaging | Tray |
| Program Memory Type | FLASH |
| Manufacturer Standard Lead Time | 12 Weeks |
| EEPROM Size | 4K x 8 |
| Other Names | 935319387557 |
Data sheet: Work in prgress, stay tuned!
