Category
Diodes - Rectifiers - Single
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

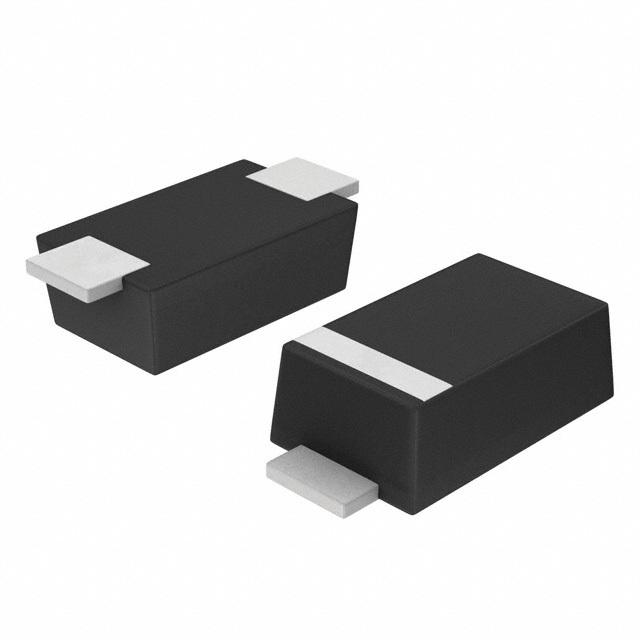

| Part Number: | MBR120VLSFT1G |
| Description: | DIODE SCHOTTKY 20V 1A SOD123FL |
| Lead Free Status / RoHS Status: | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Supplier Device Package | SOD-123FL |
| Base Part Number | MBR120 |
| Detailed Description | Diode Schottky 20V 1A Surface Mount SOD-123FL |
| Meta Part Number | MBR120VLSFT1GOSDKR-ND |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Package / Case | SOD-123F |
| Packaging | Digi-Reel® |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 1A |
| Voltage - DC Reverse (Vr) (Max) | 20V |
| Current - Reverse Leakage @ Vr | 600µA @ 20V |
| Manufacturer Standard Lead Time | 7 Weeks |
| Series | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Speed | Fast Recovery = 200mA (Io) |
| Other Names | MBR120VLSFT1GOSDKR |
| Diode Type | Schottky |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 340mV @ 1A |
Data sheet: Work in prgress, stay tuned!
