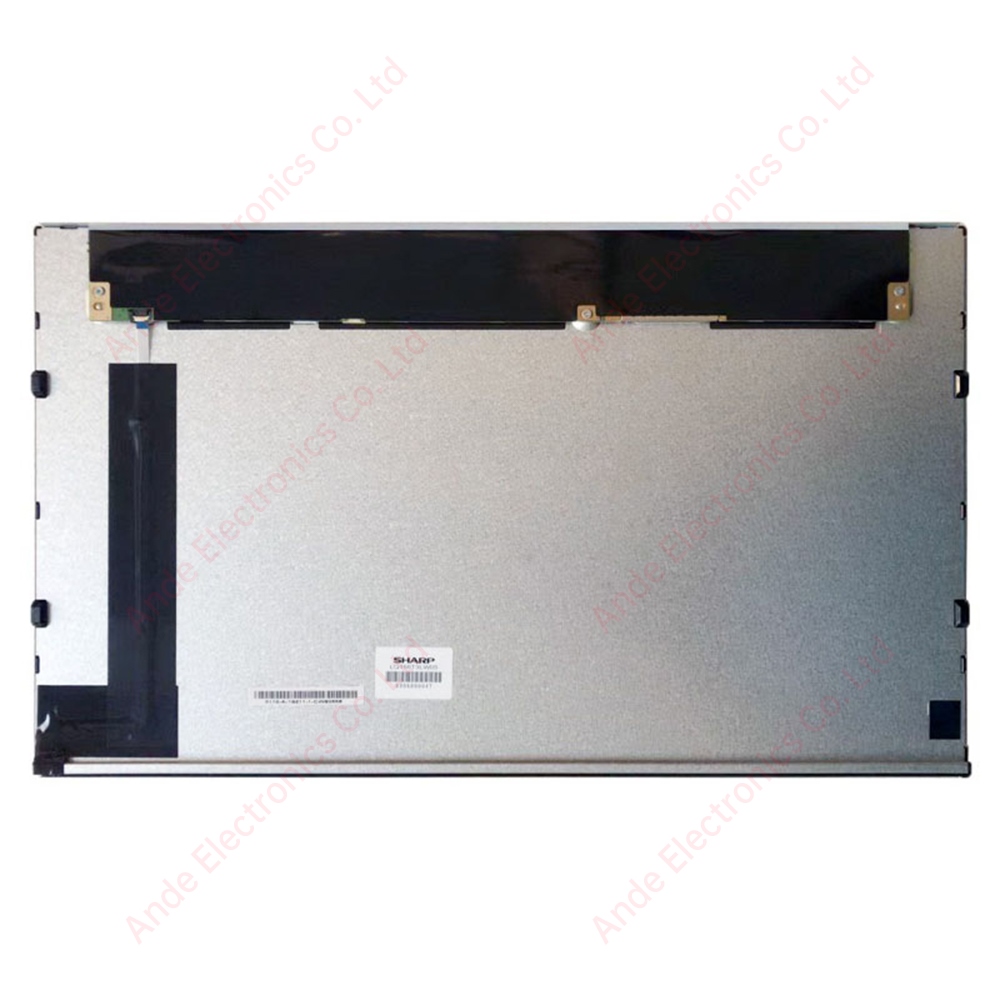

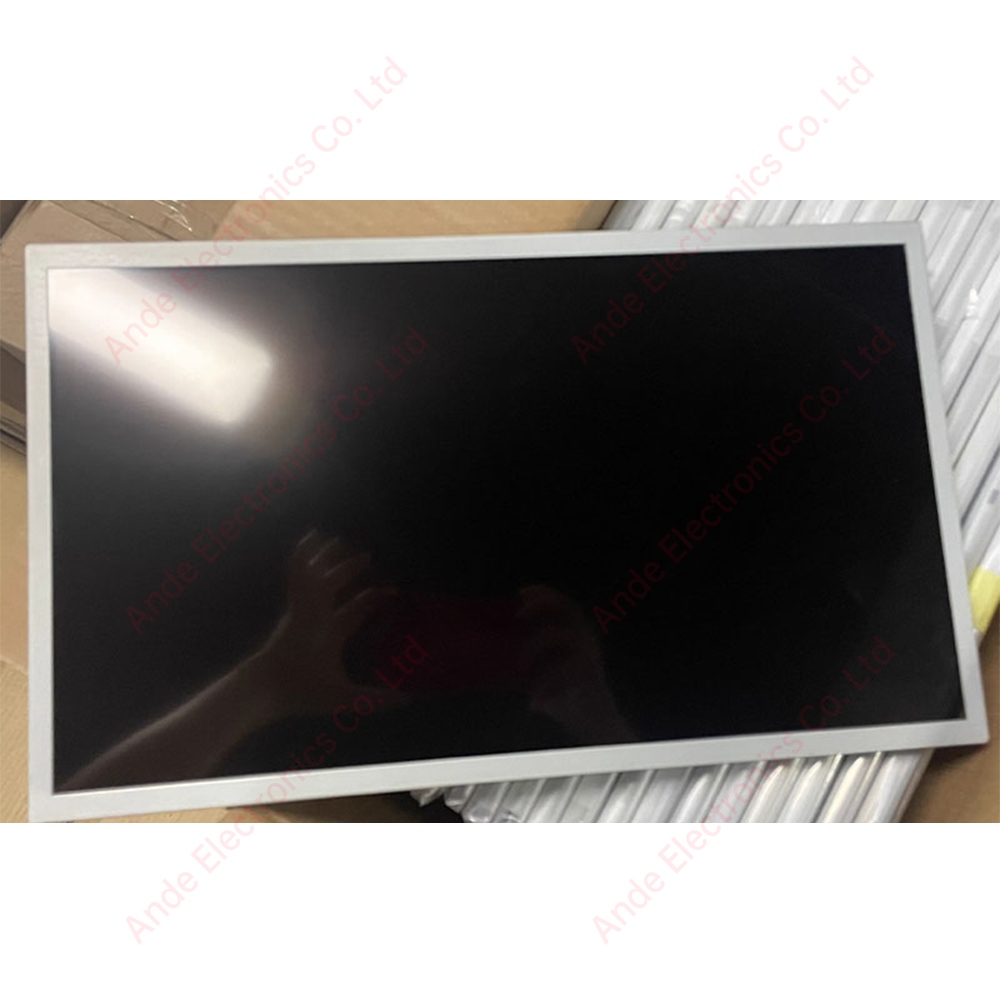

LQ156T3LW05 is a 15.6-inch WXGA 1368x768 industrial TFT LCD module manufactured by Sharp. It uses ASV (Advanced Super View) technology to provide wide viewing angles and stable image performance for industrial environments. The module features 400 cd/m² brightness, 1000:1 contrast ratio, LVDS 1-channel 8-bit interface, and a WLED backlight system with 70,000-hour lifetime and built-in LED driver. It is widely used in industrial automation, HMI control panels, industrial PCs, medical equipment, transportation systems, and embedded display solutions. Andesource provides OEM sourcing, replacement services, and long-term supply support.
Data sheet:
LQ156T3LW05.pdf
ANDE LCD Brochure.pdf
Supplying LCD displays since 1998, ANDE Electronics has built extensive expertise and a reliable network of manufacturers, ensuring high-quality components and solutions.
We stock LCD displays ranging from 1.3’’ to 65’’, ready for immediate delivery to meet both small-scale and large-scale project needs.
Discontinued modules are often difficult to source. ANDE Electronics provides access to hard-to-find LCD stock, helping clients complete projects without delays.
Our team assists with LCD screen selection and integration, offering guidance to make sure the right display fits your project requirements.
We offer enhancements and add-ons such as touch screen overlays, driver boards, and highlighted features.
ANDE Electronics provides custom touch solutions, allowing clients to upgrade standard LCD modules with touch functionality tailored to specific applications.
Panel size: 12.1 inches, 15.0 inches, 17.0 inches, 19.0 inches, 21.5 inches
Resolution: 800*600, 640*480, 1024*768
Brightness: 350nit, 400nit, 500nit, 600nit, 700nit
Supported colors: 262K/16.7M 262K/16.2M
Working temperature: -30 ~70°C -20 ~70°C 0 ~ 50 °C
Touch mode: Resistive screen
Interface: LVDS (supports HDMI adapter board)
Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.
Panel size: 10.4 inches, 12.1 inches, 15 inches
Resolution: 640*480, 1280*800, 1024*768
Brightness: 350nit, 400nit, 550nit, 1000nit, 1500nit
Supported colors: 262K/16.2M
Working temperature: -30 ~ 80 °C -30 ~ 70 °C -20 ~ 70 °C
Touch mode: Resistive screen Capacitive screen
Interface: LVDS, TTL (supports HDMI adapter board)
Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.
