LQ064V3DG01
LQ064V3DG01
LQ064V3DG01
LQ064V3DG01
LQ064V3DG01
  • Sharp LQ064V3DG01
  • Sharp LQ064V3DG01
  • Sharp LQ064V3DG01
  • Sharp LQ064V3DG01
  • Sharp LQ064V3DG01
LQ064V3DG01
Size
6.4"
Resolution
640×480
CR
350:1
Brightness
350
Interface
TTL
Max Ratings
Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
Certification
ISO14001:2015 Certification ISO 45001:2018 Certification ISO 9001:2015 Certification
Delivery
Delivery
Payment
Payment

{{title}}
Price not available? Fill in the information below to send a quick RFQ, and we will respond promptly
{{ isClicked ? 'Submitted' : 'Submit RFQ' }}

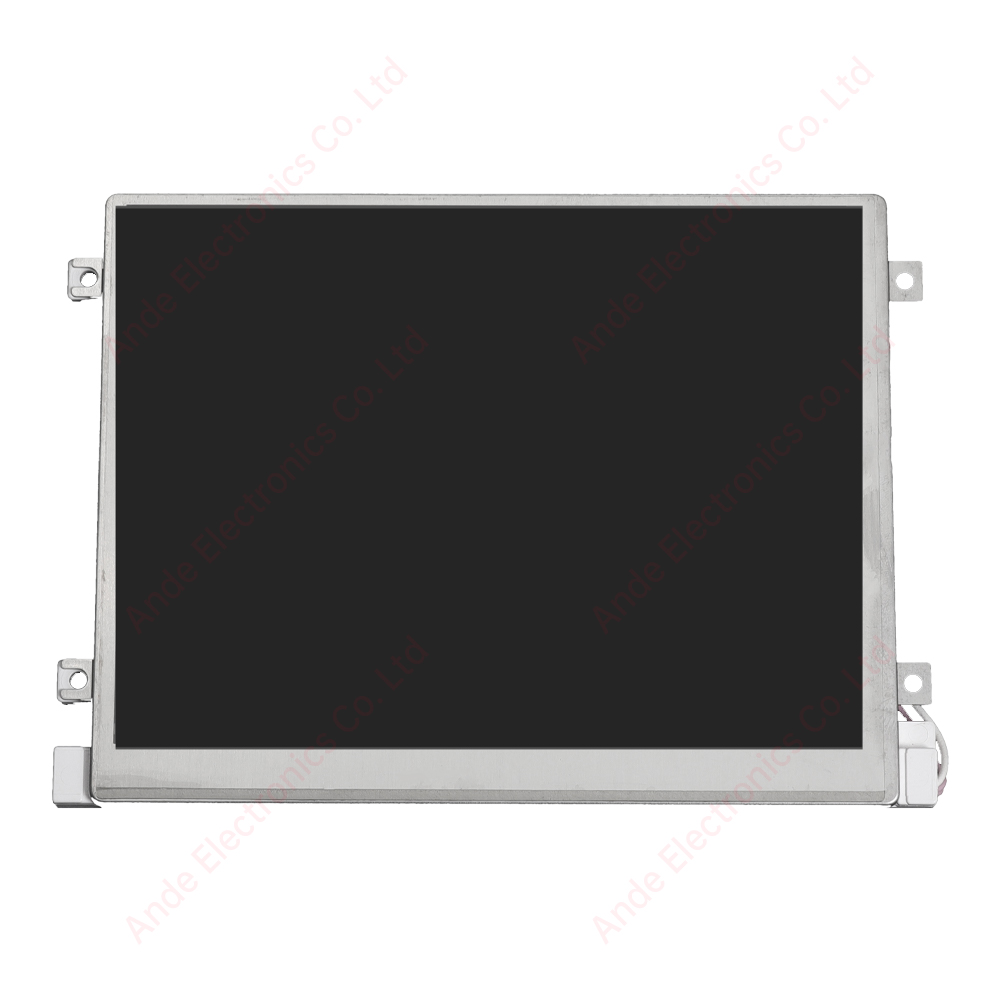

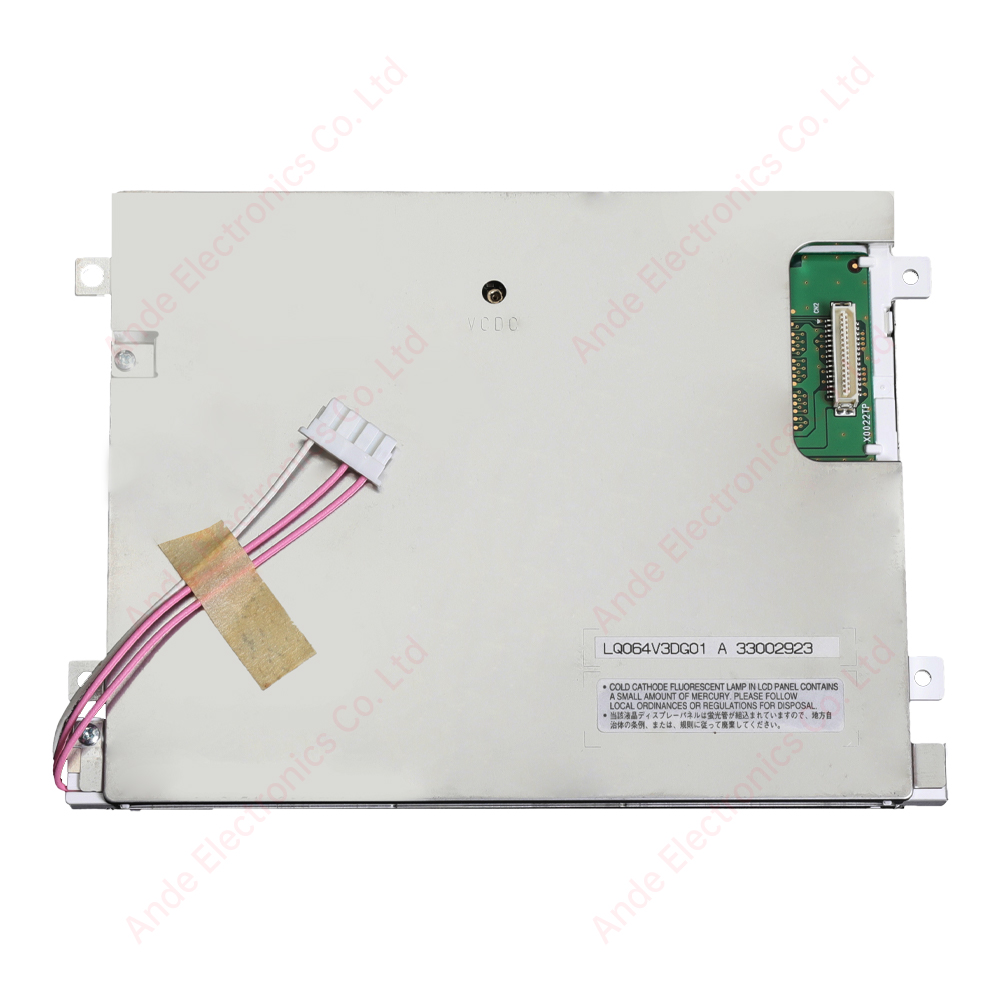

LQ064V3DG01 6.4 Inch VGA Industrial TFT LCD Display Module

The LQ064V3DG01 is a reliable industrial TFT LCD module developed by Sharp for applications requiring stable operation in harsh environments. Its VGA resolution provides clear image rendering while the anti-glare surface improves readability under various lighting conditions. With a wide operating temperature range from -30°C to +80°C and a CCFL backlight rated for 50,000 hours, the module is well suited for industrial control equipment, medical devices, transportation systems and embedded industrial computers.

Specifications
Data Sheet
Advantages
Solutions

1.Decades of Experience

Supplying LCD displays since 1998, ANDE Electronics has built extensive expertise and a reliable network of manufacturers, ensuring high-quality components and solutions.

2.Wide Inventory

We stock LCD displays ranging from 1.3’’ to 65’’, ready for immediate delivery to meet both small-scale and large-scale project needs.

3.Hard-to-Find LCD Stock

Discontinued modules are often difficult to source. ANDE Electronics provides access to hard-to-find LCD stock, helping clients complete projects without delays.

4.Solution Support

Our team assists with LCD screen selection and integration, offering guidance to make sure the right display fits your project requirements.

5.Technical Services

We offer enhancements and add-ons such as touch screen overlays, driver boards, and highlighted features.

6.LCD Touch Sreen Customization

ANDE Electronics provides custom touch solutions, allowing clients to upgrade standard LCD modules with touch functionality tailored to specific applications.

Solutions overview / Healthcare / Manufacturering / New energy / Enterprise

Medical display solutions (12.1"/15"/17"/19"/21.5")

Panel size: 12.1 inches, 15.0 inches, 17.0 inches, 19.0 inches, 21.5 inches

Resolution: 800*600, 640*480, 1024*768

Brightness: 350nit, 400nit, 500nit, 600nit, 700nit

Supported colors: 262K/16.7M 262K/16.2M

Working temperature: -30 ~70°C -20 ~70°C 0 ~ 50 °C

Touch mode: Resistive screen

Interface: LVDS (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Industrial 10.4"/12.1"/15" financial/industrial control monitor

Panel size: 10.4 inches, 12.1 inches, 15 inches

Resolution: 640*480, 1280*800, 1024*768

Brightness: 350nit, 400nit, 550nit, 1000nit, 1500nit

Supported colors: 262K/16.2M

Working temperature: -30 ~ 80 °C -30 ~ 70 °C -20 ~ 70 °C

Touch mode: Resistive screen Capacitive screen

Interface: LVDS, TTL (supports HDMI adapter board)

Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.

Product Overview

  • The Sharp LQ064V3DG01 is a 6.4-inch VGA TFT LCD module developed for industrial and embedded display applications requiring a compact display with proven reliability.
  • With a native resolution of 640 × 480 pixels and a 4:3 aspect ratio, the module is particularly suitable for legacy industrial equipment and systems designed around traditional VGA display formats.
  • The display uses a parallel 18-bit RGB interface and CCFL backlight technology. Its 130.56 × 97.92 mm active area, anti-glare surface and wide operating temperature capability make it a practical option for industrial HMI systems, medical equipment, transportation displays and LCD replacement projects.

Key Features

6.4-Inch Industrial TFT LCD Module
  • Provides a compact display solution for industrial equipment, embedded systems, medical devices and professional terminals.
640 × 480 VGA Resolution
  • Provides clear image presentation using the widely supported VGA resolution and traditional 4:3 display format.
350 cd/m² Brightness
  • Provides suitable visibility for indoor industrial equipment and professional display applications.
350:1 Contrast Ratio
  • Provides clear image separation and reliable graphical display performance.
18-Bit Parallel RGB Interface
  • Supports parallel RGB signal transmission and integration with legacy display controllers.
CCFL Backlight Technology
  • Uses a proven CCFL backlight architecture for legacy industrial display applications.
Wide Temperature Operation
  • Supports operation from -30°C to +80°C according to the Andesource product specification.
Anti-Glare Surface
  • Helps reduce reflections and improves readability under different lighting conditions.
Compact 6.4-Inch Form Factor
  • Provides a suitable replacement option for older industrial systems using 6.4-inch VGA displays.
Image Inversion Capability
  • Supports flexible mounting configurations through image inversion functions.
Industrial Reliability
  • Designed for long-term use in industrial and professional equipment.
Legacy LCD Replacement Solution
  • Suitable for equipment maintenance and replacement projects where the original Sharp display is difficult to source.

Applications

Industrial Automation Equipment
  • Suitable for machine control systems, factory automation equipment, PLC interfaces and industrial HMIs.
Industrial HMI Systems
  • Ideal for control panels and operator interfaces based on traditional VGA display architectures.
Legacy Equipment Maintenance
  • Suitable for replacing obsolete or discontinued 6.4-inch VGA TFT LCD modules in existing equipment.
Medical Equipment Displays
  • Applicable to medical instruments, monitoring equipment and professional healthcare systems.
Transportation Display Systems
  • Suitable for vehicle, railway and transportation equipment requiring compact industrial displays.
Embedded Industrial Computers
  • Applicable to embedded computers, industrial controllers and legacy computing platforms.
Measurement and Inspection Equipment
  • Suitable for testing instruments, laboratory equipment and industrial inspection systems.
Security and Monitoring Equipment
  • Applicable to surveillance terminals, security equipment and control systems.
OEM and ODM Display Projects
  • Suitable for new product development, display replacement, equipment refurbishment and customized LCD sourcing.

Why Choose Andesource

  • Professional supplier of industrial LCD displays and embedded modules
  • Original Sharp LCD module sourcing
  • Global sourcing and supply chain support
  • Engineering and integration assistance
  • Technical documentation available
  • LCD replacement and cross-reference solutions
  • Flexible order quantities
  • Competitive pricing for OEMs and distributors
  • Fast international shipping
  • OEM and ODM customization support

FAQ

What is the LQ064V3DG01 LCD module?
  • The LQ064V3DG01 is a 6.4-inch Sharp TFT LCD module designed for industrial equipment, embedded systems, medical devices, transportation systems and legacy display applications.
What resolution does the LQ064V3DG01 support?
  • The module supports a 640 × 480 VGA resolution.
What interface does the LQ064V3DG01 use?
  • The module uses a parallel RGB interface with an 18-bit color configuration and 31-pin connection.
What is the brightness of the LQ064V3DG01?
  • The typical brightness is approximately 350 cd/m².
What type of backlight does the LQ064V3DG01 use?
  • The LQ064V3DG01 uses a CCFL backlight with a specified backlight lifetime of approximately 50,000 hours.
What is the operating temperature range of LQ064V3DG01?
  • The Andesource product page specifies an operating temperature range of -30°C to +80°C.
What are the advantages of LQ064V3DG01?
  • The module offers a compact 6.4-inch form factor, 640 × 480 VGA resolution, 350 cd/m² brightness, parallel RGB interface, CCFL backlight, anti-glare surface and wide-temperature operation.
Is LQ064V3DG01 suitable for LCD replacement?
  • Yes. Because the model is a legacy Sharp 6.4-inch VGA TFT LCD, it can be particularly relevant for maintenance and replacement projects involving older industrial equipment. Major distributors list the part as obsolete or withdrawn, making sourcing and replacement support important.
What applications is LQ064V3DG01 suitable for?
  • The module is suitable for industrial HMI systems, industrial automation equipment, embedded computers, medical equipment, transportation systems, measurement equipment and legacy industrial displays.
Can Andesource provide replacement solutions for LQ064V3DG01?
  • Yes. Andesource provides Sharp LCD sourcing, replacement and cross-reference solutions, technical documentation, engineering assistance and global supply support.
Can Andesource support OEM and ODM display projects?
  • Yes. Andesource supports OEM and ODM customers with LCD sourcing, display replacement, engineering assistance, touch-screen integration and customized display solutions.
