Category
PMIC - AC DC Converters, Offline Switchers
Manufacturer
Power Integrations
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

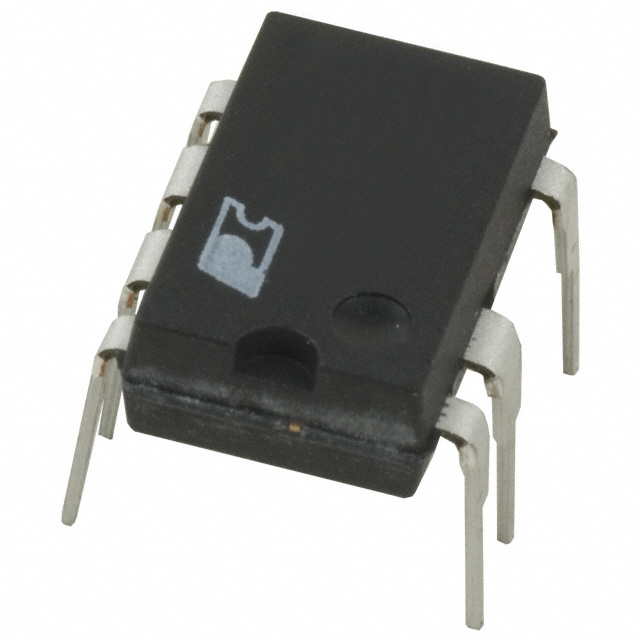

| Part Number: | LNK625PG |
| Description: | IC OFFLINE SWIT OTP OCP CV 8DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Mounting Type | Through Hole |
| Detailed Description | Converter Offline Flyback Topology 100kHz DIP-8C |
| Other Names | 596-1252-5 |
| Output Isolation | Isolated |
| Meta Part Number | 596-1252-5-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Control Features | - |
| Frequency - Switching | 100kHz |
| Power (Watts) | 13.5W |
| Packaging | Tube |
| Internal Switch(s) | Yes |
| Series | LinkSwitch®-CV |
| Manufacturer Standard Lead Time | 16 Weeks |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300, 7.62mm), 7 Leads |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Topology | Flyback |
| Supplier Device Package | DIP-8C |
| Voltage - Breakdown | 725V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Duty Cycle | 54% |
| Voltage - Supply (Vcc/Vdd) | - |
Data sheet: Work in prgress, stay tuned!
