PMIC - AC DC Converters, Offline Switchers
Manufacturer
Power Integrations
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |
| Part Number: | LNK305DG |

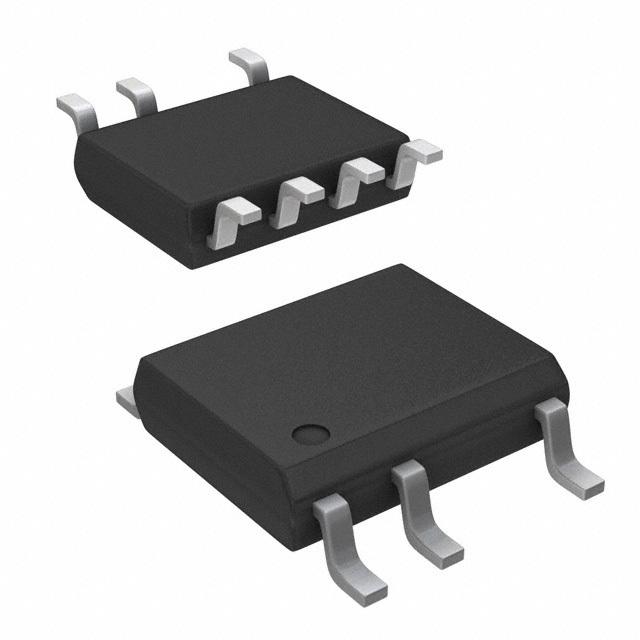

| Description: | IC OFFLINE SWIT OCP 8SOIC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Voltage - Supply (Vcc/Vdd) | - |
| Package / Case | 8-SOIC (0.154, 3.90mm Width), 7 Leads |
| Detailed Description | Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz SO-8C |
| Series | LinkSwitch®-TN |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Output Isolation | Non-Isolated |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Other Names | 596-1238-5 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Internal Switch(s) | Yes |
| Topology | Buck, Buck-Boost, Flyback |
| Duty Cycle | 69% |
| Frequency - Switching | 66kHz |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Packaging | Tube |
| Mounting Type | Surface Mount |
| Voltage - Breakdown | 700V |
| Meta Part Number | 596-1238-5-ND |
| Manufacturer Standard Lead Time | 16 Weeks |
| Supplier Device Package | SO-8C |
| Control Features | - |
