Category
PMIC - Voltage Regulators - Linear
Manufacturer
AMI Semiconductor/onsemi
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

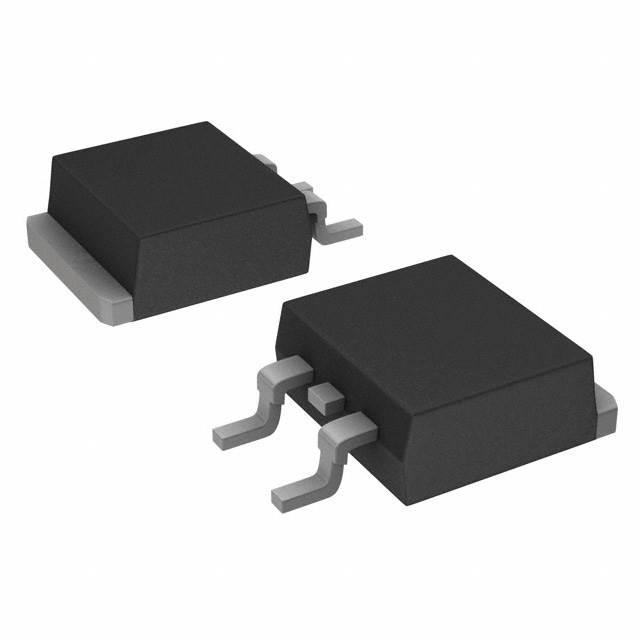

| Part Number: | LM317BD2TG |
| Description: | IC REG LINEAR POS ADJ 1.5A D2PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Voltage - Output (Max) | 37V |
| Output Type | Adjustable |
| Meta Part Number | LM317BD2TGOS-ND |
| Output Configuration | Positive |
| Supplier Device Package | D2PAK |
| Number of Regulators | 1 |
| Other Names | LM317BD2TG-ND "######"LM317BD2TGOS |
| Series | - |
| Protection Features | Over Current, Over Temperature |
| Voltage - Output (Min/Fixed) | 1.2V |
| Manufacturer Standard Lead Time | 18 Weeks |
| PSRR | 80dB ~ 65dB (120Hz) |
| Base Part Number | LM317B |
| Voltage Dropout (Max) | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Tube |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 1.2 V ~ 37 V 1.5A D2PAK |
| Current - Quiescent (Iq) | 10mA |
| Current - Output | 1.5A |
| Mounting Type | Surface Mount |
| Control Features | - |
| Voltage - Input (Max) | 40V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Data sheet: Work in prgress, stay tuned!
