| TYPE | DESCRIPTION |
| Part Number: | ICE2QR2280GXUMA1 |
| Description: | IC CTRLR SMPS QUASI-RESON DSO12 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Topology | Flyback |
| Internal Switch(s) | Yes |

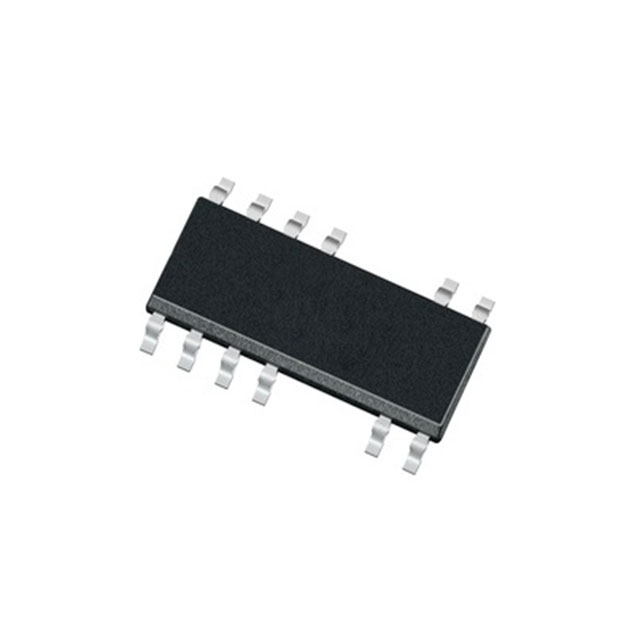

| Supplier Device Package | PG-DSO-12 |
| Duty Cycle | 50% |
| Voltage - Supply (Vcc/Vdd) | 10.5 V ~ 27 V |
| Voltage - Start Up | 18V |
| Power (Watts) | 53W |
| Voltage - Breakdown | 800V |
| Mounting Type | Surface Mount |
| Series | CoolMOS™, CoolSET™-Q1 |
| Detailed Description | Converter Offline Flyback Topology 52kHz PG-DSO-12 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Packaging | Tape & Reel (TR) |
| Manufacturer Standard Lead Time | 20 Weeks |
| Output Isolation | Isolated |
| Meta Part Number | ICE2QR2280GXUMA1TR-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Frequency - Switching | 52kHz |
| Control Features | - |
| Other Names | ICE2QR2280GXUMA1-ND "######"ICE2QR2280GXUMA1TR "######"SP000775242 |
| Package / Case | 12-BSOP (0.295, 7.50mm Width) |
Data sheet: Work in prgress, stay tuned!
