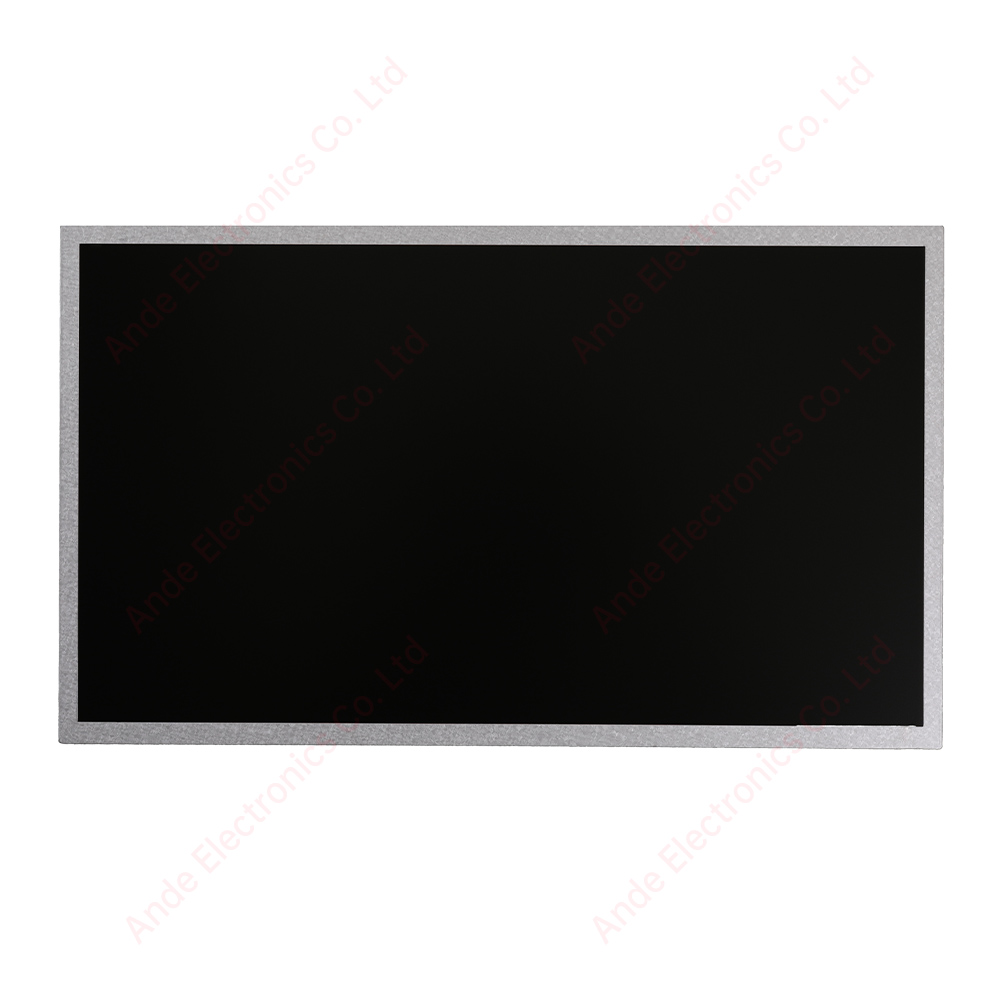

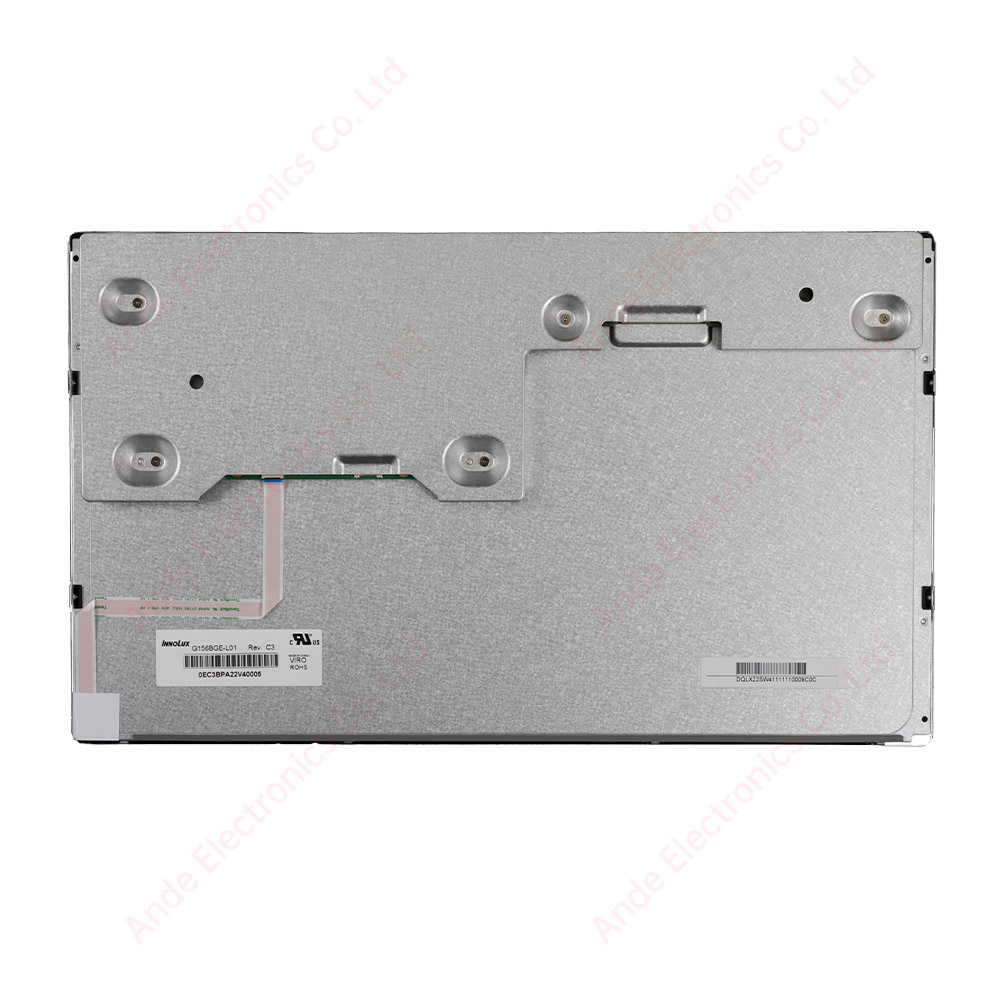

G156BGE-L01 is a 15.6-inch TFT LCD module manufactured by Innolux, designed for industrial and embedded display applications. It features 1366 × 768 WXGA resolution, 300 cd/m² brightness, and a 30-pin LVDS interface for reliable system integration. The module integrates a WLED backlight with built-in LED driver, providing stable image performance and long operating lifetime. With a standard 16:9 widescreen format, G156BGE-L01 is suitable for industrial PCs, automation equipment, medical systems, embedded terminals, and display replacement projects. Andesource provides G156BGE-L01 sourcing, replacement matching, cross-reference support, and long-term supply solutions.
Data sheet:
G156BGE-L01.pdf
ANDE LCD Brochure.pdf
Supplying LCD displays since 1998, ANDE Electronics has built extensive expertise and a reliable network of manufacturers, ensuring high-quality components and solutions.
We stock LCD displays ranging from 1.3’’ to 65’’, ready for immediate delivery to meet both small-scale and large-scale project needs.
Discontinued modules are often difficult to source. ANDE Electronics provides access to hard-to-find LCD stock, helping clients complete projects without delays.
Our team assists with LCD screen selection and integration, offering guidance to make sure the right display fits your project requirements.
We offer enhancements and add-ons such as touch screen overlays, driver boards, and highlighted features.
ANDE Electronics provides custom touch solutions, allowing clients to upgrade standard LCD modules with touch functionality tailored to specific applications.
Panel size: 12.1 inches, 15.0 inches, 17.0 inches, 19.0 inches, 21.5 inches
Resolution: 800*600, 640*480, 1024*768
Brightness: 350nit, 400nit, 500nit, 600nit, 700nit
Supported colors: 262K/16.7M 262K/16.2M
Working temperature: -30 ~70°C -20 ~70°C 0 ~ 50 °C
Touch mode: Resistive screen
Interface: LVDS (supports HDMI adapter board)
Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.
Panel size: 10.4 inches, 12.1 inches, 15 inches
Resolution: 640*480, 1280*800, 1024*768
Brightness: 350nit, 400nit, 550nit, 1000nit, 1500nit
Supported colors: 262K/16.2M
Working temperature: -30 ~ 80 °C -30 ~ 70 °C -20 ~ 70 °C
Touch mode: Resistive screen Capacitive screen
Interface: LVDS, TTL (supports HDMI adapter board)
Representative solutions: RK3588, RK3568, RK3288, JETSON, Intel H610/Q670, etc.
