Category
Embedded - CPLDs (Complex Programmable Logic Devices)
Manufacturer
Altera (Intel)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

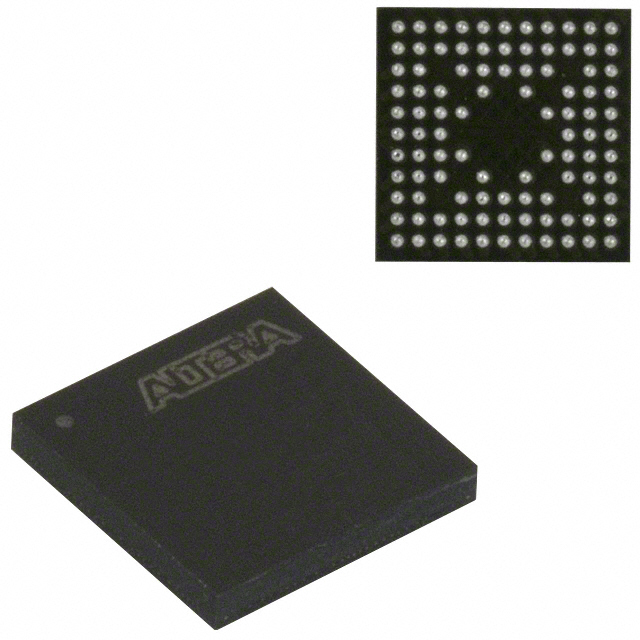

| Part Number: | EPM570M100I5N |
| Description: | IC CPLD 440MC 5.4NS 100MBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Mounting Type | Surface Mount |
| Manufacturer Standard Lead Time | 8 Weeks |
| Programmable Type | In System Programmable |
| Packaging | Tray |
| Delay Time tpd(1) Max | 5.4ns |
| Meta Part Number | 544-1714-ND |
| Other Names | 544-1714 |
| Base Part Number | EPM570 |
| Voltage Supply - Internal | 2.5V, 3.3V |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Supplier Device Package | 100-MBGA (6x6) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Number of Macrocells | 440 |
| Number of I/O | 76 |
| Package / Case | 100-TFBGA |
| Series | MAX® II |
| Number of Logic Elements/Blocks | 570 |
Data sheet: Work in prgress, stay tuned!
