Category
Transistors - FETs, MOSFETs - Single
Manufacturer
EPC
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

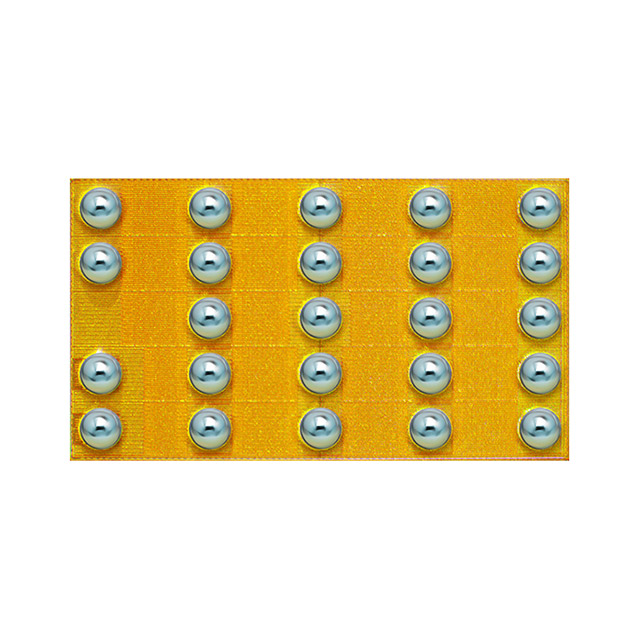

| Part Number: | EPC2034 |
| Description: | TRANS GAN 200V 48A BUMPED DIE |
| Lead Free Status / RoHS Status: | |
| Mounting Type | Surface Mount |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 20A, 5V |
| Series | eGaN® |
| FET Type | N-Channel |
| Meta Part Number | 917-1132-6-ND |
| Manufacturer Standard Lead Time | 12 Weeks |
| FET Feature | - |
| Gate Charge (Qg) (Max) @ Vgs | 8.8nC @ 5V |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 2.5V @ 7mA |
| Input Capacitance (Ciss) (Max) @ Vds | 950pF @ 100V |
| Drain to Source Voltage (Vdss) | 200V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Other Names | 917-1132-6 |
| Current - Continuous Drain (Id) @ 25°C | 48A (Ta) |
| Package / Case | Die |
| Packaging | Digi-Reel® |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Vgs (Max) | +6V, -4V |
| Technology | GaNFET (Gallium Nitride) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Detailed Description | N-Channel 200V 48A (Ta) Surface Mount Die |
| Supplier Device Package | Die |
Data sheet: Work in prgress, stay tuned!
