| TYPE | DESCRIPTION |
| Part Number: | CM200DX-24S |

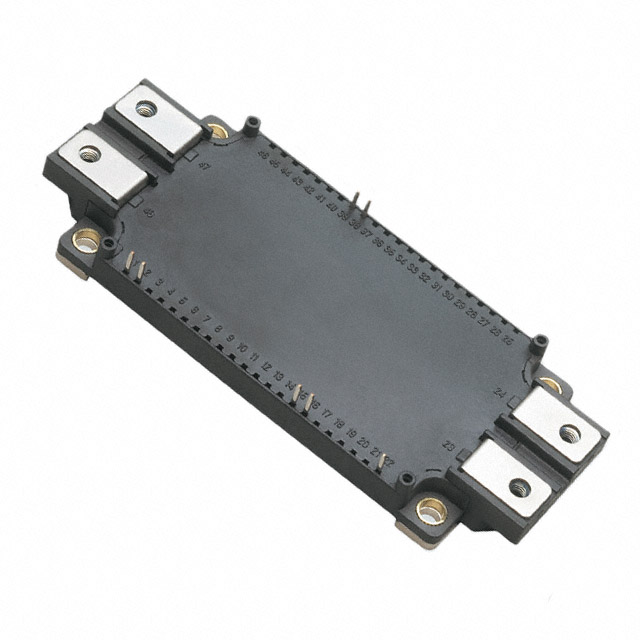

| Description: | IGBT MOD DUAL 1200V 200A NX SER |
| Lead Free Status / RoHS Status: | |
| IGBT Type | - |
| Configuration | Half Bridge |
| Input Capacitance (Cies) @ Vce | 20nF @ 10V |
| Other Names | 835-1123 CM200DX24S |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 200A |
| Mounting Type | Chassis Mount |
| Detailed Description | IGBT Module Half Bridge 1200V 200A 1500W Chassis Mount Module |
| Package / Case | Module |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Meta Part Number | 835-1123-ND |
| Input | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector Cutoff (Max) | 1mA |
| Series | IGBTMOD™ |
| Power - Max | 1500W |
| Current - Collector (Ic) (Max) | 200A |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Supplier Device Package | Module |
