Category
Transistors - FETs, MOSFETs - Single
Manufacturer
Nexperia
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

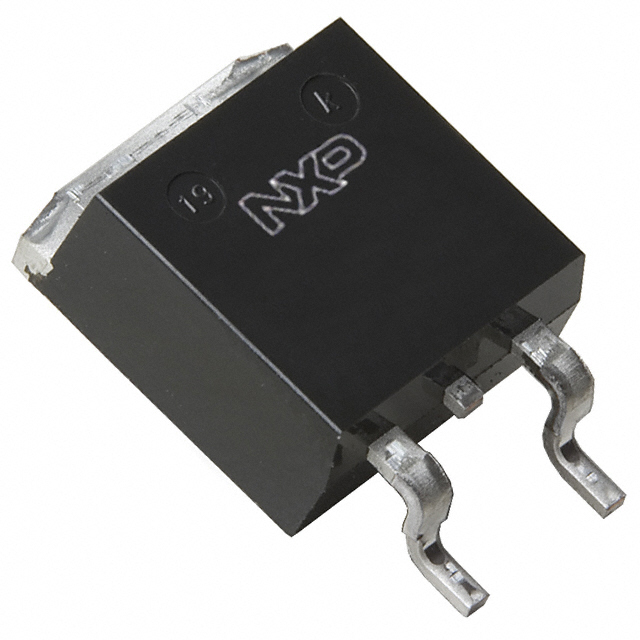

| Part Number: | BUK769R6-80E,118 |
| Description: | MOSFET N-CH 80V 75A D2PAK |
| Lead Free Status / RoHS Status: | |
| Series | Automotive, AEC-Q101, TrenchMOS™ |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Packaging | Cut Tape (CT) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Drain to Source Voltage (Vdss) | 80V |
| Power Dissipation (Max) | 182W (Tc) |
| Gate Charge (Qg) (Max) @ Vgs | 59.8nC @ 10V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 4682pF @ 25V |
| Rds On (Max) @ Id, Vgs | 9.6 mOhm @ 20A, 10V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| FET Feature | - |
| Meta Part Number | 1727-1092-1-ND |
| Current - Continuous Drain (Id) @ 25°C | 75A (Tc) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK |
| Vgs (Max) | ±20V |
| Other Names | 1727-1092-1 568-10245-1 568-10245-1-ND |
| Detailed Description | N-Channel 80V 75A (Tc) 182W (Tc) Surface Mount D2PAK |
| Technology | MOSFET (Metal Oxide) |
Data sheet: Work in prgress, stay tuned!
