Category
PMIC - Voltage Regulators - Linear
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

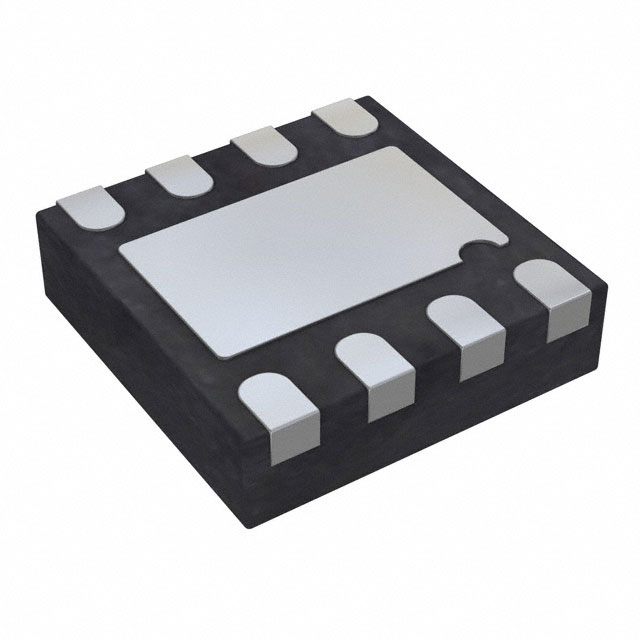

| Part Number: | ADM7171ACPZ-3.3-R7 |
| Description: | IC REG LINEAR 3.3V 1A 8LFCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Base Part Number | ADM7171 |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Quiescent (Iq) | 2mA |
| Series | - |
| Number of Regulators | 1 |
| Protection Features | Over Current, Over Temperature |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| PSRR | - |
| Voltage Dropout (Max) | - |
| Other Names | ADM7171ACPZ-3.3-R7-ND "######"ADM7171ACPZ-3.3-R7TR |
| Control Features | Enable, Soft Start |
| Output Type | Fixed |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Detailed Description | Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 1A 8-LFCSP-WD (3x3) |
| Voltage - Output (Max) | - |
| Manufacturer Standard Lead Time | 19 Weeks |
| Current - Output | 1A |
| Packaging | Tape & Reel (TR) |
| Voltage - Input (Max) | 6.5V |
| Meta Part Number | ADM7171ACPZ-3.3-R7TR-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Mounting Type | Surface Mount |
| Output Configuration | Positive |
| Voltage - Output (Min/Fixed) | 3.3V |
| Current - Supply (Max) | 6.3mA |
Data sheet: Work in prgress, stay tuned!
