Category
Interface - Analog Switches, Multiplexers, Demultiplexers
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

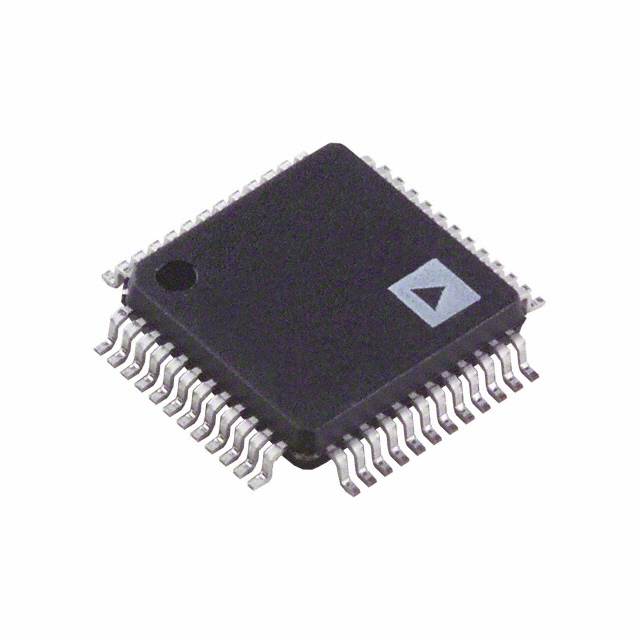

| Part Number: | ADG731BSUZ |
| Description: | IC MULTIPLEXER 32X1 48TQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Charge Injection | 1pC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Channel-to-Channel Matching (ΔRon) | - |
| -3db Bandwidth | 18MHz |
| Switch Time (Ton, Toff) (Max) | - |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Crosstalk | -72dB @ 1MHz |
| Detailed Description | 1 Circuit IC Switch 32:1 5.5 Ohm 48-TQFP (7x7) |
| Base Part Number | ADG731 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Multiplexer/Demultiplexer Circuit | 32:1 |
| Switch Circuit | - |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 260pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Voltage - Supply, Single (V+) | 1.8 V ~ 5.5 V |
| Package / Case | 48-TQFP |
| Meta Part Number | ADG731BSUZ-ND |
| Series | - |
| Manufacturer Standard Lead Time | 7 Weeks |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Packaging | Tray |
| Number of Circuits | 1 |
| Supplier Device Package | 48-TQFP (7x7) |
| On-State Resistance (Max) | 5.5 Ohm |
Data sheet: Work in prgress, stay tuned!
