Category
Data Acquisition - Digital to Analog Converters (DAC)
Manufacturer
ADI (Analog Devices, Inc.)
RoHS
YES
Certification
Delivery
Payment
| TYPE | DESCRIPTION |

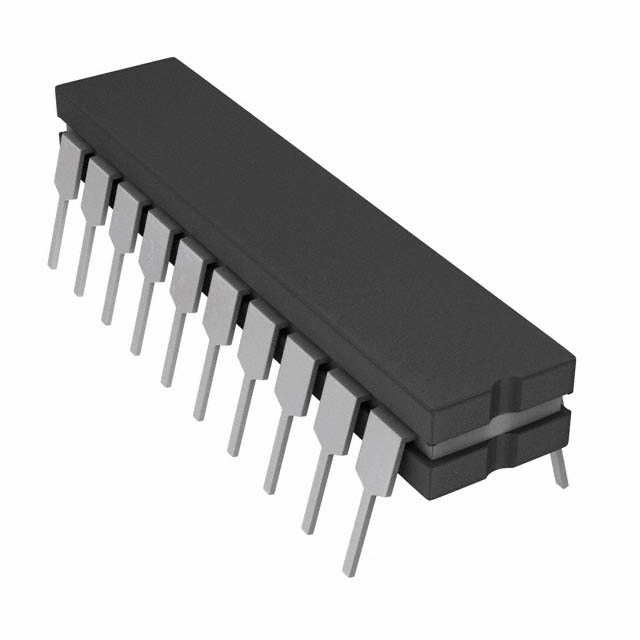

| Part Number: | AD7226BQ |
| Description: | IC DAC 8BIT QUAD W/AMP 20-CDIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Differential Output | No |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Reference Type | External |
| Package / Case | 20-CDIP (0.300, 7.62mm) |
| Number of Bits | 8 |
| Detailed Description | 8 Bit Digital to Analog Converter 4 20-CDIP |
| Manufacturer Standard Lead Time | 7 Weeks |
| Settling Time | 4µs |
| Number of D/A Converters | 4 |
| Voltage - Supply, Analog | 11.4 V ~ 16.5 V, -5V |
| Architecture | R-2R |
| Data Interface | Parallel |
| Meta Part Number | AD7226BQ-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Output Type | Voltage - Buffered |
| Supplier Device Package | 20-CDIP |
| Base Part Number | AD7226 |
| Series | - |
| Voltage - Supply, Digital | 14.25 V ~ 15.75 V |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Tube |
| Mounting Type | Through Hole |
Data sheet: Work in prgress, stay tuned!
