AA150XT11 TFT LCD Module Overview
AA150XT11 is a 15.0-inch color TFT-LCD module integrating an LCD panel, driver ICs, control circuitry, and an LED backlight unit. It features an XGA resolution of 1024 × 768 pixels and supports both 6-bit and 8-bit digital data input, displaying 262K or 16.7 million colors. With a normally white TN display mode, RGB vertical stripe pixel arrangement, and a typical brightness of 1500 cd/m², the module is designed to deliver clear images in applications that require high brightness.
The AA150XT11 uses an LVDS interface to transmit digital data and control signals, with a typical clock frequency of 65 MHz. Its LCD driving voltage is 3.3 V, while the display area measures approximately 304.1 × 228.1 mm. The module also features an anti-glare surface with 3H hard coating, a wide horizontal viewing angle, and a replaceable edge-lit LED backlight.
AA150XT11 Key Specifications
Below are the key specifications of the AA150XT11, providing a clear overview of its performance and application requirements.
Parameter | Specification |
Model | AA150XT11 |
Brand | |
Display Size | 15" |
Composition | LCM |
Resolution | 1024(RGB)×768, XGA 85PPI |
Luminance | 1500 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 80/80/60/80 |
Color Depth | 262K/16.7M 50% NTSC |
Light Source | 7S4P×2CN WLED , 100K hours , Without Driver |
Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 308.1(W)×232.1(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 1.29Kgs (Typ.) |
Outline Size | 326(W)×255(H) ×17.1(D) mm |
Max Ratings | Operating Temp.: -20 ~ 70 °C ; |
AA150XT11 Features and Benefits
This section highlights the key features and benefits of the AA150XT11. These advantages help engineers evaluate the module for different display applications and system designs.
l 15.0-Inch TFT-LCD: Provides a large 15.0-inch display area for clear and detailed visual information.
l XGA Resolution: Supports 1024 × 768 pixels for displaying detailed images and text.
l Wide Color Support: Supports 262K colors with 6-bit input or 16.7M colors with 8-bit input for different image requirements.
l Digital LVDS Interface: Uses LVDS for stable transmission of digital display data and control signals.
l 65 MHz Typical Clock: Supports a typical 65 MHz LVDS clock for reliable display data transmission.
l 3.3 V LCD Driving Voltage: Uses a 3.3 V power supply for LCD driving, simplifying system integration.
l Integrated Driver ICs: Combines the LCD panel with driver ICs and control circuitry in one module.
l Built-In Backlight Unit: Includes a backlight unit to provide consistent illumination across the display.
l RGB Vertical Stripe: Uses an RGB vertical stripe pixel arrangement for accurate color reproduction.
l Digital Signal Input: Accepts digital data and control signals, reducing the need for analog display signal conversion.
AA150XT11 Pinout and Connector Configuration
AA150XT11 uses a standard 20-pin LVDS signal interface (typically an FI-SE20P-HFE or compatible connector). The following table shows the pin definitions and connection configuration:
Pin Number | Symbol | Pin Number | Symbol |
1 | VCC | 11 | Link 2- |
2 | VCC | 12 | Link 2+ |
3 | GND | 13 | GND |
4 | GND | 14 | CLKIN- |
5 | Link 0- | 15 | CLKIN+ |
6 | Link 0+ | 16 | GND |
7 | GND | 17 | Link3- |
8 | Link 1- | 18 | Link3+ |
9 | Link 1+ | 19 | MODE |
10 | GND | 20 | SC |

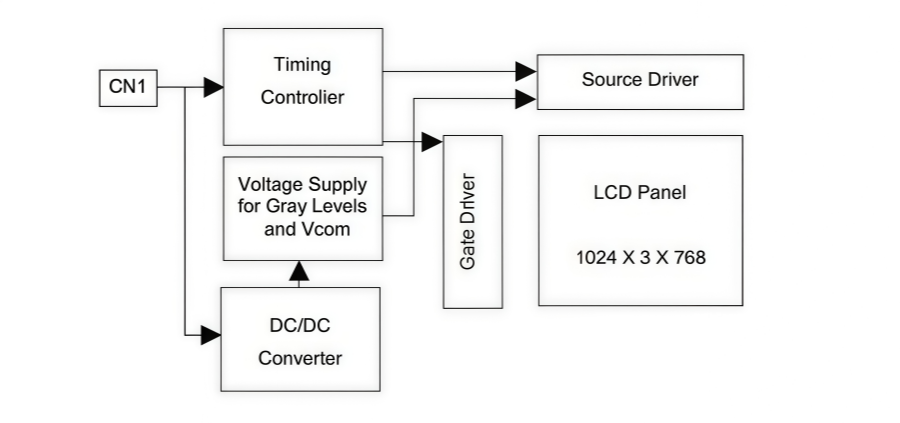

AA150XT11 Block Diagram
External signals and power enter through connector CN1 and follow two main paths:
l Signal and Control Path: LVDS image data and control signals enter the Timing Controller (TCON), where they are decoded and converted before being sent to the Source Driver and Gate Driver.
l Power and Voltage Path: The input power is processed by the internal DC/DC converter and supplied to the gray-level and VCOM voltage circuits, providing precise voltages for the drivers and LCD panel.
The Source Driver and Gate Driver then drive the 1024 × 3 × 768 pixel array of the LCD panel to produce high-resolution images.
AA150XT11 for Industrial Use Cases
AA150XT11 has a relatively large display area and digital signal transmission, so it's suitable for industrial equipment that needs clear and stable visual information.
1. Industrial Control Panels
AA150XT11 can be used as the main display for industrial control systems, providing operators with real-time equipment status, parameters, alarms, and control information.
l PLC control panels
l Factory automation systems
l Production line controllers
2. Machine Vision Equipment
The 15.0-inch XGA screen provides enough display area for viewing inspection images, measurement results, and machine status information.
l Automated optical inspection (AOI) equipment
l Industrial inspection machines
3. CNC and Machine Tools
The module can serve as an operator display for CNC equipment, showing machining parameters, tool information, operating status, and error messages.
l CNC machining centers
l Milling machines
l Precision machine tools
4. Industrial Monitoring Systems
AA150XT11 can display real-time operating data and system conditions, helping operators monitor equipment and production processes.
l Factory monitoring terminals
l Process monitoring systems
l Energy monitoring equipment
AA150XT11 for Outdoor High Brightness Applications
AA150XT11 LCD is also good for applications where screen visibility is important under strong ambient light.
1. Outdoor Industrial Control
The high-brightness display can help operators read equipment status, parameters, and alarms in outdoor or brightly lit industrial environments.
l Outdoor control cabinets
l Industrial automation equipment
2. Outdoor Kiosks and Information Terminals
The high-brightness panel can be used to improve screen readability in outdoor public areas, where sunlight and changing lighting conditions may affect conventional displays.
l Information kiosks
l Ticketing terminals
l Self-service machines
3. Outdoor Monitoring Systems
AA150XT11 can display real-time monitoring data, equipment status, and system alerts where reliable visibility is required.
l Security monitoring terminals
l Environmental monitoring systems
l Remote equipment monitoring

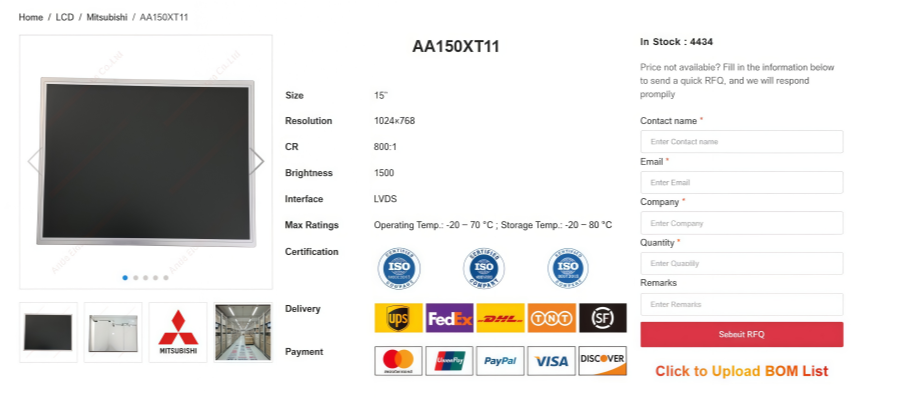

AA150XT11 Datasheet
You can refer to the official datasheet of Mitsubishi AA150XT11 LCD to see more details:

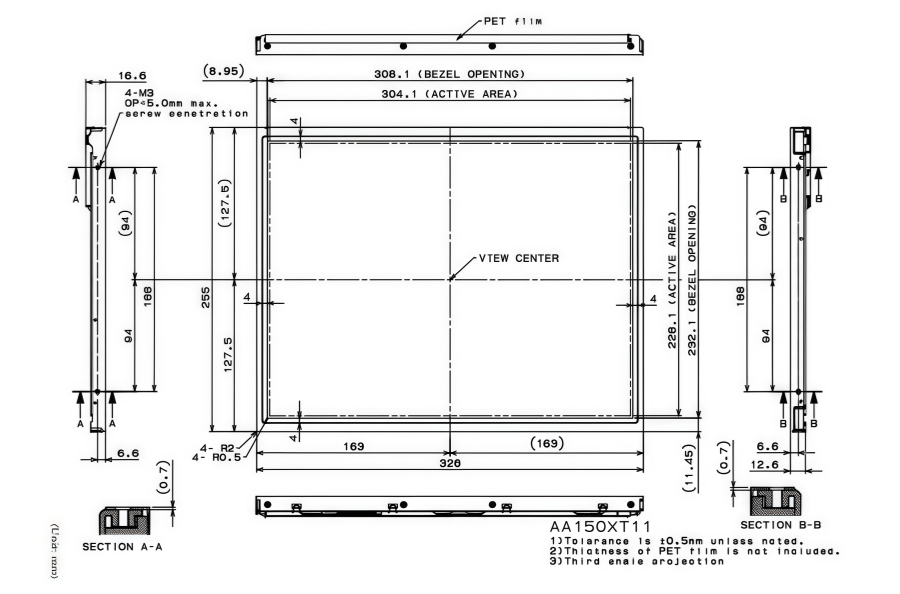

AA150XT11 Dimensions and Mechanical Design
AA150XT11’s dimensions and mechanical design information are mainly used to evaluate installation space, structural fit, and device compatibility.
How to Integrate AA150XT11 into a Display System?
Integrating the AA150XT11 LCD panel into a display system mainly involves signal matching, power management, and mechanical mounting. First, prepare an LVDS controller board that supports XGA (1024 × 768) resolution. Connect the 3.3V main power, LVDS differential data signals (IN0± to IN3±), and clock signals (CLKIN±) through the 20-pin connector. The backlight driver should use a separate power supply, such as 12V, with the PWM dimming and enable pins properly connected for brightness and on/off control.
During hardware wiring and testing, follow the specified power-on sequence to prevent damage to the internal logic circuits caused by signals being applied before power. The LVDS differential lines should maintain 100-ohm impedance matching and proper shielding to reduce EMI and image interference. For mechanical installation, use the mounting holes on the panel frame for secure fixing. For high-brightness industrial environments, an anti-glare protective glass panel or a projected capacitive (PCAP) touchscreen can also be added.
A150XT11 Operating Precautions
1) Please be sure to turn off the power supply before connecting and disconnecting the signal input cable.
2) Please do not change the variable resistance settings in the LCD module. They are adjusted to the most suitable value. If they are changed, the LCD may not satisfy the characteristics specification.
3) The interface signal speed is very high. Please pay attention to transmission line design and other high-speed signal precautions to satisfy signal specifications.
4) Condensation might occur on the surface and inside of the LCD module in case of sudden change of ambient temperature. Please take care so as not to cause any damage mentioned in (1)-d.
5) Please pay attention not to display the same pattern for a very long time. The image might stick on the LCD. Even if image sticking happens, it may disappear as the operation time proceeds.
6) Please obey the same safety instructions as those being prepared for ordinary electronic products.
