KOE TX26D202VM0BAA is a 10.1’’ WUXGA TFT-LCD display module with a 16:10 wide-screen format and a resolution of 1920 × 1200 pixels. It adopts amorphous silicon (a-Si) TFT LCD technology with an RGB vertical stripe pixel arrangement, where red, green, and blue sub-pixels are sequentially arranged to deliver high-quality color images. The module is suitable for industrial and outdoor high-brightness display applications.
TX26D202VM0BAA features COG (Chip On Glass) packaging technology, which integrates the driver IC directly onto the glass substrate to reduce module size and improve reliability. It also adopts an LED backlight system and complies with RoHS environmental standards, meeting the requirements of modern electronic devices for compact design, stable operation, and eco-friendly solutions.
TX26D202VM0BAA Key Specifications
The following table provides an overview of the key specifications of the TX26D202VM0BAA LCD display module.
Parameter | Value |
Brand | |
Model | TX26D202VM0BAA |
Size | 10.1" |
Composition | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1200, WUXGA 224PPI |
Luminance | 800 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewangle | 85/85/85/85 |
Color Depth | 16.7M 55% NTSC |
Light Source | WLED , 40K hours , With LED Driver |
Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector |
Active Area | 217.44(W)×135.9(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 284g |
Outline Size | 232.1(W)×153.2(H) ×7.62(D) mm |
Vibration Level | 2.0G (19.6 m/s²) |
Max Ratings | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
TX26D202VM0BAA: Display Technologies Behind Stable Performance
TX26D202VM0BAA combines high resolution, IPS wide viewing angle technology, and Normally Black display mode to deliver stable and detailed image performance.
High Resolution Display for Detailed Images
TX26D202VM0BAA features a 1920 × 1200 WUXGA resolution, providing a larger display area and enhanced information visibility. As a high-resolution industrial LCD display, this WUXGA TFT LCD panel can clearly present industrial parameters, data curves, control menus, and complex graphical interfaces.
IPS Wide Viewing Angle Performance
TX26D202VM0BAA adopts IPS TFT-LCD technology to provide stable color performance and wide viewing angles. Compared with traditional TN panels, the IPS structure reduces brightness variation and color shift when viewed from different angles, ensuring clear and consistent images in various viewing conditions.
Normally Black Display Technology
TX26D202VM0BAA uses a Normally Black display mode, where liquid crystal molecules effectively block the backlight when no power is applied, reducing light leakage and improving black level performance. This design enhances contrast and image depth. For industrial display applications, normally black TFT LCD technology helps improve the readability of complex interfaces and detailed visual information.
How TX26D202VM0BAA Integrates into Systems?

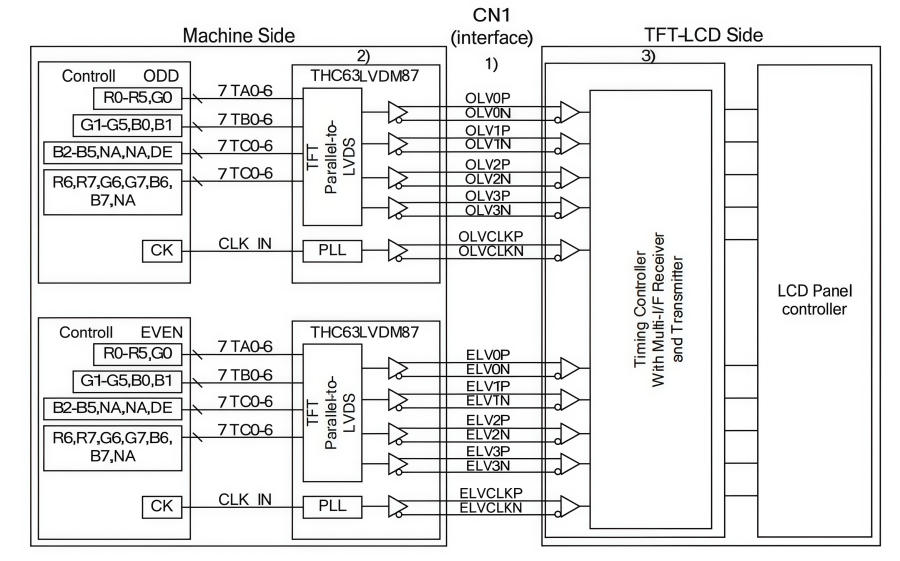

TX26D202VM0BAA integrates a dual-channel LVDS transmission system with a standard 50-pin LCD interface for high-speed image data transfer. The LVDS architecture reduces EMI interference and supports long-distance signal transmission, making it suitable for industrial system integration and stable operation.
In the system, TX26D202VM0BAA receives image data from the main controller through the LVDS interface and processes it through the internal driver circuit for display output. The LVDS industrial LCD panel is compatible with various control boards and display systems, providing a reliable connection solution for industrial equipment.
TX26D202VM0BAA uses a separate power supply design, with a 3.3V operating voltage for the LCD panel and a 12V supply for the LED backlight. Stable power management and proper backlight driver design are important to maintain display quality and prevent display issues caused by voltage fluctuations.

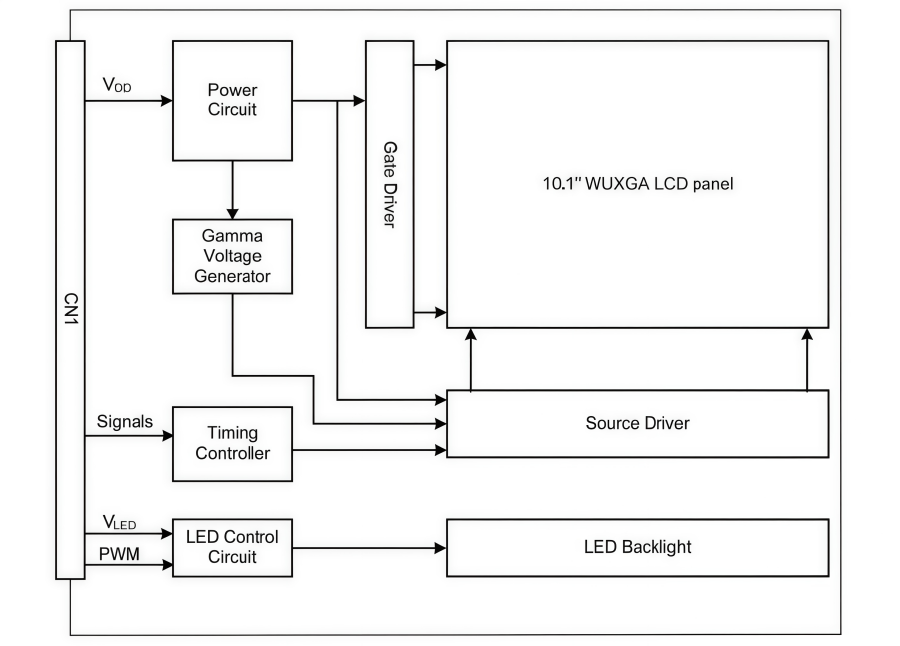

TX26D202VM0BAA Block Diagram
The internal block diagram of TX26D202VM0BAA illustrates the complete operating architecture of the industrial LCD panel. External signals and power are connected to the display module through the CN1 interface. The input VDD voltage is supplied to the power circuit, which powers the gate driver and source driver while also driving the gamma voltage generator to produce reference voltages. Image signals are transmitted to the timing controller (TCON), which generates synchronized control signals. Combined with gamma voltage control, the source driver and gate driver work together to drive the 10.1-inch WUXGA LCD panel for image display.
The backlight system operates independently. The VLED power input and PWM dimming signal from CN1 are sent to the LED control circuit to drive the LED backlight module. This architecture separates the LCD display driving unit from the backlight control unit, allowing independent management of image timing control and brightness adjustment. It helps improve the display stability of the industrial LCD panel and simplifies brightness tuning in industrial systems.
TX26D202VM0BAA Core Features and Advantages
TX26D202VM0BAA LCD is a reliable display solution for various industrial uses. Its main highlights are listed below.
l 10.1-inch a-Si TFT-LCD panel with WUXGA resolution for clear and detailed image display.
l Integrated WLED backlight system with built-in LED driver for simplified system integration.
l Wide operating and storage temperature range from -30°C to 80°C for reliable performance in harsh environments.
l High brightness design enhances visibility in industrial and outdoor applications.
l Supports up to 2.0G (19.6 m/s²) vibration resistance for stable operation in industrial equipment.
l Compact display size and reliable TFT-LCD structure make it suitable for embedded systems and HMI applications.
l Designed for long-term operation with stable display performance in industrial environments.
Outdoor and Industrial Applications of TX26D202VM0BAA
The TX26D202VM0BAA industrial LCD panel features a stable signal transmission scheme and a complete hardware driving architecture. It can operate under complex and harsh environments, making it widely compatible with various outdoor equipment and industrial scenarios.
1. Industrial Automation Equipment
TX26D202VM0BAA is suitable for industrial automation systems. Its LVDS interface, reliable signal transmission, and industrial-grade design make it ideal for displaying machine status, production data, and control information in factory environments.
l PLC control panels
l Industrial HMI (Human Machine Interface) systems
l Factory automation equipment
2. Industrial Inspection and Measurement Equipment
TX26D202VM0BAA can be integrated into inspection and measurement systems. It helps operators view detailed images, measurement results, and inspection data clearly.
l Machine vision inspection systems
l Optical measurement equipment
l Industrial testing instruments
3. Outdoor Monitoring and Control Systems
With strong display stability and compatibility with industrial control systems, TX26D202VM0BAA can be used in outdoor monitoring equipment. The high-resolution WUXGA display helps present clear images, maps, and real-time monitoring information.
l Outdoor security monitoring terminals
l Traffic monitoring systems
l Smart city information displays
4. Transportation and Vehicle Display Systems
TX26D202VM0BAA supports reliable signal transmission and compact system integration. It can provide clear visual feedback for navigation, equipment monitoring, and operational management.
l Railway control displays
l Vehicle-mounted information terminals
l Intelligent transportation systems
TX26D202VM0BAA Datasheet
You can refer to the official datasheet of KOE TX26D202VM0BAA LCD to see more details:

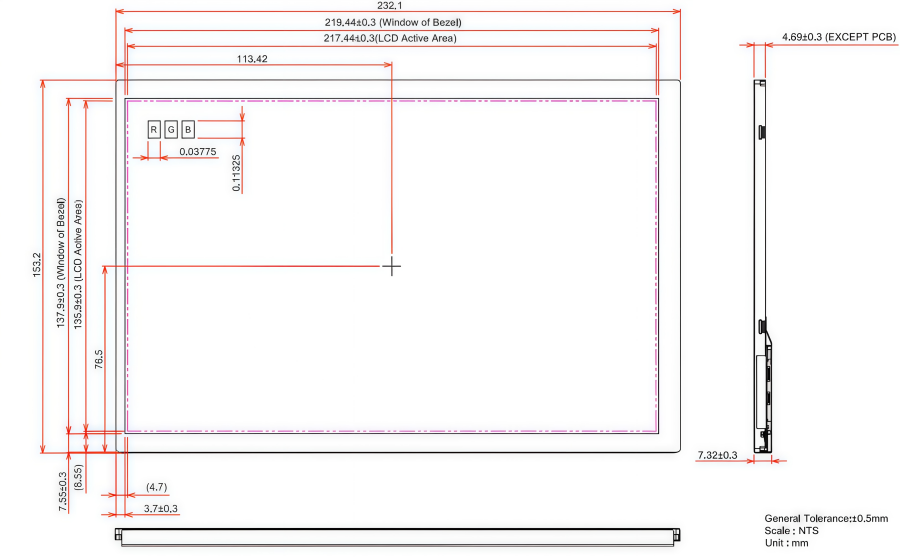

TX26D202VM0BAA Outline Dimensions
This part describes the outline dimensions of the TX26D202VM0BAA LCD panel, providing references for structural housing design.
