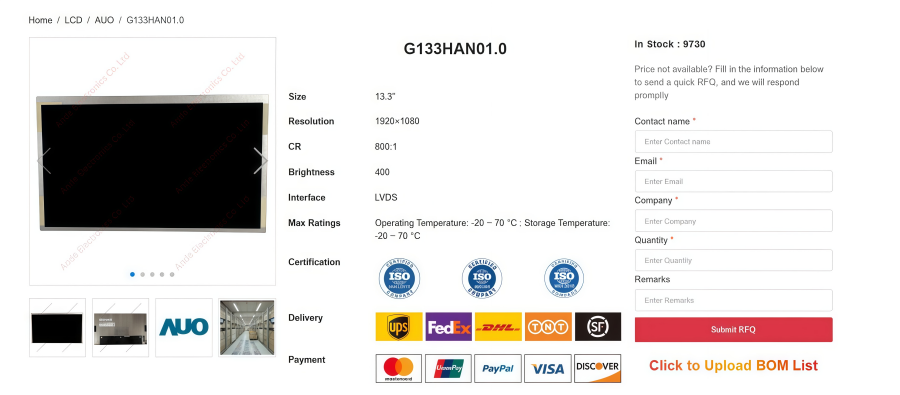

G133HAN01.0 Overview
AUO G133HAN01.0 is a color active matrix TFT LCD module composed of a TFT LCD panel, driver circuitry, and an LED backlight system. It supports a 16:9 FHD resolution of 1920 × 1080 and delivers 16.7M colors (RGB 8-bit data driver), with an integrated LED backlight driving circuit for stable image performance.
This model is designed for professional display applications, and is suitable for industrial displays, gaming devices, and the healthcare sector.
G133HAN01.0 Specs
The following items are the key parameters of the G133HAN01.0 LCD panel to show its performance and compatibility.
Parameter | Value |
Brand | |
Model | G133HAN01.0 |
Size | 13.3" |
Composition | LCM |
Resolution | 1920(RGB)×1080, FHD 166PPI |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewangle | 89/89/89/89 |
Color Depth | 16.7M 90% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
Active Area | 295.07(W)×166.68(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 500g (Max.) |
Outline Size | 309.7(H)×184.1(V) ×10.1(D) mm |
Max Ratings | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
Refer to G133HAN01.0 Datasheet PDF
G133HAN01.0 Key Features
The G133HAN01.0 FHD TFT LCD module offers solid performance in resolution, color reproduction, and interface compatibility. This section will describe its main features and advantages.
13.3" a-Si TFT-LCD Panel Design
Compact industrial-grade display size, suitable for embedded systems, control terminals, and professional equipment integration.
Wide Color Gamut (DCI-P3 & sRGB Support)
Provides enhanced color reproduction and richer visual performance for applications requiring accurate color display.
WLED Backlight System with LED Driver
Integrated backlight solution ensures consistent brightness and simplified system integration.
Long Backlight Lifetime (≥50,000 Hours)
Supports long-term continuous operation, reducing maintenance frequency in industrial environments.
Wide Operating & Storage Temperature Range (-20°C to 70°C)
Ensures reliable performance under varying environmental conditions.
High Vibration Resistance (1.5G / 14.7 m/s²)
Suitable for industrial, transportation, and embedded applications with mechanical stress.
JEIDA LVDS Interface
Standard LVDS signal format enables easy compatibility with industrial control boards and embedded systems.
Matte Surface Treatment
Reduces glare and improves readability under strong or uneven lighting conditions.

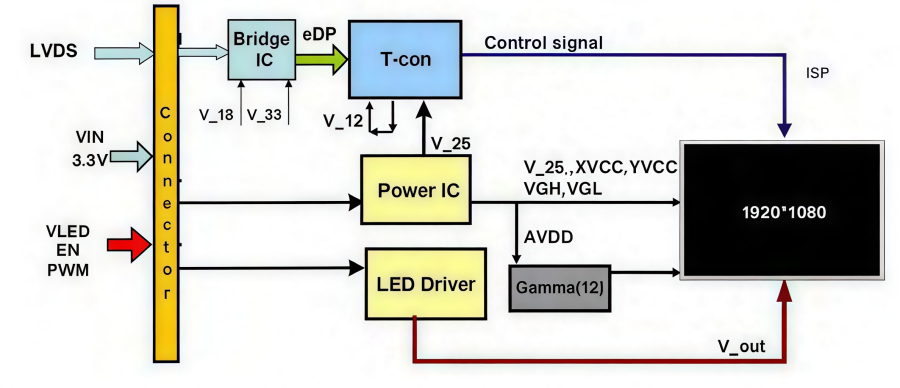

G133HAN01.0 Block Diagram
The following diagram shows the functional block of the 13.3 inch Color TFT-LCD Module:
This block diagram illustrates the signal and power flow of the G133HAN01.0. External LVDS image signals are first input through the main connector and converted into eDP signals via a bridge IC. The image control signals are then processed by the timing controller (T-CON), which drives the 1920×1080 panel. Meanwhile, the 3.3V main power enters the power IC, which distributes panel bias voltages and gamma-corrected grayscale voltages through the gamma circuit.
The backlight control signals (VLED, EN, PWM) are directly fed into the integrated LED driver, which generates a constant current output Vout to power the backlight. This enables coordinated operation between image display and brightness control.
G133HAN01.0 Interface
The G133HAN01.0 adopts the classic industrial LVDS (Low Voltage Differential Signaling) interface and is configured in a 2-channel (dual-channel) mode. Compared with a single-channel design, the dual-channel LVDS transmits odd and even pixel data in parallel and independently.
Pin Assignment
Pin Number | Signal | Pin Number | Signal |
1 | RxOIN0- | 16 | RxEIN1+ |
2 | RxOIN0+ | 17 | GND |
3 | RxOIN1- | 18 | RxEIN2- |
4 | RxOIN1+ | 19 | RxEIN2+ |
5 | RxOIN2- | 20 | RxECLKIN- |
6 | RxOIN2+ | 21 | RxECLKIN+ |
7 | GND | 22 | RxEIN3- |
8 | RxOCLKIN- | 23 | RxEIN3+ |
9 | RxOCLKIN+ | 24 | GND |
10 | RxOIN3- | 25 | AGBSEN |
11 | RxOIN3+ | 26 | VDD |
12 | RxEIN0- | 27 | VDD |
13 | RxEIN0+ | 28 | SCL |
14 | GND | 29 | SDA |
15 | RxEIN1- | 30 | GND |
G133HAN01.0 for Industrial Display Applications
G133HAN01.0 offers stable image output performance and good interface compatibility, making it suitable for human-machine interaction and information visualization in various industrial display systems.
In industrial automation, G133HAN01.0 is used for real-time display of equipment operating status, process parameters, and alarm information. In energy and power systems, it is commonly used in substation monitoring terminals and energy management systems for centralized visualization of voltage, current, and system status.
It is also widely applied in industrial embedded devices and panel PCs. In transportation equipment, it can be used in vehicle control panels and dispatch system display interfaces, ensuring stable information output under long-term operation conditions.
It is commonly used in:
l Embedded control terminals
l PLC control panels
l HMI human-machine interfaces
l Production line monitoring systems
l Industrial computer front-panel displays
G133HAN01.0 in High-Performance Gaming Systems
G133HAN01.0 LCD offers high resolution performance and excellent color reproduction, making it suitable for visual output and interactive display applications in high-performance gaming systems. In gaming devices, it can be used for main display interfaces, portable gaming terminals, and embedded gaming systems, delivering clear image details and smooth visual experience.
At the same time, this display can also be used in debug interfaces, performance monitoring panels, and multi-screen expansion systems. During long-term operation, it provides stable image output support and adapts well to different types of gaming hardware architectures.
It is commonly used in:
l Handheld gaming devices
l Arcade and entertainment terminals
l Esports integrated systems
l Game development and testing platforms
l Portable gaming display systems
G133HAN01.0 for Advanced Healthcare Equipment Displays
In medical displays, G133HAN01.0 can be used for data visualization, control interfaces, and multi-parameter monitoring displays, providing fundamental visual output support for devices.
In healthcare applications, it is used to display real-time patient vital signs, diagnostic results, and system operating status. In imaging-related equipment, this display module can present image data and operation menus, meeting basic medical visualization requirements.
At the same time, this display is also suitable for medical information terminals and hospital equipment control panels. Under long-term operating conditions, it provides stable information output and adapts to various medical device architectures.
It is commonly used in:
l Medical monitoring equipment
l Diagnostic and analysis instruments
l Ultrasound and portable imaging devices
l Hospital information terminal systems
l Medical equipment control panels
Handling Guidelines
1. Front polarizer is easily damaged — avoid scratches.
2. Power must be OFF when connecting/disconnecting input.
3. Wipe water immediately to prevent stains/discoloration.
4. Clean surface with soft cloth or absorbent cotton only.
5. Glass panel—avoid drops or strong impact.
6. Ground yourself to prevent ESD damage before handling.
7. Do not open or modify the module.
8. Do not press or stress rear reflector sheet.
9. When repacking, avoid pressing LED bar center; press edges gently.
10. Do not rotate or tilt signal connector during insertion/removal.
11. Avoid twisting or bending the TFT module at any time.
12. Use a compliant Limited Power Source (IEC/UL60950-1).
13. Temperature affects brightness, response time, and lamp voltage.
14. Low-temp operation may reduce backlight life and brightness.
15. Specifications apply in landscape mode only.
16. Avoid static images to prevent image sticking; use screen saver.
