The G150XGE-L04 is a 15-inch TFT-LCD display module developed by Innolux, primarily designed for industrial applications. It features an LED backlight system and an industrial-grade structural design, enabling stable and reliable long-term operation.
This module is widely used in industrial automation equipment, Human-Machine Interface (HMI) terminals, control systems, and various industrial display platforms. This article provides a systematic overview of the G150XGE-L04, covering its specifications, features, interface structure, and industrial applications, helping engineers and procurement teams quickly understand its performance advantages and selection reference.

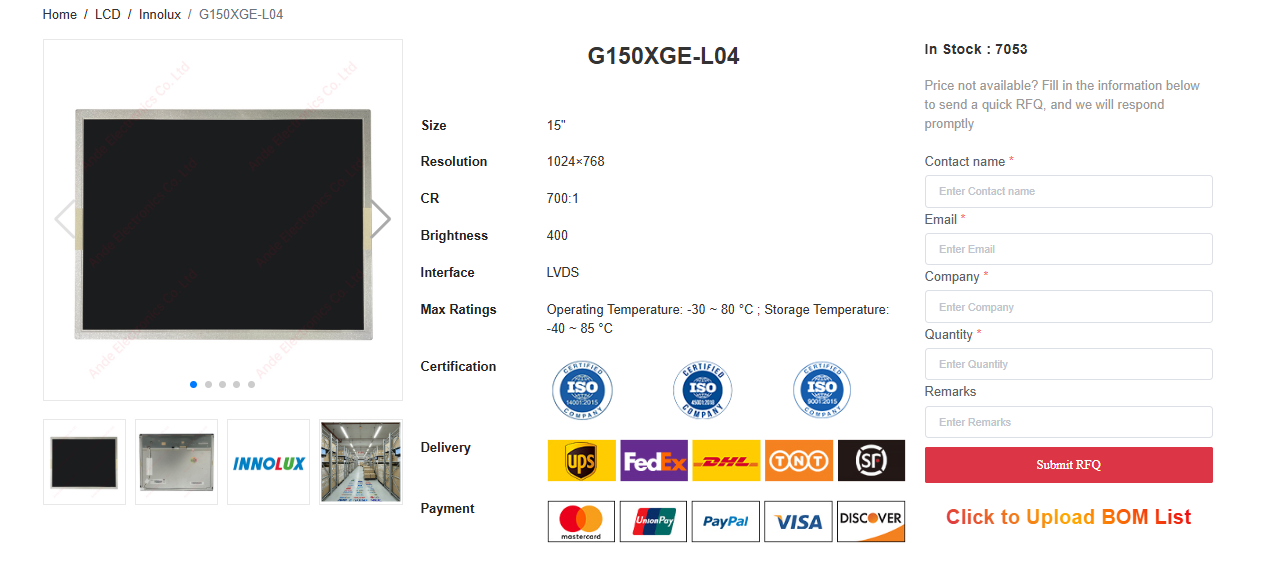

G150XGE-L04 Overview
The Innolux G150XGE-L04 is a 15.0-inch TFT-LCD display module featuring an LED backlight system and a 20-pin LVDS interface. It supports a resolution of 1024×768 (XGA) and displays 16.2 million or 262,000 colors; offering stable image output and excellent display consistency, it is suitable for a wide range of industrial display applications.
Designed in accordance with PSWG standards, the module features industry-standard mechanical and electrical interface configurations, facilitating system compatibility and ease of replacement. Additionally, the integration of the backlight driver circuit onto the PCBA simplifies system design, making it ideal for industrial control and embedded display equipment.
G150XGE-L04 Technical Specifications
This section outlines the key technical specifications of the G150XGE-L04, providing a comprehensive overview of its performance. The table below lists the specifications for this LCD panel:
Parameter | Value |
Brand | |
Model | G150XGE-L04 |
Size | 15" |
Composition | LCM |
Resolution | 1024(RGB)×768, XGA 85PPI |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 700 : 1 (Typ.) (TM) |
Viewangle | 80/80/70/70 |
Color Depth | 262K/16.2M 55% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Active Area | 307.4(W)×231.3(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 835g (Typ.) |
Outline Size | 326.5(H)×253.5(V)×12(D) mm |
Max Ratings | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 85 °C |
Refer to G150XGE-L04 Datasheet PDF
G150XGE-L04 Pin Configuration
This module adopts an LVDS (1-channel, 6-bit/8-bit compatible) signal interface. The display data and logic signals are transmitted through a 20-pin surface-mount connector, with the commonly used matching socket typically being MSB240420-E. When designing the carrier board, it is necessary to select a precisely compatible cable harness and wiring assembly.
Pin No. | Symbol | Function |
1 | VCC | Power Supply +3.3V(typical) |
2 | VCC | Power Supply +3.3V(typical) |
3 | GND | Ground |
4 | LR/UD | Reverse Scan Control H or NC = Normal Mode. L = Horizonta/ Vertical Reverse Scan. |
5 | RX0- | LVDS Differential Data Input |
6 | RX0+ | LVDS Differential Data Input |
7 | GND | Ground |
8 | RX1- | LVDS Differential Data Input |
9 | RX1+ | LVDS Differential Data Input |
10 | GND | Ground |
11 | RX2- | LVDS Differential Data Input |
12 | RX2+ | LVDS Differential Data Input |
13 | GND | Ground |
14 | RXCLK- | LVDS Differential Data Input |
15 | RXCLK+ | LVDS Differential Data Input |
16 | GND | Ground |
17 | RX3- | LVDS Differential Data Input |
18 | RX3+ | LVDS Differential Data Input |
19 | GND | Ground |
20 | SEL68 | LVDS 6/8 bit select function control, High → 6bit Input Mode Low or NC → 8bit Input Mode |
Hardware Tips
To avoid signal distortion or hardware damage, PCB engineers must strictly follow the two rules below during layout design:
1. 100Ω Differential Impedance Control
LVDS signals (such as RX0±) are high-speed differential signals, and the trace impedance must be controlled at 100Ω ±10%. Differential pairs must be strictly length-matched (within ±5 mil), via usage should be minimized, and a solid ground reference plane should be provided to reduce reflection and EMI, preventing screen flickering or water ripple effects.
2. Strict Power On/Off Sequence Control
During power-up, VCC (e.g., 3.3V) must be stabilized first, and after meeting the required delay (typically Tt > 0.5 ms), LVDS signals can be enabled. During power-down, LVDS signals must be disabled first before cutting off VCC. Otherwise, the driver IC may enter a latch-up condition, causing excessive current and potential damage to the module.
G150XGE-L04 Block Diagram Analysis
According to the system block diagram, the G150XGE-L04 module completes image display through four main paths: signal decoding, power conversion, row/column driving, and independent backlight control.
First, external LVDS differential signals and clock are transmitted through the 20-pin connector to the LVDS receiver for image decoding. Meanwhile, the input logic voltage VCC is converted by a DC/DC converter into internal reference voltages required by each circuit block.
Next, the decoded timing data is sent to the scan driver IC (row driver) and data driver IC (column driver) to accurately control the 1024 × 768 TFT LCD panel. At the same time, independent backlight power (Vi) is supplied via a 5-pin connector and regulated by the built-in LED converter, providing a stable constant-current drive for the LED backlight unit.
G150XGE-L04 Advantages and Disadvantages
The G150XGE-L04 LCD display offers multiple key advantages, but it also has certain potential limitations. We will help engineers evaluate its suitability in a more comprehensive and objective way.
Pros
l Supports a wide operating temperature range of -30 ~ 80°C, making it suitable for harsh industrial environments.
l Offers long backlight life (≥50,000 hours), ensuring stable long-term operation.
l It features a built-in LED driver, simplifying system design and improving power stability.
l Supports up to 1.5G vibration resistance, making it reliable in mechanical and mobile applications.
l Adopts LVDS interface with 6/8-bit support, providing flexible system compatibility.
l Follows PSWG standards, ensuring better interchangeability and industrial compatibility.
l Uses WLED backlight technology for efficient and uniform brightness performance.
l Features a matte anti-glare surface, improving readability in bright industrial lighting conditions.
l Supports lamp-replaceable design, reducing long-term maintenance cost and downtime.
Cons
l It does not include a touch panel, requiring an additional touch solution for interactive applications.
l Uses XGA (1024×768) resolution, which is lower than modern Full HD display standards.
l Limited color depth flexibility in 6-bit/8-bit modes compared to higher-end displays.
l Designed mainly for industrial use, making it less suitable for high-end multimedia or consumer display applications.
Typical Applications in Industrial Fields
Based on the features and advantages of the G150XGE-L04 LCD panel, it is widely used in the industrial field, The screen is suitable for the industrial application scenarios below.
1. Industrial Automation Systems
The G150XGE-L04 is widely used in human-machine monitoring interfaces on industrial automation production lines for real-time monitoring of equipment status and production data.
l PLC control panels
l Automated assembly line terminals
l Smart factory monitoring displays
2. Human-Machine Interface (HMI) Systems
This module is commonly used as the core display in industrial HMI systems, serving as the interactive interface between operators and equipment, supporting stable long-term operation.
l Equipment parameter setting terminals
l Machine tool operation panels
3. Medical Industrial Equipment Display Systems
The G150XGE-L04 is used in medical equipment to provide stable and clear operational display interfaces, suitable for environments requiring high reliability.
l Patient monitors
l Ultrasound diagnostic equipment
4. Test & Measurement Equipment
The G150XGE-L04 is widely used in various industrial testing instruments, providing clear and stable data visualization interfaces.
l Oscilloscope displays
l Industrial inspection equipment
l Laboratory data acquisition systems
5. Embedded Industrial Computing Systems
This module is suitable for various embedded control systems as a core display output device.
l Industrial PCs
l Edge computing terminals
