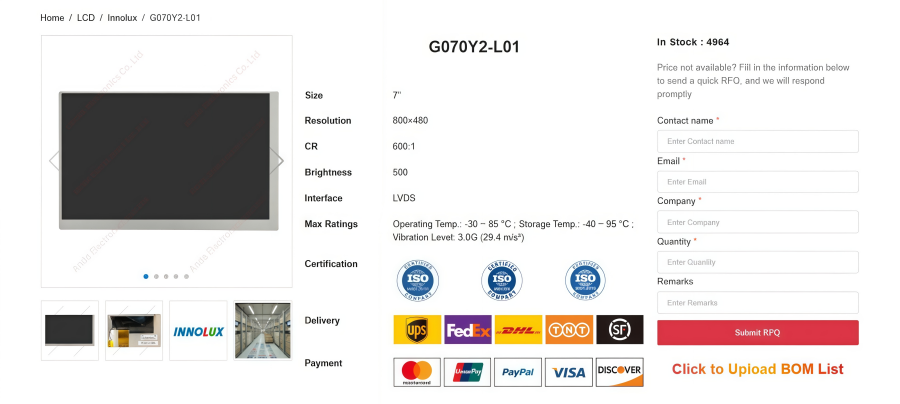

G070Y2-L01 is a 7-inch TFT Liquid Crystal Display module with an LED backlight unit and a 20pin 6/8bit LVDS interface controller board. The converter for the LED Backlight Unit is built in. This module supports 800 (R.G.B )x 480 WVGA mode, whose main application is the automotive display and industrial field.
This article provides an overview of the G070Y2-L01, helping engineers and procurement professionals better understand its technical advantages and application value. As a display solutions supplier, Ande Electronics can also provide sourcing and technical support services for industrial display products, including the G070Y2-L01.
G070Y2-L01 General Specs
After understanding the basics of the G070Y2-L01, its core specifications serve as important factors for evaluating product performance and system compatibility. The following section outlines the key specifications of this display module.
Parameter | Value |
Brand | |
Model | G070Y2-L01 |
Size | 7" |
Composition | LCM |
Resolution | 800(RGB)×480, WVGA 133PPI |
Luminance | 500 cd/m² (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) (TM) |
Viewangle | 70/70/60/60 |
Color Depth | 262K/16.2M 72% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Active Area | 154.6(W)×93.64(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 147/162g (Typ./Max.) |
Outline Size | 165(W)×104(H) ×9.83(D) mm |
Vibration Level | 3.0G (29.4 m/s²) |
Max Ratings | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
Refer to G070Y2-L01 Datasheet PDF
G070Y2-L01 Electrical & Signal Interface
The signal architecture and electrical control design of the Innolux G070Y2-L01 are well suited for industrial control and automotive electronics applications.
1. LVDS Interface
The G070Y2-L01 natively adopts a 20-pin single-channel (1-ch) LVDS interface. This interface offers low electromagnetic interference (EMI) and strong noise immunity while supporting both 6-bit and 8-bit digital signal input modes:
l 6-bit Mode (262K Colors):
When configured in 6-bit mode, the data transmission path is simplified, helping reduce overall system power consumption.
l 8-bit Mode (16.2M Colors):
For applications requiring higher color quality and minimal color banding, the module utilizes built-in FRC (Frame Rate Control) technology to achieve up to 16.2 million display colors for smoother and more realistic image rendering.
2. LVDS Differential Pair Layout Guidelines
To ensure reliable high-speed signal transmission, the following PCB layout recommendations should be followed:
1) Differential Impedance Control
All five differential pairs (Channel 0, Channel 1, Channel 2, Channel 3, and CLK) should maintain a differential impedance of 100Ω ±10%.
2) Length Matching Requirements
l Within each differential pair (such as RX0+ and RX0−), the length mismatch should be controlled within 5 mil.
l Between different channels (such as Channel 0 and CLK), the length mismatch should be controlled within 20 mil.
3) Routing Recommendations
Differential pairs should be routed on the same signal layer whenever possible, and the use of excessive vias should be minimized to reduce signal reflections and timing jitter.
G070Y2-L01 Features and Benefits
This section focuses on the key features and advantages of the G070Y2-L01 LCD module of its performance, helping to more intuitively evaluate its operating performance across different systems.
l Wide Operating Temperature Range: Supports -30°C to 85°C operation and -40°C to 95°C storage.
l High Reliability for Industrial Use: Withstands up to 3.0 G of vibration.
l Long Backlight Lifespan: Equipped with WLED backlight with a lifetime of ≥ 50,000 hours.
l Integrated LED Driver Design: Built-in LED driver simplifies system integration.
l Flexible Display Configuration: Supports 6-bit / 8-bit color depth and U/D, L/R reverse display function.
l Low Reflection Matte Surface: Matte treatment reduces glare and improves readability.
l Energy-Efficient WLED Backlight System: Provides stable brightness output with lower power consumption.

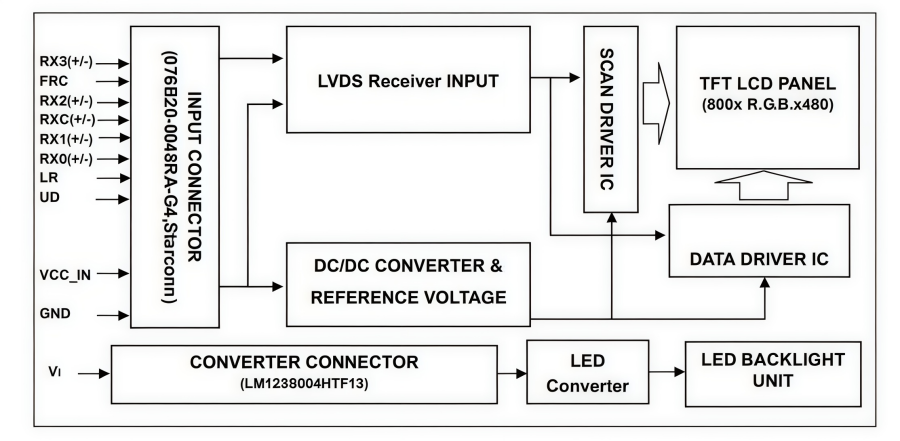

G070Y2-L01 Block Diagram
Based on the block diagram, the hardware architecture of the G070Y2-L01 can be summarized into two core sections: the display signal processing path and the independent backlight power supply path.
In the display section, the module receives external input signals through a 20-pin Starconn connector (076B20-0048RA-G4), including four LVDS differential data pairs (RX0–RX3), a differential clock signal (RXC), FRC control signals, and U/D, L/R inversion control signals. These signals are decoded by the LVDS Receiver and then routed to the SCAN DRIVER IC and DATA DRIVER IC, which jointly drive the 800×480 TFT LCD panel. Meanwhile, VCC_IN is processed by the DC/DC Converter and reference voltage module to provide stable operating power for the driver system.
In the backlight section, an independent power supply is fed through the LM123S004HTF13 connector into the LED Converter. The constant-current driver circuit then controls the LED Backlight Unit, ensuring stable, safe, and efficient backlight operation with precise brightness control.
G070Y2-L01 for Industrial Applications
As a 7’’ WVGA industrial-grade TFT-LCD panel G070Y2-L01 is widely used in embedded devices and human-machine interface (HMI) systems.
1. Industrial Control & HMI Interfaces
In industrial automation applications, the G070Y2-L01 is commonly used in PLC control panels, operator terminals, and HMI display systems, providing clear and stable information visualization for industrial equipment.
2. Portable Industrial Test Equipment
This module is also widely applied in portable industrial instruments such as measuring devices, environmental monitoring equipment, and handheld testing terminals.
3. In-Vehicle & Construction Machinery Displays
In automotive and heavy machinery fields, the G070Y2-L01 can be used in excavators, cranes, agricultural machinery, and other equipment as auxiliary display screens or instrument interfaces.
4. Industrial Test & Data Acquisition Systems
In test and measurement applications, the G070Y2-L01 is suitable for oscilloscope auxiliary displays, signal analyzers, and DAQ (Data Acquisition) system interfaces.
G070Y2-L01 for Automotive Displays
The Innolux G070Y2-L01 LCD panel is also widely used in automotive electronics and construction machinery display systems, making it suitable for various in-vehicle information and control interfaces.
1. In-Vehicle Instrument Clusters & Auxiliary Displays
In automotive applications, the G070Y2-L01 can be used in instrument clusters, auxiliary information displays, and secondary center console screens, providing clear and stable visual output for vehicle data presentation.
2. In-Vehicle Control & Monitoring Systems
The G070Y2-L01 is suitable for vehicle control panels and monitoring systems, such as vehicle status monitoring, hydraulic system control interfaces, and driver assistance information displays.
3. Commercial Vehicles & Transportation Equipment
In commercial vehicle applications such as logistics trucks, sanitation vehicles, and passenger transport systems, this display panel can serve as an information terminal for route navigation, system status, and safety alerts.
Handing & Safety Precautions
1) Avoid applying strong force such as bending or twisting during assembly.
2) Install the module only in a clean environment to prevent dust or oil damage.
3) Do not apply pressure or impact to the LCD panel or backlight.
4) Follow correct power-on sequence to avoid CMOS LSI damage.
5) Do not plug or unplug the interface connector while operating.
6) Do not disassemble the module.
7) Clean only with a soft dry cloth; avoid chemicals to protect the polarizer.
8) Prevent moisture exposure, as it may damage the module during operation.
9) Avoid high temperature or humidity during storage and operation.
10) Low temperatures (<10°C) may slow response time and increase startup voltage.
11) Avoid displaying a fixed pattern for long periods to prevent image sticking.
12) Do not disassemble or insert objects into the backlight unit to avoid electric shock.
13) If liquid crystal leaks, avoid contact with eyes and mouth; wash skin thoroughly with soap if exposed.
14) The module is generally safe at end-of-life under normal operating conditions.
