BAT54S Diode: Pinout, Test Circuit and Applications

Author: ANDESOURCE Date: 26/05/27
371

What is BAT54S?

The BAT54S is a dual planar Schottky barrier diode for high-speed switching and low-forward voltage applications. It features integrated guard ring protection technology. Encapsulated in a SOT-23 (TO-236AB) surface-mounted package, the BAT54S is widely used in portable electronics.



BAT54S Working Principle

The operating principle of the BAT54S is based on the physical characteristics of a metal-semiconductor junction (Schottky barrier). Since it does not have the minority carrier storage effect found in traditional PN junction diodes, it offers an ultra-low forward voltage drop of only 0.3V0.4V and an extremely fast reverse recovery time in the nanosecond (ns) range.

In practical circuits, when the input voltage exceeds the supply voltage or drops below the ground level, the corresponding diode instantly turns on in forward conduction mode, quickly diverting abnormal overvoltage or negative spike pulses to the power rail (VCC) or ground (GND).

(Contact us for a quote)



BAT54S Specifications

Nexperia BAT54S,215 technical specifications is below.

Parameter

Value

Part Number

BAT54S,215

Diode Type

Schottky

Description

DIODE ARRAY   SCHOTTKY 30V SOT23

Lead Free   Status / RoHS Status

Lead free /   RoHS Compliant

Diode   Configuration

1 Pair Series   Connection

Series

Automotive,   AEC-Q101

Operating   Temperature - Junction

150°C (Max)

Reverse   Recovery Time (trr)

5ns

Voltage - DC   Reverse (Vr) (Max)

30V

Voltage -   Forward (Vf) (Max) @ If

800mV @ 100mA

Mounting Type

Surface Mount

Current -   Reverse Leakage @ Vr

2µA @ 25V

Current -   Average Rectified (Io) (per Diode)

200mA (DC)

Current   Rating

500mA

Peak Reflow   Temperature (Cel)

260

Time@Peak   Reflow Temperature-Max (s)

30

Package

TO-236-3,   SOT-23-3

Base Product Number

BAT54S

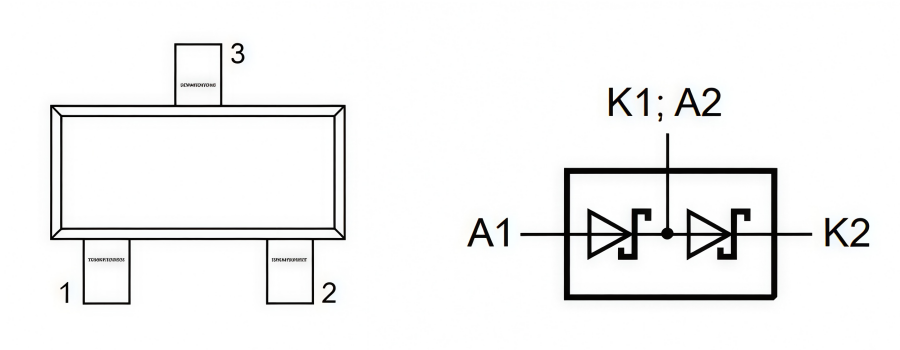

BAT54S Pin Description

BAT54S Diode: Pinout, Test Circuit and Applications

Pin 1 — A1: Anode terminal of diode 1.

Pin 2 — K2: Cathode terminal of diode 2.

Pin 3 — K1 / A2: Shared terminal functioning as the cathode of diode 1 and the anode of diode 2.



BAT54S Test Circuit

BAT54S Diode: Pinout, Test Circuit and Applications

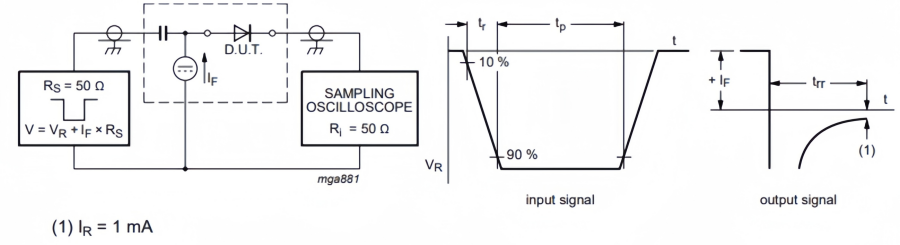

Reverse recovery time test circuit and waveforms



This figure shows the standard test circuit and waveform used to measure the reverse recovery time (trr) of the BAT54S.

In the test circuit on the left, the device under test (D.U.T.) is first driven with a forward current IF by a DC current source. Then, a fast reverse voltage pulse is applied by a pulse generator with an internal resistance of RS = 50Ω. Since Schottky diodes use a metal-semiconductor junction and do not have the minority carrier storage effect of standard PN junction diodes, only a very small reverse current spike appears when the signal quickly switches to reverse bias VR. As shown in the output waveform on the right, the reverse current rapidly decays to the specified threshold current IR = 1mA.

(Contact us for a quote)



BAT54S Features

l  Dual Schottky diodes integrated in one compact package.

l  Ultra-small SOT-23 SMD package for easy PCB assembly.

l  Nanosecond-level fast switching performance.

l  Low forward voltage drop of about 0.35V0.4V.

l  Supports up to 30V reverse voltage.

l  Maximum continuous forward current of 200mA.

l  Surge current capability up to 600mA.

l  Extremely low charge storage effect.

l  Excellent overvoltage and ESD clamping performance.

l  Available in AEC-Q101 automotive-grade versions.

l  RoHS compliant and lead-free design.



BAT54S Applications

1. Ultra High-Speed Switching

Thanks to its nanosecond-level switching speed and low forward voltage drop, the BAT54S is widely used in high-frequency and fast-response switching circuits. It is suitable for RF circuits, signal routing, pulse detection, and high-speed digital communication systems.



2. Line Termination

The BAT54S can be used in line termination circuits to suppress signal reflections and improve signal integrity in high-speed data transmission systems. It is commonly applied in communication interfaces, data buses, and embedded electronic systems.



3. Voltage Clamping

The BAT54S is ideal for protecting sensitive I/O ports and low-voltage components from transient voltage spikes or electrostatic discharge (ESD). It is frequently used in USB ports, microcontroller interfaces, sensor inputs, and portable electronic devices.



4. Reverse Polarity Protection

The diode provides efficient reverse polarity protection with minimal power loss. It helps prevent damage caused by incorrect power supply connections in battery-powered products, industrial controllers, and consumer electronics.

(Contact us for a quote)



BAT54S Equivalents

If you are looking for compatible alternatives for the BAT54S, the following models are commonly used in similar Schottky switching, clamping, and protection circuits:

l  BAT54

l  BAT54A

l  BAT54C

l  BAT54SDW

l  BAT54S-7-F

l  BAT54ST-7-F

l  BAT54T1G



BAT54 vs. BAT54S vs. BAT54A vs. BAT54C

These four models typically use a SOT-23-3 package, and their main difference lies in the internal diode pin configurations. The details are as follows:

Part Number

Internal Configuration

Topology Diagram Description

Critical Pin Features

BAT54

Single   Diode

Contains   only one independent diode internally.

Pin   1: Anode

Pin   1: NC(Not Connected)

Pin   3: Cathode



BAT54S

Series   Pair

Two   diodes connected in series; the cathode of D1 and the anode of D2 meet at the   center pin.

Pin   1: Anode of D1

Pin   2: Cathode of D2

Pin   3: Public Terminal(D1 Cathode/D2 Anode)



BAT54A

Common   Cathode

The   cathodes (negative terminals) of both diodes are tied together.

Pin   1: Anode of D1

Pin   2: Anode of D2

Pin   3: Common Cathode



BAT54C

Common   Anode

The   anodes (positive terminals) of both diodes are tied together.

Pin   1: Cathode of D1

Pin   2: Cathode of D2

Pin   3: Common Anode



(Contact us for a quote)



How to Use BAT54S Diode?

In practical circuit design, the BAT54S is often used for overvoltage clamping and ESD protection on high-speed signal lines or I/O ports.

In a typical connection, Pin 3 (common node) is connected to the protected signal line (e.g., MCU I/O, SPI, or I2C bus), Pin 1 is tied to GND, and Pin 2 is connected to the supply rail (e.g., 3.3V VCC).

When a positive voltage spike or ESD event occurs, once the signal exceeds VCC + 0.35V, the upper diode conducts and diverts excess energy to the power rail. Similarly, when a negative spike below about -0.3V appears, the lower diode conducts and clamps it to ground.



BAT54S Package

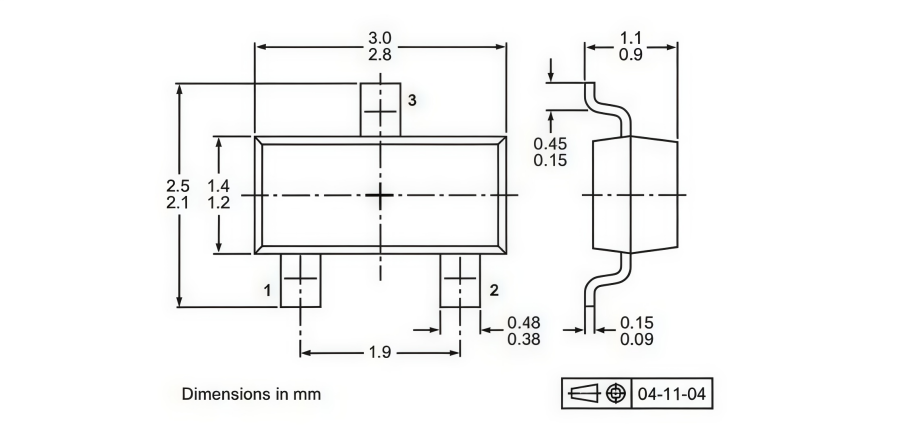

Here is the BAT54S package outline.

 BAT54S Diode: Pinout, Test Circuit and Applications
