DV150X0M-N10 Introduction
DV150XOM-N10 is a color active matrix TFT LCD MDL using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This MDL has a 15 inch diagonally measured active area with XGA resolutions (1024 horizontal by 768 vertical pixel array).Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripeand this module can display 16.7M colors. The TFT-LCD MDL panel is adapted for a lowreflection and higher color type.
DV150X0M-N10 Key Specs
The BOE DV150X0M-N10 meets the application requirements of industrial control, medical equipment, test instruments, embedded systems, and others. Its core specifications and parameters are outlined below.
Parameter | Value |
Brand | BOE |
Model | DV150X0M-N10 |
Size | 15" |
Composition | LCM |
Resolution | 1024(RGB)×768, XGA 85PPI |
Luminance | 350 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewangle | 89/89/89/89 (Typ.)(CR≥10) |
Color Depth | 16.7M 72% NTSC |
Light Source | WLED [12S4P] , 50K hours , With LED Driver |
Interface Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
Active Area | 304.128(W)×228.096(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 930g |
Outline Size | 326.5(H)×253.5(V) ×10(D) mm |
Max Ratings | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C |
Refer to DV150X0M-N10 Datasheet PDF
DV150X0M-N10 Mechanical Structure
DV150X0M-N10 15.0'' industrial display module features rational component layout and sturdy metal brackets, enabling embedding into various enclosures for long-term stable operation.
Overall Dimensions & Active Display Area
The module measures 326.5mm (W) × 253.5mm (H) × 10mm (T). Its active display area is 304.128mm (W) × 228.096mm (H), delivering excellent visual compatibility.
Metal Frame Structure
The front face and surrounding frames are made of high-strength anti-corrosive SECC steel or stainless steel.
Mounting Hole Design
Standard fixed screw holes are precisely arranged on its edges for easy equipment assembly.
Rear Interface Layout
The rear-mounted T-CON board is secured and shielded by a metal cover. All connectors and wiring adopt neat streamlined layout, with interfaces mainly arranged on the lower rear or side edges.
WLED Backlight Design
It adopts compact edge-lit white LED backlight system with built-in high-efficiency LED driving circuits.
DV150X0M-N10 Interface & Electrical Integration

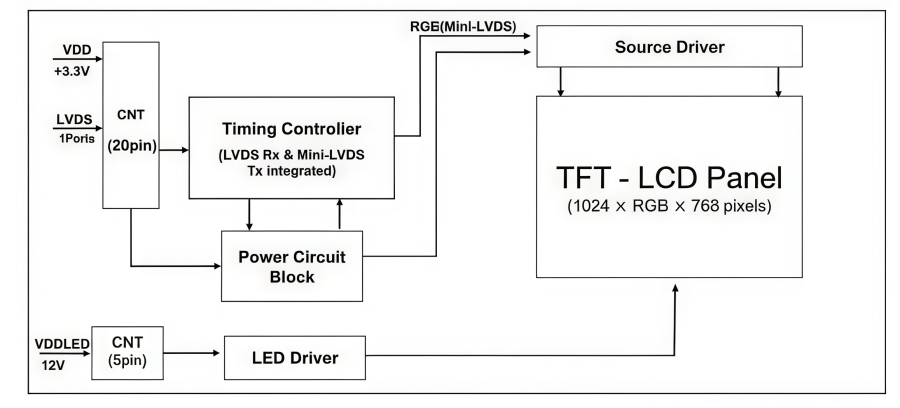

The BOE DV150X0M-N10 LCD panel adopts standardized industrial-grade electrical design in signal transmission, backlight driving and environmental adaptability.
Signal Connection
This module adopts classic 1-channel 8-bit LVDS interface with a standard 20-pin industrial connector. It supports 16.7 million color depth transmission and achieves high data throughput via Low-Voltage Differential Signaling technology.
Pin No | Symbol | Description | Pin No | Symbol | Description |
1 | VDD | Power Supply, 3.3V(typ.) | 11 | RIN2- | -LVDS differential data input 2 |
2 | VDD | Power Supply, 3.3V(typ.) | 12 | RIN2+ | +LVDS differential data input 2 |
3 | VSS | Ground | 13 | VSS | Ground |
4 | NC | No Connection | 14 | CLKIN- | -LVDS differential clock input CLK |
5 | RIN0- | -LVDS differential data input 0 | 15 | CLKIN+ | +LVDS differential clock input CLK |
6 | RIN0+ | +LVDS differential data input 0 | 16 | VSS | Ground |
7 | VSS | Ground | 17 | RIN3- | -LVDS differential data input 3 |
8 | RIN1- | -LVDS differential data input 1 | 18 | RIN3+ | +LVDS differential data input 3 |
9 | RIN1+ | +LVDS differential data input 1 | 19 | VSS | Ground |
10 | VSS | Ground | 20 | NC | No Connection |
Backlight System
This module adopts an energy-saving edge-lit WLED light source with a built-in LED drive control circuit.
l Long service life: Its backlight lifespan reaches up to 30,000 hours.
l Low power consumption and heat dissipation: The integrated driver eliminates potential safety risks caused by external bulky inverters, effectively reduces operating heat and slows down optical aging of the LCD panel.
DV150X0M-N10 Performance and Benefits
The DV150X0M-N10 LCD module overcomes the drawbacks of narrow viewing angles and severe color deviation found in traditional industrial displays. Its optimized signal processing structure delivers vivid and lifelike visual performance.
l 1 pixel per clock LVDS interface: It features an LVDS structure that transmits one pixel per clock cycle.
l High-speed response: Precisely optimized driving voltage for liquid crystal molecules enables ultra-fast response speed.
l 6-bit + FRC grayscale extension: With advanced 6-bit FRC frame rate control dithering technology, it achieves true-color display up to 16.7 million colors and covers 70% NTSC color gamut.
l DE-only mode: It fully supports pure Data Enable signal control, eliminating the need for complicated HSYNC and VSYNC signals on driver boards.
l RoHS compliant: This module restricts hazardous substances strictly and fully complies with EU RoHS environmental directives.
DV150X0M-N10 Typical Applications
The DV150X0M-N10 LCD screen is usually recommended for use in industrial control, commercial displays, digital signage, etc. It supports both landscape and portrait display configurations, thereby meeting the installation and display requirements of a diverse range of devices.
1. Display Terminals for Control Systems
This module is widely used in HMI interfaces for industrial automation systems, providing real-time display of equipment status, process parameters, and alarm information. It is suitable for 24/7 factory operation environments.
l PLC control cabinets
l Industrial production line terminals
l Automation equipment control panels
2. Industrial Testing and Measurement Equipment
In testing instruments and data analysis systems, the display provides stable visualization of waveforms, charts, and real-time data, helping engineers perform accurate monitoring and analysis.
l Data acquisition systems (DAQ)
l Industrial inspection equipment
3. Commercial Digital Display
DV150X0M-N10 is also suitable for commercial digital display applications, including information presentation, advertising playback, and public information systems, offering stable operation and clear visual performance.
l Shopping mall information displays
l Digital signage systems
l Self-service information kiosks
4. Landscape and Portrait Display Systems
The module supports both landscape and portrait installation modes, allowing flexible integration based on different application requirements and embedded display designs.
l Portrait information terminals
l Landscape industrial control displays
l Interactive smart display systems
5. Energy and Power Monitoring Systems
In the energy and power industry, this display is used for real-time visualization of critical operating data, improving monitoring and management efficiency.
l SCADA monitoring systems
l Power distribution control interfaces
l Energy management terminals

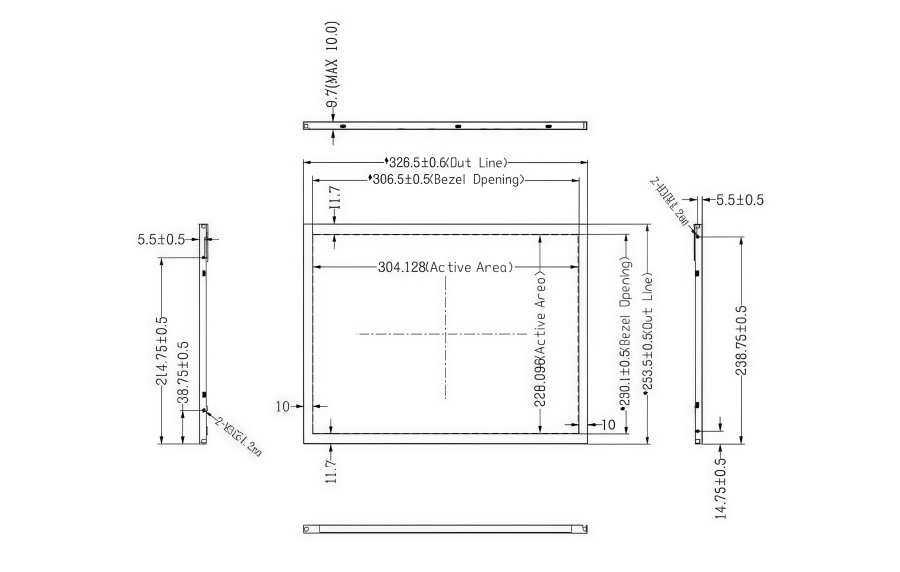

Outline Dimensions (Front View)
From the dimensional figure of the DV150X0M-N10 below, it can be clearly seen that this TFT LCD module adopts a standardized industrial symmetrical layout in both aspect ratio and mechanical mounting structure.
