AUO G150XG01 V3 (Alias: G150XG01 V.3) is a 15.0-inch diagonal a-Si TFT-LCD module composed of a TFT-LCD panel, a driver circuit, and a backlight system. It supports an XGA resolution of 1024 × 768 (H × V) and can display 16.2M colors (8-bit RGB) or 262K colors (6-bit RGB). All input signals are compatible with the LVDS interface. The module design complies with PSWG standards and is intended for industrial display applications.



G150XG01 V3 Technical Specs

This section focuses on the key specifications of the G150XG01 V3 display panel, helping users gain a comprehensive understanding of its performance and applicability in industrial environments, and providing a reference basis for selection and replacement decisions.

Parameter

Value

Brand

AUO

Model

G150XG01 V3

Size

15"

Composition

LCM

Resolution

1024(2)×768(2),   XGA  85PPI

Luminance

400 cd/m² (Typ.)

Contrast   Ratio

700 : 1   (Typ.) (TM)

Viewangle

80/80/60/80

Color Depth

262K/16.2M     60% NTSC

Light Source

WLED , 50K   hours , With LED Driver

Interface   Type

LVDS (1 ch,   6/8-bit) , 20 pins Connector

Active Area

310.18(W)×234.40(H)   mm

Pixel Format

RGB Vertical   Stripe

Frame Rate

60Hz

Touchscreen

Without

Voltage   Supply

3.3V (Typ.)

Weight

1.00Kgs   (Max.)

Outline Size

326.5(W)×253.5(H)×13.1(D)   mm

Max Ratings

Operating   Temperature: -30 ~ 85 °C ;

Storage   Temperature: -30 ~ 85 °C

Refer to G150XG01 V3 Datasheet PDF

(Contact us for a quote)



G150XG01 V3 Backlight System

The backlight architecture of the G150XG01 V3 has undergone a transition, so developers must carefully distinguish between versions during selection:



1. Original CCFL Architecture:

l  Light source: Uses two cold cathode fluorescent lamps (CCFLs).

l  Driving requirement: Requires a high-voltage inverter to convert low-voltage DC into high-voltage AC to power the lamps.

l  Characteristics: Warmer color temperature, but noticeable brightness degradation over long-term use. It also contains mercury, which does not comply with certain modern environmental (RoHS) requirements.



2. LED Retrofit / Modern Version:

l  Light source: White LED array.

l  Driving requirement: Uses a constant-current LED driver board, typically powered by 12V DC input.

l  Characteristics: Lower power consumption, faster startup, stronger vibration resistance, and a backlight lifespan typically exceeding 50,000 hours.



At the same time, the G150XG01 V3 provides flexible brightness control options to suit different industrial operating environments:

l  Analog Dimming: Brightness is adjusted linearly by varying the DC voltage (typically 0V to 5V).

l  PWM Dimming (Pulse Width Modulation):

l  Recommended frequency range: 100 Hz ~ 1 kHz.



G150XG01 V3 Signal Description

The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.



Input Signal Interface

Pin No.

Symbol

Description

1

VDD

Power Supply, 3.3V (typical)

2

VDD

Power Supply, 3.3V (typical)

3

GND

Ground

4

REV

Reverse Scan

5

Rin0-

- LVDS differential data input

6

Rin0+

+ LVDS differential data input

7

GND

Ground

8

Rin1-

- LVDS differential data input

9

Rin1+

+ LVDS differential data input

10

GND

Ground

11

Rin2-

- LVDS differential data input

12

Rin2+

+ LVDS differential data input

13

GND

Ground

14

ClkIN-

- LVDS differential data input

15

ClkIN+

+ LVDS differential data input

16

GND

Ground

17

Rin3-

- LVDS differential data input

18

Rin3+

+ LVDS differential data input

19

NC/GND

Reserved for AUO internal test. Please set it as   NC or Ground.

20

SEL68

Selection for 6 bits/8bits LVDS data input



G150XG01 V3 Key Advantages

As an industrial-grade LCD panel, G150XG01 V3 provides remarkable advantages across various application scenarios. The following section will focus on its key strengths.

l  Wide operating temperature range (-30 ~ 85°C), suitable for harsh industrial environments

l  LED backlight system with WLED driver support, ensuring lower power consumption

l  Long backlight lifespan (50,000 hours), high reliability

l  Replaceable lamp design for easier and more flexible maintenance

l  Industrial-grade vibration resistance (1.5G), strong stability

l  Supports 6/8-bit color depth, ensuring good display compatibility

l  180° reverse design for more flexible installation

l  Matte surface treatment for excellent anti-glare performance

l  PSWG compliant, offering strong system compatibility

(Contact us for a quote)



G150XG01 V3 Functional Block Diagram

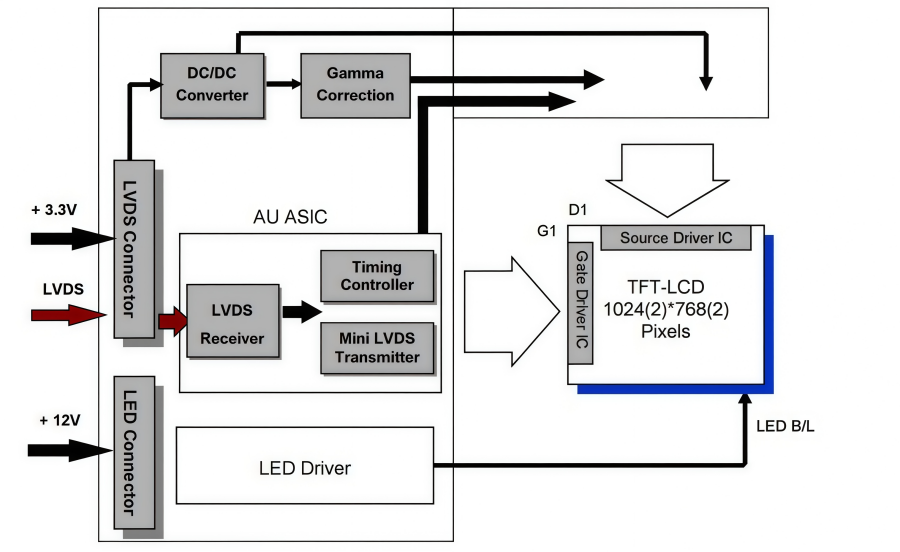

The following diagram shows the functional block of the 15 inch color TFT/LCD module:

 AUO G150XG01 V3 15’’ Industrial LCD Display Overview

G150XG01 V3 Common Industrial Applications

The G150XG01 V3 TFT-LCD display module is widely used in various industrial applications. You will learn about its typical applications in industrial automation, human-machine interfaces (HMI), CNC equipment, and other related fields.



1. Industrial Automation Control Systems

The G150XG01 V3 is widely used in industrial automation production lines for human-machine interaction and status monitoring, providing a stable visual interface suitable for long-term continuous operation.

l  PLC control cabinets

l  Production line monitoring terminals

l  Automated equipment control panels



2. Human-Machine Interface (HMI) Devices

As a core HMI display, this panel is used for parameter setting, process control, and alarm information display, offering strong stability and compatibility.

l  Industrial touch control panels

l  Equipment control terminals

l  Embedded HMI systems



3. CNC (Computer Numerical Control) Systems

In CNC equipment, the display is used for machining parameter visualization and command input, ensuring process visibility and high-precision control.

l  CNC milling machine control panels

l  Lathe operation interfaces



4. Test and Measurement Equipment

Suitable for various testing instruments and inspection systems, providing clear and stable data visualization to meet high-precision industrial measurement requirements.

l  Signal analyzers

l  Environmental testing equipment

l  Electrical measurement instruments



5. Transportation and Infrastructure Monitoring Systems

Used in traffic control and infrastructure monitoring systems to enable real-time data display and status monitoring, improving operational efficiency and safety.

l  Traffic signal control systems

l  Smart parking terminals

(Contact us for a quote)



G150XG01 V3 Disassembly and Replacement

In the maintenance of industrial equipment, the disassembly and replacement of the G150XG01 V3 is a common procedure. The following are the specific operational guidelines:



Disassembly Step-by-Step

For the typical installation structure of the G150XG01 V3, the following steps are recommended:



Step 1: Remove mounting brackets

Unscrew the four corner screws on the chassis or HMI housing. Some enclosures use side clamps, which may also need loosening.



Step 2: Disconnect LVDS cable

Release the LVDS connector latch (20-pin or 30-pin). Do not pull the cable directly to avoid damage.



Step 3: Disconnect backlight power

Unplug the backlight cable (CCFL: BHR-03VS-1 / LED: 6-pin). Avoid contact with CCFL high-voltage side.



Step 4: Remove panel

Lift the panel vertically, taking care to avoid chassis edges and prevent glass scratches.



Handling and Installation of New Panel

When replacing with a new panel, pay attention to the following key points:

l  Mechanical & electrical compatibility: Ensure interface, voltage, and signal compatibility, and confirm identical mounting dimensions.

l  Gasket inspection: Check the dust-proof sealing strip; replace with foam tape if aged to maintain IP protection rating.

l  Alignment calibration: Ensure the active display area aligns precisely with the chassis cutout to avoid image obstruction caused by bezel misalignment.

l  Power-on test: Before fully tightening screws, perform a trial power-on to check for abnormal display issues (e.g., flickering, white screen, or backlight failure) and verify correct recognition of the 1024×768 resolution.
