Innolux G104X1- L04 is a 10.4’’ TFT Liquid Crystal Display module with LED backlight unit and 30-pin-and-1ch LVDS interface. This product supports 1024 x 768 XGA format and can display true 16.2M colors (6-bits colors with FRC). The converter module for the LED backlight is built-in.
This article aims to provide a detailed overview of the G104X1-L04, highlighting its key specifications, features, and practical applications. We will help you grasp the essential information for this LCD panel.

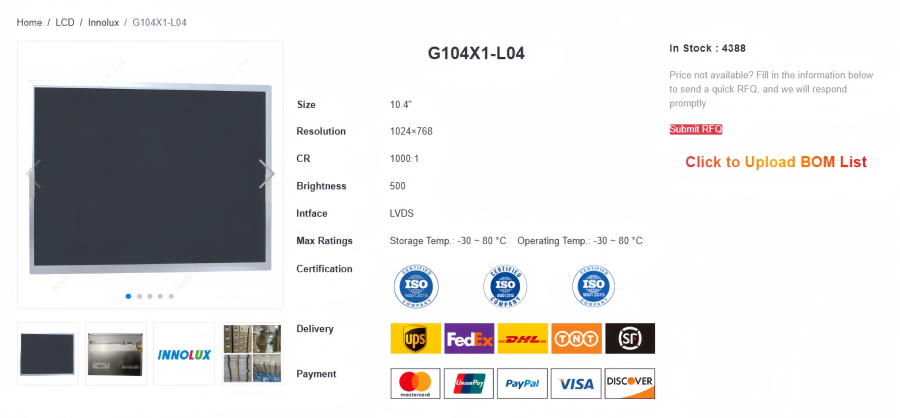

G104X1-L04 Key Specs
In this section, we will introduce the specifications of the G104X1-L04 to help you quickly understand its core performance and technical features, including display resolution, color performance, interface type, and backlight configuration, making it easier for engineers to select and apply.
Parameter | Value |
Brand | |
Model | G104X1-L04 |
Size | 10.4" |
Composition | LCM |
Resolution | 1024(RGB)×768, XGA 123PPI |
Luminance | 500 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewangle | 88/88/88/88 |
Color Depth | 262K/16.2M 55% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
Active Area | 215.4(W)×161.8(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 430±50g |
Outline Size | 225.5 × 176.3 × 9.2 (H×V×D) |
Max Ratings | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
Refer to G104X1-L04 Datasheet PDF
G104X1-L04 Technical Features
Next, we will focus on analyzing the technical features of the G104X1-L04 display panel to help readers gain a deeper understanding of its performance advantages.
l XGA Resolution (1024 × 768 pixels): The standard XGA resolution offers a balanced combination of clarity and compatibility, making it widely applicable across industrial systems, embedded devices, and legacy equipment.
l Ultra-High Contrast Ratio (1000:1): The high contrast ratio delivers deeper blacks and brighter whites, enhancing overall image clarity and detail.
l DE (Data Enable) Only Mode: Supporting DE-only mode simplifies the timing control design, reducing system complexity and improving integration efficiency for engineers.
l 180-Degree Rotation Display Option: The module supports a 180-degree rotation feature, providing greater flexibility for installation in various system designs and mounting orientations.
l Replaceable LED Light Bar: The backlight system features a replaceable LED light bar, which simplifies maintenance and extends the overall lifespan of the display module.
G104X1-L04 Limitations
In this section, we will briefly analyze the limitations of the G104X1-L04, including constraints across various aspects.
l Relatively Limited Resolution: It may be insufficient in scenarios with current high-resolution display requirements (such as Full HD and above).
l Relatively High Power Consumption: Due to the use of a high-brightness backlight design, it may impose certain power consumption pressure in devices that operate for long periods.
l Limited Interface Compatibility: It only supports the LVDS interface. For systems using mainstream newer interfaces (such as eDP), additional conversion circuits may be required, increasing design complexity.
G104X1-L04 Block Diagram

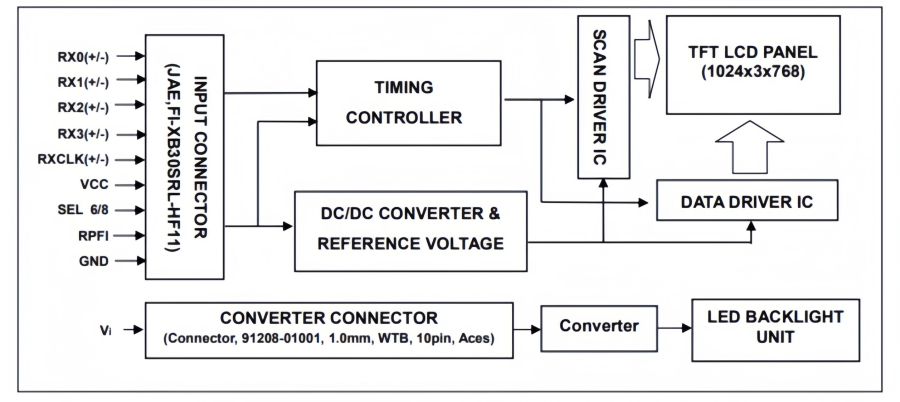

The Input Connector on the left side of the block diagram is the starting point where the display receives commands. Through the LVDS interface (RX0–RX3 and clock signals), the raw data sent from the computer motherboard is transmitted to the central Timing Controller (TCON). Acting like a traffic controller, the TCON precisely manages the data flow, decomposing the video signals and distributing them to the side Scan Driver ICs and the bottom Data Driver ICs.
Stable power support is essential for the operation of the display. The DC/DC Converter in the center of the diagram converts the external power input into various reference voltages required for circuit operation. Meanwhile, at the bottom, the LED Backlight Unit and its dedicated converter operate independently from the image signal processing. This subsystem receives power (Vi) through a 10-pin connector and provides a uniform background light source for the screen.
G104X1-L04 Interface & Pinout
The G104X1-L04 display uses an industry-standard LVDS (Low Voltage Differential Signaling) interface, which not only ensures superior data transmission stability but also features exceptional EMI (Electromagnetic Interference) resistance.
1. LVDS Input Connector Specifications
The main signal input on this panel uses a JAE (or compatible) FI-XB30SRL-HF11 connector.
Number of Pins: 30 Pin
Pitch: 1.0 mm
Signal Type: 1-Channel LVDS
2. Signal Interface Pin Assignment (30-Pin)
Pin No. | Symbol | Description |
1-2 | VCC | Power Supply (+3.3V): Logic power for TCON and driver ICs. |
3-4 | GND | Ground: Digital ground for signal and power return. |
5-12 | RX0± to RX3± | LVDS Differential Data: Carries the RGB pixel data. |
13-14 | GND | Shield Ground: Minimizes signal crosstalk and noise. |
15-16 | RXCLK± | LVDS Clock: Synchronizes data transmission. |
21 | SEL 6/8 | Selection of 6/8-bit: High for 8-bit (16.7M colors), Low for 6-bit (262K colors). |
24 | RPFI | Reverse Scan Control: Used to flip the image 180° horizontally/vertically. |
3. LED Backlight Connector (Converter Connector)
The backlight system is powered through a separate 10-pin interface (Aces 91208-01001 or equivalent):
l VBL (Pin 1-4): Power Input for the LED driver (Typically +12V).
l GND (Pin 5-8): Ground for the backlight circuit.
l ENA (Pin 9): Enable signal (Backlight On/Off).
l PWM (Pin 10): Brightness control via Pulse Width Modulation.
G104X1-L04 LCD for Industrial Applications
In this part, we will introduce the advantages and applicable scenarios of the G104X1-L04 LCD screen in industrial applications, helping engineers evaluate its practicality in industrial settings.
1. Industrial Control Panels
The high brightness and wide viewing angle of the G104X1-L04 make it ideal for industrial control panels, ensuring operators can clearly read the screen under various lighting conditions.
l Factory automation control cabinets
l Production line monitoring terminals
l Energy management systems
2. Instrument and Meter Displays
With stable display performance and fast response time, this LCD module is suitable for precision instruments, providing reliable data visualization.
l Laboratory analyzers
l Medical monitoring devices
l Electric power meters
3. Human-Machine Interface (HMI) Devices
The G104X1-L04 supports multiple input interfaces and rotation display options, making it easy to integrate with HMI systems for device operation and data interaction.
l Industrial touch screen terminals
l Vending machine control panels
l Smart packaging machine interfaces
4. Transportation Systems
The module’s wide temperature adaptability and durable design make it suitable for transport and outdoor environments, serving for information display and monitoring systems.
l Subway train displays
l Bus stop information boards
l Vehicle monitoring systems
5. Warehousing and Logistics Management
In warehousing and logistics, the G104X1-L04 provides clear display of material information, supporting operators in quick decision-making and process management.
l Automated sorting system screens
l Warehouse management terminals
Precautions
1. Assembly & Handling Precautions
1) Avoid bending, twisting, or applying force to the module.
2) Assemble/install in clean areas to prevent dust/oil damage.
3) Do not press or shock the LCD panel or Backlight.
4) Follow correct power-on sequence to prevent CMOS LSI damage.
5) Avoid connecting/disconnecting I/F connector during operation.
6) Do not disassemble the module.
7) Clean with a soft, dry cloth—no chemicals.
8) Keep moisture away; it can damage the module.
9) Store in specified conditions; high temperature/humidity can deteriorate performance.
10) Below 10ºC, display quality may reduce (slower response, higher backlight start voltage).
11) Avoid long-term static images to prevent image sticking.
2. Safety Precautions
12) Backlight startup voltage ~1000V—risk of electrical shock. Do not disassemble or insert objects.
13) Avoid contact with leaked liquid crystal; wash thoroughly if contact occurs.
14) End-of-life modules are safe under normal use and storage.
