The G190ETN01.4 is a 19.0’’ a-Si TFT-LCD industrial display panel developed by AUO (AU Optronics), featuring an integrated WLED backlight system that provides stable and reliable industrial-grade display performance. The panel uses Color Active Matrix Liquid Crystal Display technology and mainly consists of a TFT-LCD panel, driver circuitry, and a backlight system.
The G190ETN01.4 supports SXGA resolution (1280 × 1024) and can display 16.7 million colors (RGB 6-bit + HiFRC). It uses a dual-channel LVDS interface for signal transmission, meeting the requirements of industrial equipment for stable image display and reliable signal communication.
This article provides an overview of the G190ETN01.4 industrial LCD panel, including its key specifications, display structure and technical features, product advantages, typical industrial applications, and compatible or replacement LCD panel models.

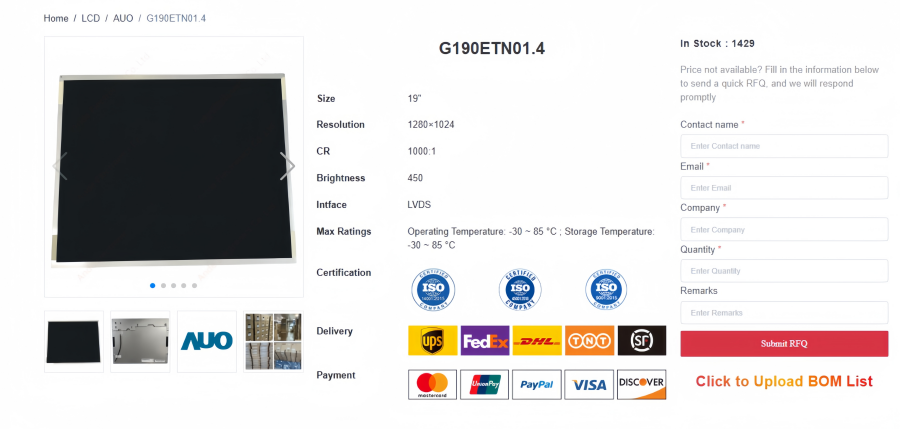

G190ETN01.4 Technical Specifications
When selecting an industrial display panel, it is important to first understand its key technical specifications in order to evaluate performance. The G190ETN01.4 TFT-LCD panel features stable industrial-grade specifications including resolution, brightness, interface type, and other core parameters. The following section provides an overview of the display’s main technical specifications.
Parameter | Value |
Brand | |
Model | G190ETN01.4 |
Size | 19" |
Composition | LCM |
Resolution | 1280(RGB)×1024, SXGA 86PPI |
Luminance | 450 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewangle | 85/85/80/80 |
Color Depth | 16.7M 90% NTSC |
Light Source | WLED [4 strings] , 50K hours , With LED Driver |
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
Active Area | 379.72(W)×304.46(H) mm |
Pixel Format | RGB Vertical Stripe |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 5.0V (Typ.) |
Weight | 1.80Kgs (Typ.) |
Outline Size | 396(H)×324(V)×13.38(D) mm |
Max Ratings | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
Refer to G190ETN01.4 Datasheet PDF
G190ETN01.4 Electrical Interface and System Integration
The G190ETN01.4 uses an industrial-standard electrical interface design, ensuring stable data transmission while simplifying integration with various industrial control systems. It is suitable for embedded devices and industrial display terminals.
1. Interface and Electrical Features
Dual-channel LVDS (30-pin) interface: The panel features a 30-pin dual-channel LVDS interface, supporting SXGA (1280 × 1024) resolution and 8-bit color depth (16.7M colors). The dual-channel design balances data bandwidth, maintaining smooth and flicker-free images even at higher refresh rates.
5V typical input voltage: The logic driver operates at a typical voltage of 5.0V, compatible with most industrial motherboard power standards, reducing the need for additional voltage conversion circuits.
Easy embedded system integration: Compliant with industrial interface standards, the G190ETN01.4 can connect directly to mainstream industrial motherboards such as Mini-ITX, 3.5" SBCs, or embedded systems based on ARM or x86 architectures.
2. Advantages of LVDS in Industrial Displays
Strong EMI resistance: LVDS uses differential signal transmission, which significantly reduces electromagnetic radiation and effectively resists common-mode noise in industrial environments.
Low-power transmission: Compared to traditional TTL interfaces, LVDS maintains high-speed data transmission while consuming less power, making it ideal for long-term operation in industrial equipment.
Stable long-distance transmission: LVDS signals remain stable over long cable runs, suitable for applications where the control board and display are separated, such as industrial cabinets, automation equipment, or ATM terminals.
3. Functional Block Diagram

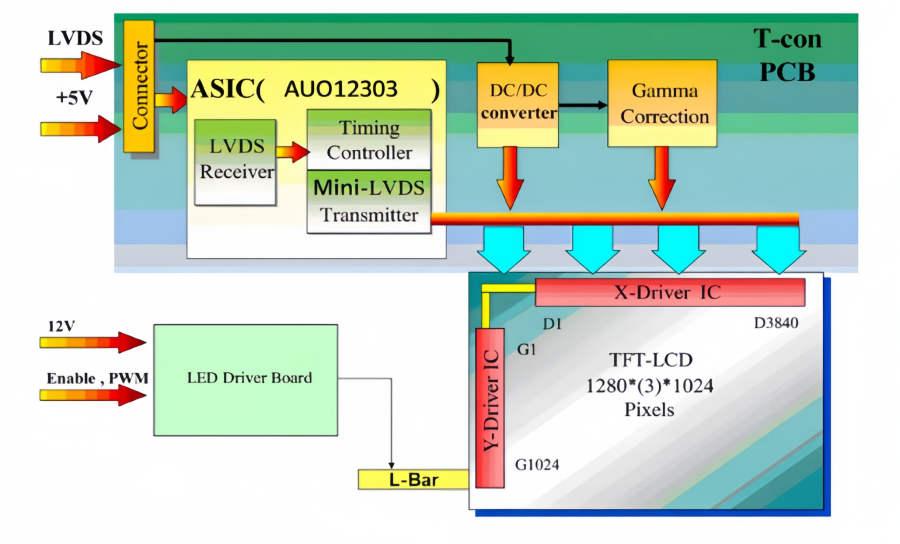

The following diagram shows the functional block of the 19.0 inches wide Color TFT-LCD Module:
G190ETN01.4 Industrial Durability
The G190ETN01.4 not only delivers excellent display performance but is also engineered for extreme industrial environments, offering outstanding durability in backlight lifespan, integrated design, and wide temperature tolerance.
1. Long Backlight Lifespan (50,000 hours)
This LCD panel uses a high-efficiency WLED backlight with a rated lifespan of 50,000 hours, enabling stable 24/7 operation for over 5.7 years. The LED components are carefully selected to ensure consistent brightness and color accuracy over long-term use, avoiding the color shift and decay commonly seen with CCFL backlights.
2. Integrated LED Driver (Inverter-less Design)
The module features a fully integrated LED constant-current driver, eliminating the need for external inverter boards and simplifying system design. This design also removes high-voltage cable hazards, reduces EMI interference, and saves enclosure space, making it ideal for embedded installations.
3. Extreme Wide-Temperature Operation
With an operating temperature range of -30°C to +85°C, the panel can function reliably in both cold outdoor conditions and high-temperature industrial environments. Special LCD processing ensures no motion blur at low temperatures and maintains stable liquid crystal performance at high temperatures.
G190ETN01.4 Application Case Studies
The G190ETN01.4 display panel is widely used in various industrial equipment and embedded systems. This section presents typical case studies to demonstrate its performance and advantages across different industrial environments.
1. Industrial Control Panels
The G190ETN01.4 is commonly used in industrial control cabinets and HMI (Human-Machine Interface) displays, providing operators with real-time equipment status, parameter monitoring, and alarm notifications. Its SXGA resolution and high-brightness WLED backlight ensure clear visibility even in bright environments.
l CNC machine control panels
l Automated assembly line HMIs
l Industrial robot operation interfaces
2. Automation Equipment
On production lines, packaging machines, or sorting systems, the G190ETN01.4 displays process workflows, output statistics, and alert messages, helping staff adjust operations promptly to maintain stable production.
l Bottled beverage filling line displays
l Electronics assembly line monitoring
l Packaging machine operator panels
3. Test & Measurement Instruments
This panel is suitable for integration into industrial testing equipment, providing precise measurement data and real-time waveform visualization for clear and reliable data presentation.
l Oscilloscope display modules
l Signal analyzer screens
l Environmental monitoring instrument interfaces
4. Mobile & Remote Industrial Systems
Thanks to its vibration-resistant design and wide temperature tolerance, the G190ETN01.4 can be used in mobile industrial equipment or remote monitoring terminals, maintaining stable display even in bumpy or high-temperature conditions.
l Forklift control console displays
l Mobile inspection vehicle terminals
l Remote industrial control cabinets
Handling Precautions
1) Since front polarizer is easily damaged, please be cautious and not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.
5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on hard surface.
6) To avoid ESD (Electro Static Discharde) damage, be sure to ground yourself before handlingTFT-LCD Module.
7) Do not open nor modify the module assembly.
8) Do not press the reflector sheet at the back of the module to any direction.
9) When placing a module back into the container, do not press the center of the LED light bar edge. Press both ends gently to avoid damage.
10) When inserting or removing the signal interface connector, do not rotate or tilt the connector.
11) Do not twist or bend the TFT-LCD module. Ensure the product design prevents external force from end users.
12) Some materials in the module are non-flammable rated. The power supply must comply with Limited Power Source (IEC60950-1 / UL60950-1) or equivalent exemption.
13) High-temperature continuous operation may accelerate lamp aging and reduce brightness.
14) Displaying a fixed image for long periods may cause image sticking. Use a screen saver or change content periodically.
