The G190EG02 V1 is a 19.0-inch diagonal a-Si TFT-LCD display panel manufactured by AUO, designed for high-quality visual performance in a wide range of applications. Featuring a Color Active Matrix Liquid Crystal Display (TFT-LCD) structure, this panel integrates a high-resolution TFT-LCD panel, an advanced driver circuit, and a reliable backlight system. With a screen resolution of SXGA (1280 × 1024) and support for 16.7 million colors, the G190EG02 V1 ensures clear, vivid images and smooth color transitions.
The display is engineered to accept 2-channel LVDS input signals, ensuring seamless compatibility with modern graphics and computing systems. Its stable performance and versatile interface make it suitable for applications requiring precise visual output, high reliability, and consistent color reproduction. Users can expect efficient integration into various hardware environments.
This article will help professionals better understand the features, applications, and technical advantages of the G190EG02 V1, offering a reliable reference when selecting high-performance TFT-LCD panels for their projects.
G190EG02 V1 Technical Specs
First, we will introduce its core technical specifications in detail, including screen size, resolution, color depth, interface type, and more. This will provide a reference for selection and system integration.
Parameter | Value |
Brand | |
Model | G190EG02 V1 |
Size | 19" |
Composition | LCM |
Resolution | 1280(RGB)×1024, SXGA 86PPI |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 2000:1 (Typ.) (TM) |
Viewangle | 89/89/89/89 |
Color Depth | 16.7M 70% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 380.32(W)×305.06(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 5.0V (Typ.) |
Weight | 1.75Kgs (Typ.) |
Outline Size | 396(H)×324(V) ×18.9(D) mm |
Max Ratings | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
Learn more details: G190EG02 V1 Datasheet PDF
G190EG02 V1 Signal Description
Next, we will cover the G190EG02 V1TFT-LCD module signals, including power, ground, LVDS data, clock, and interface selection pins. Understanding these helps engineers make accurate connections and control designs.
1–6. RxOIN0–2 / RxOIN2+: LVDS differential data inputs (Odd data). Pin 5–6 also carry H-Sync, V-Sync, and DSPTMG signals.
7, 14, 17, 24, 25, 27. VSS: Power Ground.
8–9. RxOCLKIN±: LVDS differential clock input (Odd clock).
10–11. RxOIN3±: LVDS differential data input (Odd data).
12–13. RxEIN0±: LVDS differential data input (Even data).
15–16. RxEIN1±: LVDS differential data input (Even data).
18–19. RxEIN2±: LVDS differential data input (Even data).
20–21. RxECLKIN±: LVDS differential clock input (Even clock).
22–23. RxEIN3±: LVDS differential data input (Even data).
26. NC: Do not connect (for AUO test).
28–30. VCC: +5.0V Power Supply.
G190EG02 V1 Pros and Cons
When choosing a display panel, it is important to understand its pros and cons. The G190EG02 V1 has several advantages, but it also has some limitations. This section analyzes the main strengths and potential drawbacks of the G190EG02 V1 in detail.
Pros
l 1280×1024 (SXGA) high resolution
l Full viewing angle display
l Built-in LED driver
l Integrated WLED backlight system
l 300 cd/m² high brightness & 2000:1 high contrast ratio
l Matte panel surface
l 70% NTSC color gamut, 92% sRGB coverage
l WLED backlight lifespan ≥50,000 hours
l LVDS (2-channel) interface
l Vibration resistance up to 1.5G (14.7 m/s²)
l Slim and compact design
l Total power consumption only 30.6W
l Wide operating and storage temperature range
l RoHS compliant
l G190EG02 V1 Functional Block Diagram
Cons
l No touch function; direct touch operation is not possible.
l Limited visibility in bright environments.
l Compatibility may be restricted with some systems.
l Not suitable for ultra-portable applications.

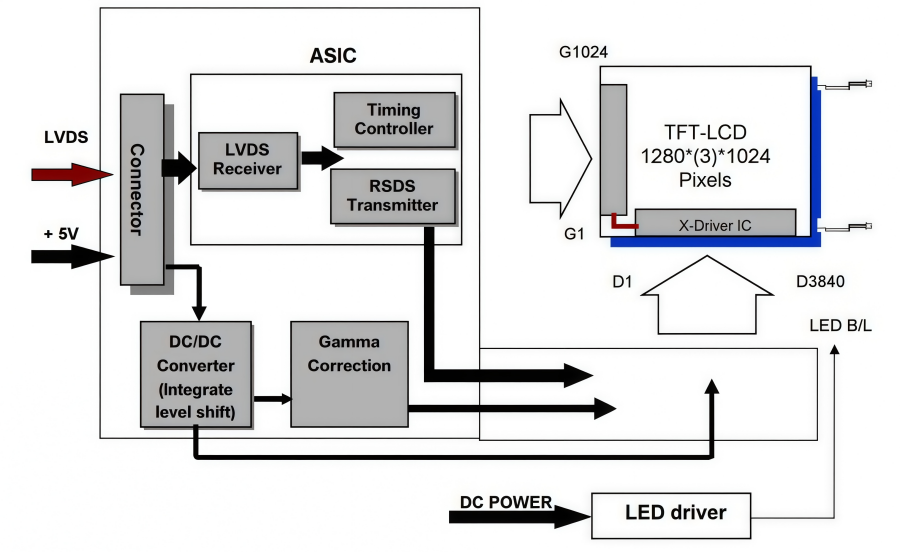

G190EG02 V1 Functional Block Diagram
The following diagram shows the functional block of the G190EG02 V1 Color TFT-LCD Module:
The G190EG02 V1 functional block diagram shows its main signal and power flow. The panel receives external input via the LVDS interface and is powered by a +5V supply. LVDS signals are first processed by the LVDS receiver, then sent to the timing controller and RSDS transmitter to ensure correct TFT-LCD pixel refresh.
Inside the panel, a DC/DC converter handles voltage conversion and level adjustment. A Gamma correction circuit optimizes image brightness and color. For backlight, the G190EG02 V1 uses an LED system powered by an external LED driver, which provides DC power and drive signals. Control signals pass through the panel’s ASIC chip to the X-Driver IC for precise pixel control. Backlight brightness and drive power are managed by Gamma correction and the DC/DC converter, keeping the display stable under high brightness and low power conditions.
G190EG02 V1 Applications
The G190EG02 V1 offers high stability, wide viewing angles, and steady brightness. It fits many uses, such as industrial control, medical devices, POS/ATM terminals, and security monitors. In all these applications, it delivers a clear and stable display.
1. Industrial control
The G190EG02 V1 is very suitable for industrial automation, HMI panels, and production monitoring systems. Its high resolution shows data, flow charts, and alarm messages clearly. The wide viewing angle allows operators to read the screen from different positions. The LED backlight gives a longer lifetime and supports 24/7 factory use.
2. Medical equipment
In medical use, clear images and accurate colors are very important. The Gamma correction and stable brightness of the G190EG02 V1 help keep image details clear. It fits patient monitors, lab analysis devices, and nurse workstations. The stable LED backlight helps medical staff get information quickly and correctly.
3. POS / ATM terminals
POS and ATM systems must handle long working hours, frequent use, and different lighting conditions. The G190EG02 V1 can show more transaction information and improve the user experience. Its wide viewing angle and even brightness make the screen easy to read at the counter or in outdoor ATM machines.
4. Surveillance and security systems
In monitoring centers or security systems, screens must run for long hours and keep stable image quality. The LED backlight and uniform brightness of the G190EG02 V1 ensure smooth video display. It is suitable for security walls, traffic monitoring, and building security displays. It can show important details such as plates, human shapes, and motion.
Handling Precautions
1. Avoid scratching the front polarizer; it is easily damaged.
2. Turn off the power before connecting or disconnecting the input.
3. Wipe off water immediately to prevent spots or discoloration.
4. Clean the panel with soft cloth or absorbent cotton.
5. Handle carefully; glass panel may break if dropped or bumped.
6. Prevent static discharge; ground yourself when handling CMOS LSI.
7. Do not open or modify the module.
8. Avoid pressing the reflector sheet at the back.
9. When returning the module to its slot, press gently at LED light bar ends, not the center.
10. Do not rotate or tilt the signal interface connector during insertion/removal.
11. Do not twist or bend the module after installation; design enclosure to avoid stress.
12. LCD uses limited non-flammable materials; use power supply per Limited Power Source standards (IEC60950/UL1950).
