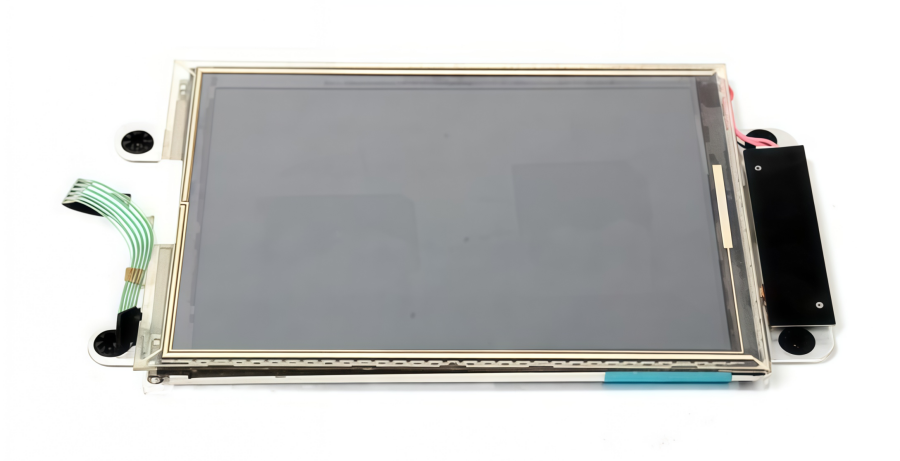

The NL8060BC26-17 is an active-matrix color LCD module based on TFT (Thin Film Transistor) technology. Each signal electrode is equipped with an amorphous silicon TFT, working together with an integrated driving circuit and backlight system to deliver stable and reliable image performance. Designed as a complete display solution, the module features a built-in backlight for consistent illumination.
With a 26 cm diagonal display area and a resolution of 800 × 600 pixels, the NL8060BC26-17 is capable of displaying up to 262,144 colors simultaneously, ensuring clear visuals and accurate color reproduction. The backlight uses long-life lamps that are replaceable, making maintenance more convenient and extending the overall service life of the module.
In addition, the viewing direction can be configured for either top or bottom view by adjusting the scan direction, providing greater flexibility for different installation and usage scenarios.
NL8060BC26-17 Key Specs
This section highlights the key specifications of the NL8060BC26-17, providing a quick overview of its core display parameters, electrical characteristics, and performance features.
Parameter | Value |
Brand | NLT |
Model | NL8060BC26-17 |
Size | 10.4" |
Composition | LCM |
Resolution | 800(RGB)×600, SVGA 96PPI |
Luminance | 280 cd/m² (Typ.) |
Contrast Ratio | 300:1 (Typ.) (TM) |
Viewangle | 50/50/35/45 |
Color Depth | 262K 43% NTSC |
Light Source | 2 pcs CCFL , Without Driver |
Interface Type | CMOS (1 ch, 6-bit) , 41 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 215.4(W)×161.8(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
Weight | 520/550g (Typ./Max.) |
Outline Size | 243(W)×185.1(H) ×11.5(D) mm |
Max Ratings | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
Learn more details: NL8060BC26-17 Datasheet PDF
NL8060BC26-17 Structure and Functions
A color TFT (thin film transistor) LCD module consists of a TFT liquid crystal panel, driver LSIs for controlling the TFT array, and a backlight unit. The TFT panel is formed by placing liquid crystal material between a TFT array glass substrate and a color filter glass substrate. Once the driver LSIs are mounted and connected, the backlight assembly is attached to the rear of the panel.
RGB (red, green, and blue) signals from the source system are processed and converted into active-matrix drive signals by the internal signal processor, then delivered to the driver LSIs to control each TFT pixel. Each TFT cell functions as an electro-optical switch, adjusting the amount of backlight passing through the red, green, and blue sub-pixels. By precisely controlling light transmission across the pixel array, the module produces clear and accurate color images.
NL8060BC26-17 Technical Features
After reviewing the key specifications and structure, we will focus on the main features of the NL8060BC26-17 LCD display, helping readers quickly understand the core advantages of this LCD module in practical applications.
• High luminance (280 cd/m2, typ.)
• Wide viewing angle (with retardation film)
• Low reflection
• Reversible scan direction
• 6-bit digital RGB signals
• Data enable (DE) function
• Edge-type backlight with two long-filetime lamps (one lamp holder)
• Replaceable lamp holder
• Recommendation inverter for a backlight: Part No. 104PWBR1
NL8060BC26-17 Use Cases
Due to its stable display performance and strong industrial adaptability, the NL8060BC26-17 LCD is widely used in various industrial scenarios. The following will illustrate the advantages of this LCD module in industrial applications, including human–machine interfaces, process control, equipment monitoring, embedded systems, etc.
1. HMI Display Terminals for Industrial Control Systems
The NL8060BC26-17 offers stable display performance, high brightness, and wide viewing angles. It is well suited for HMI displays in industrial control systems. It is used to show equipment status, parameter settings, and alarm information in real time. This helps improve operating efficiency and safety.
l Control panels for industrial automation production lines
l CNC machine operation terminals
l Centralized factory equipment monitoring HMI terminals
2. Process Control Systems
In process control systems, this LCD module clearly displays key process data such as temperature, pressure, and flow rate. It helps operators monitor system status in real time and respond quickly to abnormal conditions.
l Process control displays in chemical production
l Oil and gas pipeline monitoring terminals
l Process flow monitors in the pharmaceutical industry
3. Local Operation and Maintenance Displays for Industrial Equipment
The NL8060BC26-17 can be installed on equipment bodies or inside control cabinets. It supports local operation, maintenance, and debugging. Its resolution and color performance are suitable for menus, status graphics, and maintenance information.
l On-board control displays for industrial robots
l Operation panels for automatic packaging machines
4. Industrial Monitoring and Inspection Systems
In industrial monitoring and inspection systems, this module is used to display data and graphical interfaces. It can show test results, trend curves, and system operation screens. It is designed for reliable display in continuous operation environments.
l Displays for machine vision inspection systems
l Industrial online inspection instrument terminals
5. Industrial Control Cabinets and Embedded Control Systems
With a moderate size and a mature structure, the NL8060BC26-17 is easy to integrate into industrial control cabinets and embedded control systems. It provides clear and stable visual output and improves overall system usability.
l Monitoring displays for power distribution cabinets
l Industrial embedded control units
l Control interfaces for automated test equipment
Caution
Caution when taking out the module
1) Pick up the pouch only, when removing the module from a carrier box.
Cautions for handling the module
1) Handle carefully to prevent ESD damage.
2) Avoid impact or pressure; the panel and backlight are fragile glass.
3) Clean only with a soft, dry, chemical-free cloth.
4) Do not connect or disconnect cables while powered on.
5) Place the module display-side down on a flat surface.
6) Handle connectors and cables gently; avoid stress.
7) Ensure CLK, Hsync, and Vsync signals remain stable during operation.
8) Mounting screw torque must not exceed 0.294 N·m.
9) Do not push or rub the display surface to avoid scratches.
Cautions regarding atmosphere
1) Avoid condensation or dew conditions.
2) Do not store or operate in high temperature or high humidity environments; use ESD-safe packaging and cool storage.
3) CCFL backlight lifetime decreases significantly at very low temperatures.
4) Avoid operation in strong magnetic fields.
Cautions about module characteristics
1) Avoid displaying fixed patterns for long periods to prevent image sticking.
2) Color shift and non-uniformity may occur at different viewing angles or high temperatures due to the retardation film.
3) Light vertical stripes may appear depending on the display pattern; this is normal.
4) Inverter noise may be heard during brightness control; this is normal and not a defect.
ANDE Electronics: Reliable LCD Display Solutions
In summary, the NL8060BC26-17 LCD features excellent compatibility and strong industrial adaptability, and it has been applied in a variety of industrial scenarios. This LCD module delivers stable and efficient visual performance, supporting the advancement of industrial automation and intelligent systems.
As a professional display supplier, Ande Electronics is committed to providing LCD modules that meet modern application needs.
We offer not only high-quality display products but also reliable technical support and flexible purchasing options. Our experienced engineering team works closely with customers to provide guidance on module selection, integration, and optimization.
Choosing Ande Electronics, then engineers and manufacturers will gain a partner focused on quality, innovation, and efficiency.
