The LCD display industry has seen tremendous advancements in recent years, with each new model pushing the boundaries of technology and performance. Among the latest offerings, the G101UAN01.0 LCD screen stands out for its remarkable technical specifications and versatile applications. This article delves into the technical intricacies of the G101UAN01.0 LCD screen, highlighting why it is a superior choice for various display needs.
Overview of G101UAN01.0

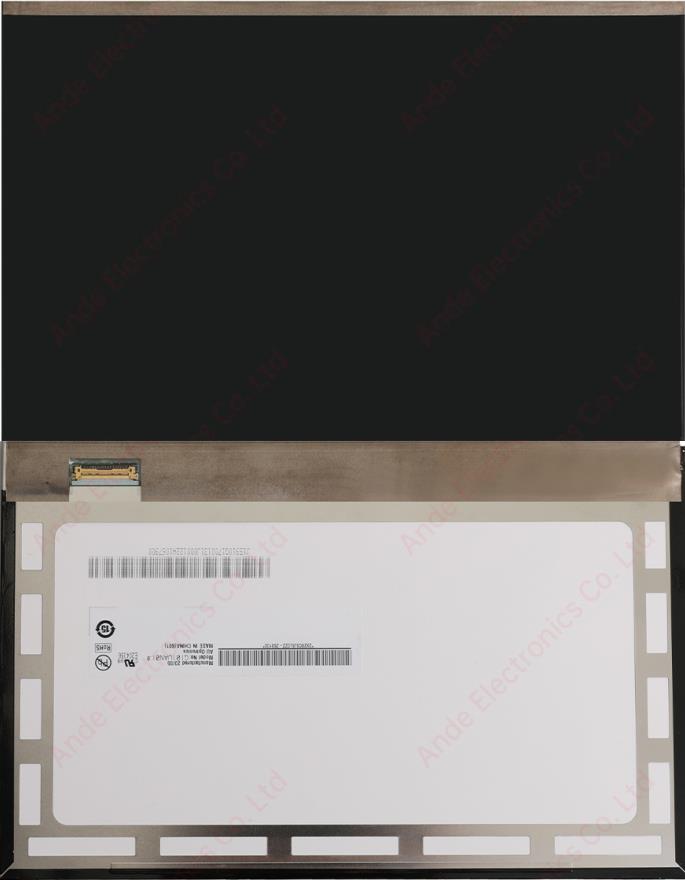

The G101UAN01.0 LCD screen is a 10.1-inch LCD module designed for high-performance display applications. It features an IPS (In-Plane Switching) technology, which provides superior color reproduction, wide viewing angles, and consistent brightness levels. This model is particularly suitable for applications requiring precise color accuracy and clarity, such as medical imaging, industrial control systems, and advanced consumer electronics.
LCD Working Principle

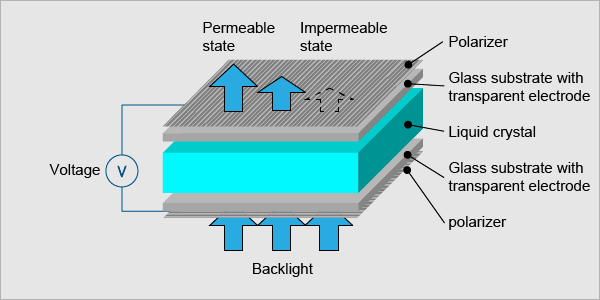

LCD (Liquid Crystal Display) technology works by manipulating light using liquid crystals. An LCD screen consists of several layers, including a backlight, polarizing filters, glass substrates, and liquid crystal material. The backlight provides the necessary illumination. Light from the backlight passes through the first polarizing filter, aligning it in one direction.
The liquid crystal layer, sandwiched between two glass substrates, contains molecules that can twist and align when an electric current is applied. This property allows the liquid crystals to control the light passing through them. When no current is applied, the crystals block the light by twisting it at a right angle to the second polarizing filter. When a current is applied, the crystals align parallel, allowing light to pass through the second polarizer.
Each pixel in an LCD is controlled by a thin-film transistor (TFT) that regulates the electric current applied to the liquid crystals. By varying the current, the crystals adjust the amount of light passing through, creating different shades of color when combined with color filters. This process produces the images and text seen on the display. Also you can send us RFQ.
Key Technical Specifications
1. Display Resolution and Quality:
Resolution: The G101UAN01.0 LCD screen boasts a Full HD resolution of 1920 x 1200 pixels. This high resolution ensures sharp and clear images, making it ideal for applications that require detailed visuals.
Pixel Density: With a pixel density of approximately 224 PPI (pixels per inch), the display delivers crisp and fine details, enhancing the viewing experience.
2. Brightness and Contrast Ratio:
Brightness: The LCD screen offers a luminance of 350 cd/m², making it bright enough to be used in various lighting conditions, including well-lit environments.
Contrast Ratio: A contrast ratio of 800:1 ensures that the display can render deep blacks and bright whites, providing a dynamic range that enhances image quality.
3. Color Performance:
Color Gamut: The G101UAN01.0 supports a color gamut of 72% NTSC, which translates to vibrant and accurate color reproduction.
Color Depth: It supports 16.7 million colors, allowing for a rich and immersive viewing experience.
4. Viewing Angles:
Wide Viewing Angles: Thanks to IPS technology, the G101UAN01.0 offers viewing angles of 89 degrees from all directions (up, down, left, right). This means that the display maintains color consistency and brightness levels even when viewed from extreme angles.
5. Response Time:
Fast Response Time: The display features a response time of 25ms, which is sufficient for most applications, including video playback and interactive interfaces, ensuring smooth transitions and minimal motion blur.
6. Backlight and Power Consumption:
LED Backlight: The G101UAN01.0 is equipped with an LED backlight that ensures even illumination across the display panel. This not only enhances brightness but also contributes to the longevity of the display.
Power Efficiency: The display is designed to be energy-efficient, consuming only 5.5W of power, making it an eco-friendly choice for various applications.
Applications and Use Cases

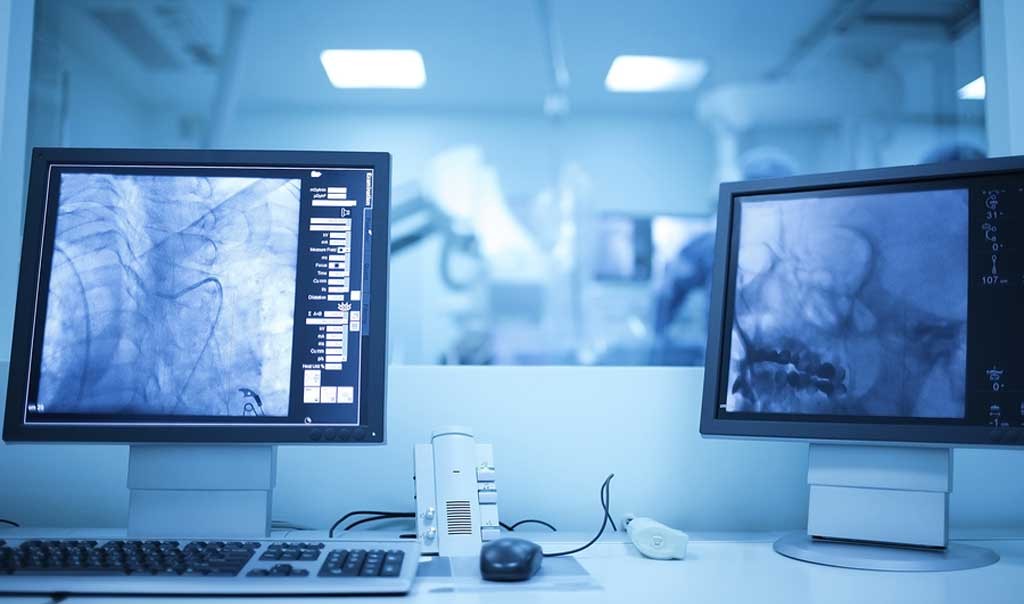

1. Medical Imaging: In medical imaging, the accuracy of displayed colors and details for medical displays is crucial. The G101UAN01.0 medical displays, with its high resolution, excellent color reproduction, and wide viewing angles, is perfect for medical monitors and diagnostic equipment. Doctors and medical professionals can rely on the medical displays to provide precise and clear images for accurate diagnoses.
LCD medical displays have revolutionized the medical field by providing high-resolution, accurate, and reliable visual outputs crucial for diagnostics and treatment. Their applications range from patient monitoring systems and surgical medical displays to diagnostic imaging and electronic medical records. With features like high brightness, wide viewing angles, and excellent color accuracy, LCD medical displays ensure that medical professionals can view critical information clearly and make precise decisions. Their durability and energy efficiency further enhance their suitability for various medical environments, making them indispensable in modern healthcare technology.
2. Industrial Control Systems: Industrial environments often require displays that can perform reliably under various conditions. The G101UAN01.0’s high brightness, wide viewing angles, and robust build make it suitable for industrial control panels and monitoring systems. Its fast response time ensures that real-time data is displayed accurately, which is vital for industrial applications.
LCD displays play a crucial role in industrial control systems, offering clear, precise visuals necessary for monitoring and managing complex processes. Their high resolution and wide viewing angles ensure that critical data is easily readable from various positions, enhancing operational efficiency. The robust build and reliable performance of LCD displays make them ideal for harsh industrial environments. With fast response times and energy efficiency, these displays support real-time data visualization and control, facilitating timely decision-making and improved productivity. Whether for control panels or monitoring stations, LCD displays are indispensable in modern industrial operations.

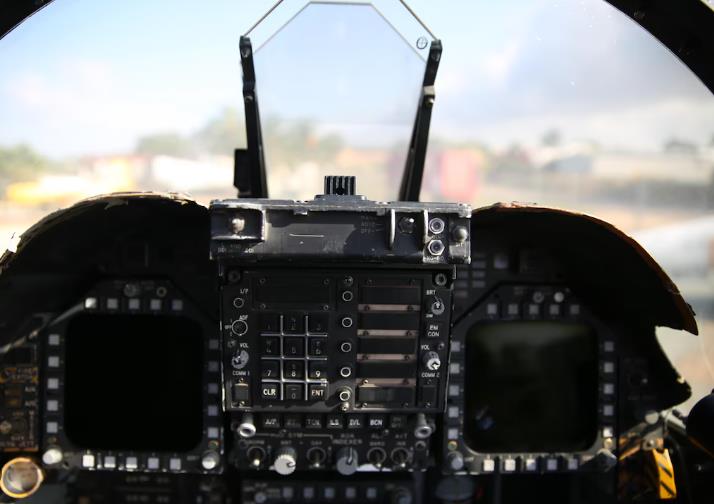

3.Aerospace: LCD flight displays play a critical role in the aerospace industry, enhancing both the functionality and safety of modern aircraft. These flight displays are integral to avionics systems, providing pilots with crucial flight data, navigation charts, and real-time system monitoring. With high resolution and superior color accuracy, LCD flight displays ensure that information is clear and easily readable under various lighting conditions, including bright sunlight and low-light environments.
Additionally, the wide viewing angles and fast response times of flight displays are essential for quick decision-making and situational awareness. In passenger cabins, LCD flight displays are used for in-flight entertainment systems, offering high-quality video and interactive features that enhance the travel experience. The durability and reliability of LCD flight displays make them ideal for the rigorous demands of aerospace applications, where performance and precision are paramount.
4. Military: LCD military displays have become integral to modern military applications due to their reliability, durability, and superior performance. These military displays are utilized in a variety of military settings, including command and control centers, ruggedized field units, and vehicular dashboards. Their high resolution and wide viewing angles of military displays ensure clear visibility of critical information, even in challenging environments. Additionally, the robustness of LCD military displays allows them to withstand extreme temperatures, vibrations, and impacts, making them ideal for harsh military conditions. With advanced features like night vision compatibility and low power consumption, LCD military displays enhance operational efficiency and situational awareness, ultimately contributing to mission success.
5. AI and Smart Applications: LCD displays have become integral to AI and smart applications, enhancing user interaction and data visualization. In AI-driven environments, LCDs are used for real-time data display, such as monitoring system performance, displaying analytics, and controlling smart home devices. Their high resolution and clarity enable precise data representation, which is crucial for applications like AI-powered medical diagnostics, industrial automation, and autonomous vehicles. For instance, in smart homes, LCD panels provide an intuitive interface for managing lighting, security, and climate systems. In autonomous vehicles, they deliver critical information, ensuring safe and efficient operation. Overall, LCD displays play a pivotal role in making AI applications more accessible and user-friendly.
Conclusion
The G101UAN01.0 LCD screen is a testament to the advancements in display technology, offering a combination of high resolution, superior color performance, wide viewing angles, and energy efficiency. Its versatility makes it suitable for a wide range of applications, from medical imaging to industrial control systems and consumer electronics. As technology continues to evolve, displays like the G101UAN01.0 LCD screen set the benchmark for future developments, promising enhanced performance and user experience.
