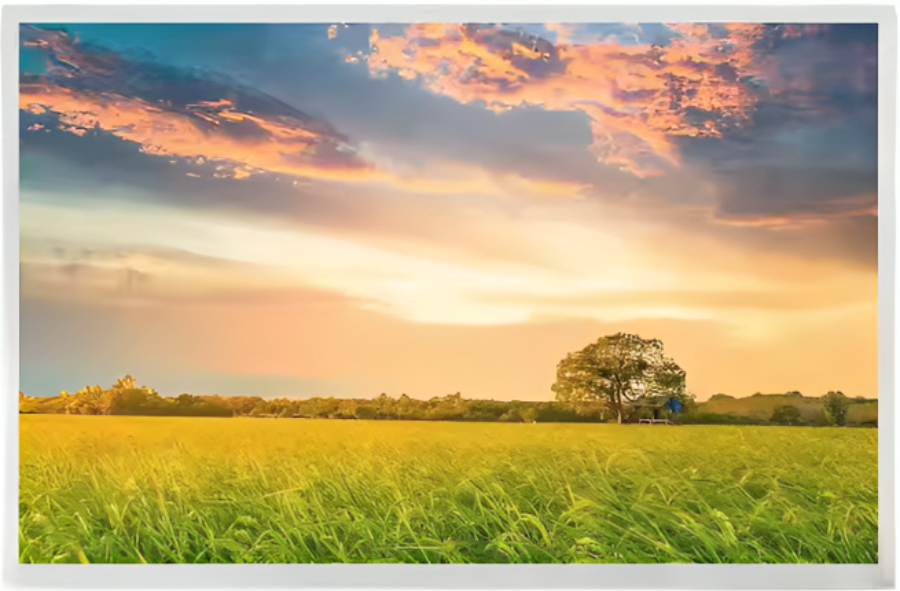

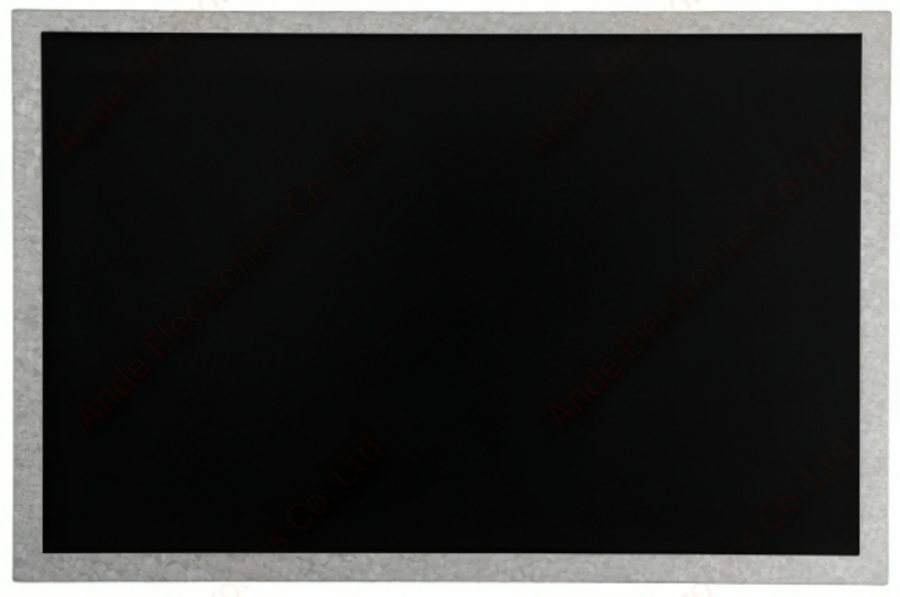

The G121EAN01.3 is a 12.1-inch LCD screen that perfectly meets the needs of industrial-grade drone ground station systems. With features like sunlight-readable visibility, wide viewing angles, and exceptional durability, it provides strong support for effective UAV health management.
At ANDESOURCE, we are committed to providing top-tier LCDs such as the G121EAN01.3, backed by a reliable supply chain, stringent quality control, fast delivery, and best price.
Let’s now explore the essential specifications and features of the G121EAN01.3.
Key Specifications at a Glance
Model Name | |
Screen Size | 12.1 inch |
Pixels H x V | 1280 x 3(RGB) x 800 |
Outline | 283 x 185.1 x 9.95 (H×V×D) mm |
Pixel pitch(mm) | 0.204 x 0.204 |
Treatment | Anti-glare , Hardness 3H |
Luminance | 1500 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (CR≥10) Left/Right/UP/Down |
Response | 25 (Typ.)(Tr+Td) ms |
Display Mode | Normally black |
Color Depth | 262K/16.2M colors |
Backlight | WLED, 50K hours |
Net Weight | 490g (Typ.) |
Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
Voltage Supply | +3.3 V (Typ.) |
Max. Ratings | Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
Why choose G121EAN01.3 for Industrial-Grade Drone Ground Station
12.1-Inch LCD Screen, Perfect for Drone Ground Station Systems
The G121EAN01.3 features a 12.1-inch LCD screen—a size that strikes the perfect balance between providing a large, easy-to-read display and remaining portable. In drone ground station systems, operators need to monitor real-time flight data, such as the drone's model, altitude, speed, and flight path. A larger screen allows operators to view this critical information more clearly, enhancing their ability to make informed decisions quickly.
Industrial-Grade Reliability for Stable Operation
The G121EAN01.3 is built to industrial standards, offering superior stability and reliability. In a drone ground station, the display needs to operate continuously and withstand a variety of challenging environmental conditions. This industrial-grade LCD ensures stable performance in demanding settings, minimizing the risk of failures and downtime.
Sunlight-Readable for Outdoor Use in All Lighting Conditions
Drone ground station systems are often used outdoors, so it’s essential that the LCD screen is sunlight-readable. The G121EAN01.3 has a brightness of up to 1500 nits, making it easy to see even in direct sunlight. This ensures that operators can monitor the drone’s status clearly, no matter the lighting conditions, for safer flight operations.
Wide Viewing Angles for Clear Visibility from Any Position
The G121EAN01.3 offers exceptional wide viewing angles (89/89/89/89), meaning the display remains consistent and clear from virtually any angle. This feature is especially beneficial in collaborative environments where multiple people may need to view the screen at once, ensuring that all team members receive accurate information.
High-Quality Display for Clear, Vivid Imagery
Equipped with an a-Si TFT-LCD module, the G121EAN01.3 delivers high resolution (1280x800) and a high contrast ratio (1000:1), resulting in sharp, vibrant images. This ensures that operators can see flight data and video feeds with stunning clarity. A high-quality display allows for more accurate assessments of drone performance, helping to ensure mission success.
Matte Screen to Minimize Glare
The G121EAN01.3 features a matte screen finish, which helps to reduce glare caused by direct sunlight. This is particularly useful in outdoor environments, where reflections from bright sunlight can interfere with screen visibility. With the matte coating, operators can clearly read the screen’s content even under challenging lighting conditions.
Energy-Efficient WLED Backlighting
The G121EAN01.3 uses WLED backlight technology, which is energy-efficient and extends the display's lifespan. In a drone ground station system that operates for long periods, the low power consumption of WLED backlighting helps reduce overall energy usage, making the system more sustainable and cost-effective over time.
Stable Signal Transmission with LVDS Interface
The G121EAN01.3 is equipped with a 20-pin LVDS interface, which ensures stable signal transmission by minimizing interference. This is crucial in drone ground station systems, where consistent data is necessary for monitoring and controlling the drone’s flight status. Stable signal transmission helps prevent delays and inaccuracies in flight data.
Wide Temperature Range for All Environments
The G121EAN01.3 can operate in extreme temperatures, from -30°C to 85°C, making it highly adaptable to a wide range of environments. Whether the ground station is used in hot, cold, or fluctuating conditions, this display is built to withstand the challenges of harsh outdoor environments, ensuring reliable performance no matter where the mission takes place.
The G121EAN01.3 is the ideal LCD display for industrial-grade drone ground station systems. With its sunlight-readable display, wide viewing angles, industrial-grade reliability, and superior image quality, it is designed to meet the demanding requirements of drone operations. As drone technology continues to evolve, choosing the right LCD is essential for maximizing the performance and reliability of ground station systems.
ANDESOURCE: Your Reliable Provider of Premium LCD Solutions
At ANDESOURCE, we are dedicated to offering top-quality LCDs designed for both industrial and medical sectors. With a strong supply chain, we guarantee quick and dependable delivery for all orders. Our strict quality control procedures ensure that every LCD meets the highest performance standards, even in challenging environments. We are committed to providing genuine products at competitive prices and maintain an ample inventory to handle urgent requests. Our skilled technical team is always available to offer expert advice and develop tailored solutions to meet your specific requirements.
Get in touch with us today – we’re here to assist with all your LCD needs.
